Full Specs & Features
Height : 28' 2"
Width : 30'

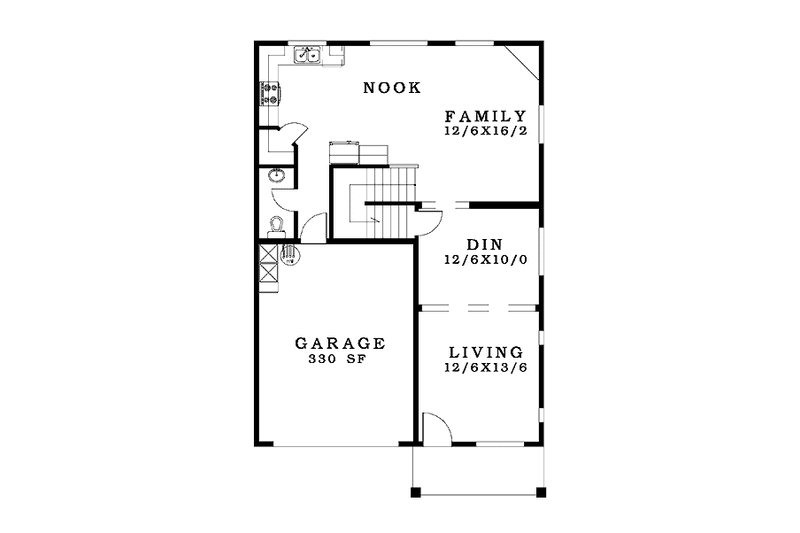

First Floor: 913 sq/ft height 8'
Garage: 330 sq/ft height 8'
Porch: 67 sq/ft

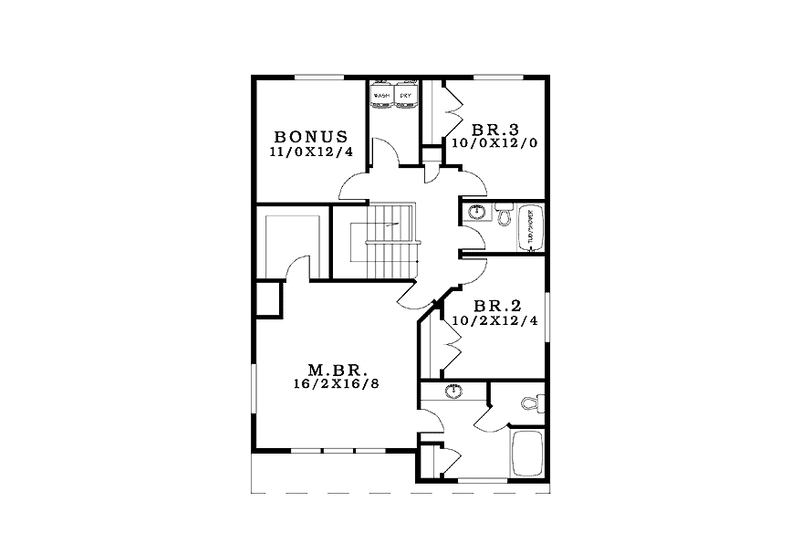

Second Floor: 1120 sq/ft height 8'
Roof Framing : Truss
Roof Type : Composition
Framing : Wood - 2x6
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Unfinished Future Space
125 sq/ft width 10' 2" x depth 12' 4"
120 sq/ft width 10' x depth 12'
Bonus Room - Unfinished:
135 sq/ft width 11' x depth 12' 4"
125 sq/ft width 12' 6" x depth 10'
202 sq/ft width 12' 6" x depth 16' 2"
168 sq/ft width 12' 6" x depth 13' 6"
269 sq/ft width 16' 2" x depth 16' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

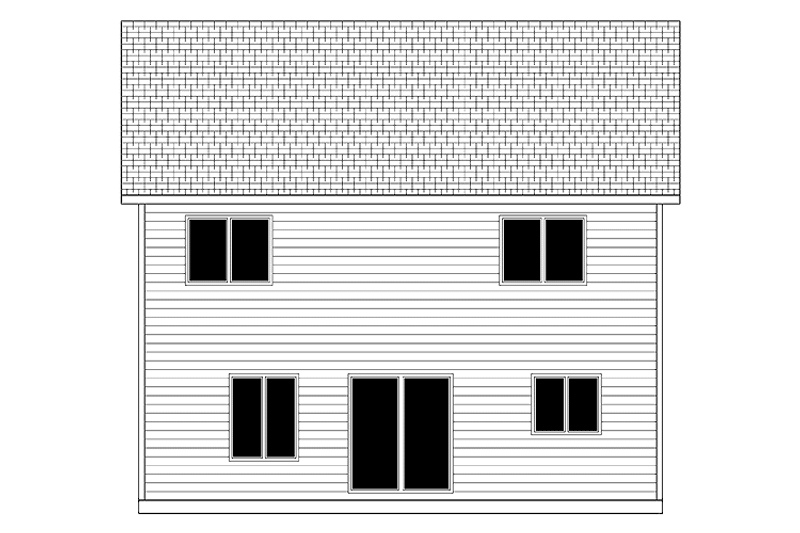

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
|5 Copy Set :
|5 printed plan sets mailed to you.|
|8 Copy Set :
|8 printed plan sets mailed to you.|
|PDF Set :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Reproducible Set :
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|CAD Set :
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Single Set :
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Stem Wall Foundation:
|Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.|
|Right-Reading Reverse :
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets :
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design :
|Receive an overlay sheet with suggested placement of audio and video components.|
|Construction Guide :
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Lighting Design :
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets :
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
