PLAN #17-3302

Key Specs


5144
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Floor Plans


Floor Plan - Other Floor Plan
Traditional Floor Plan - Other Floor Plan Plan #17-3302

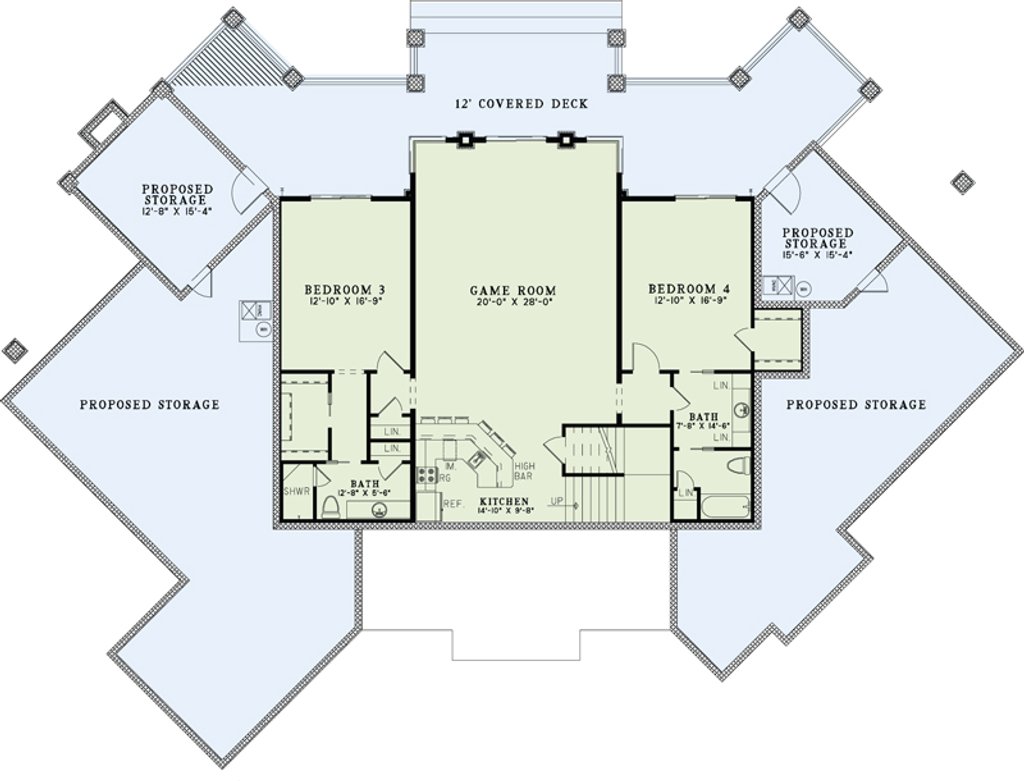

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #17-3302

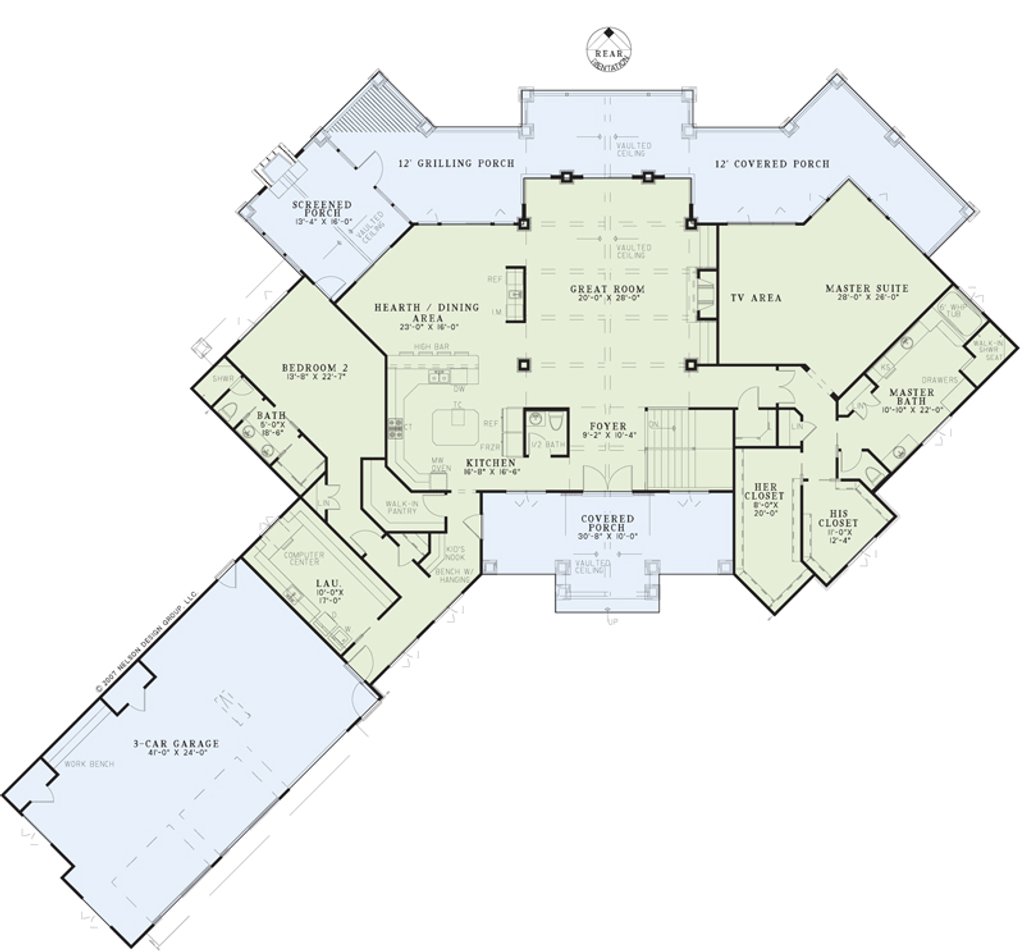

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #17-3302

Full Specs & Features


Dimension
Depth : 107' 4"
Height : 28' 9"
Width : 125'
Area
Basement Living: 1684 sq/ft height 9'
First Floor: 3460 sq/ft height 9'
Garage: 1044 sq/ft height 9'
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch Sunroom
Rooms

Bathroom 2:

63 sq/ft width 12' x depth 5' 4"

Bathroom 3:

67 sq/ft width 12' 8" x depth 5' 4"

Bedroom 2:

308 sq/ft width 13' 8" x depth 22' 7"

Bedroom 3:

213 sq/ft width 12' 10" x depth 16' 8"

Bedroom 4:

213 sq/ft width 12' 10" x depth 16' 8"

Covered Porch:

306 sq/ft width 30' 8" x depth 10'

Game Room:

560 sq/ft width 20' x depth 28'

Garage:

984 sq/ft width 41' x depth 24'

Great Room:

560 sq/ft width 20' x depth 28'

Hearth Room:

368 sq/ft width 23' x depth 16'

Kitchen:

101 sq/ft width 12' 8" x depth 8'

Laundry Room:

170 sq/ft width 10' x depth 17'

Master Bathroom:

238 sq/ft width 10' 10" x depth 22'

Master Closet - Hers:

160 sq/ft width 8' x depth 20'

Master Closet - His:

135 sq/ft width 11' x depth 12' 4"

Master Suite:

728 sq/ft width 28' x depth 26'

Porch - Screened:

306 sq/ft width 30' 8" x depth 10'

What's Included In This Plan Set


  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1057.50
5 printed plan sets mailed to you.
8 Copy Set :
$1170.00
8 printed plan sets mailed to you.
PDF Set :
$1800.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1800.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2767.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$877.50
One printed set for bidding purposes only. Not a legal building set for construction.
