PLAN 17-2908
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

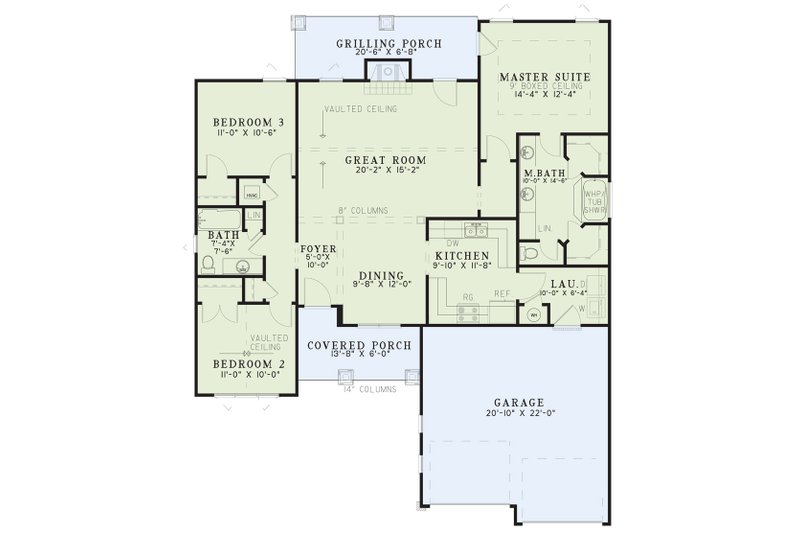

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 56' 10"
Height : 18'
Width : 46' 10"
Area
First Floor: 1485 sq/ft height 8'
Garage: 440 sq/ft
Roof
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
54 sq/ft width 7' 4" x depth 7' 6"
Bedroom 2:
110 sq/ft width 11' x depth 10'
Bedroom 3:
115 sq/ft width 11' x depth 10' 6"
Covered Porch:
82 sq/ft width 13' 8" x depth 6'
Dining Room:
116 sq/ft width 9' 8" x depth 12'
Foyer:
50 sq/ft width 5' x depth 10'
Garage:
458 sq/ft width 20' 10" x depth 22'
Great Room:
305 sq/ft width 20' 2" x depth 15' 2"
Grilling Porch:
136 sq/ft width 20' 6" x depth 6' 8"
Kitchen:
114 sq/ft width 9' 10" x depth 11' 8"
Laundry Room:
63 sq/ft width 10' x depth 6' 4"
Master Bathroom:
145 sq/ft width 10' x depth 14' 6"
Master Suite:
176 sq/ft width 14' 4" x depth 12' 4"
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- Floor Plan(s): Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Exterior Elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Overhead Roof Plan(s): This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
- Cross Section(s): **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Building Section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): These are included for many interior and exterior conditions that require more specific information for their construction.
Plan Set
$700.00
$800.00
$1050.00
$1400.00
Foundation
$0.00
$0.00
$299.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
