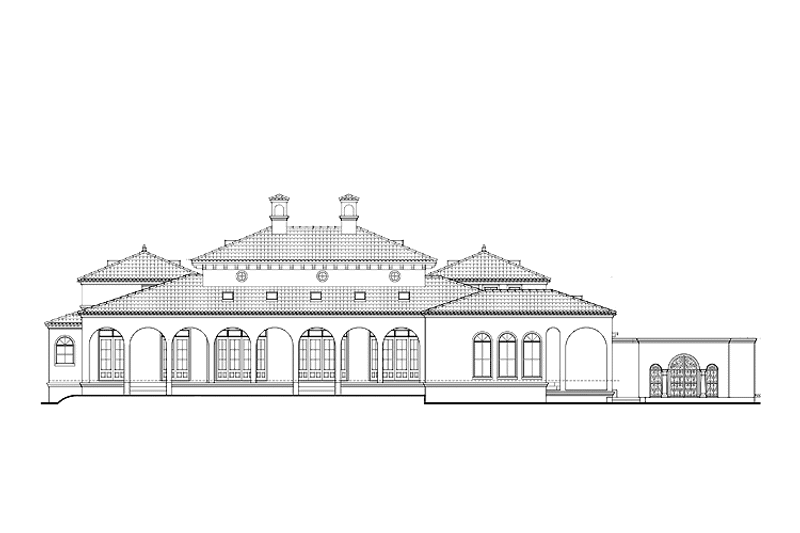

House Plan Design - Mediterranean Exterior - Rear Elevation Plan #76-124

House Plan Design - Mediterranean Floor Plan - Main Floor Plan #76-124

House Plan Design - Mediterranean Floor Plan - Upper Floor Plan #76-124

Key Specs

4638
sq ft

3
Beds

4.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

	Additional Construction Sets $102.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $170.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1041.25

You save $183.75

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Cost to Build Reports Only $4.99 with Code CTBJUNE (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 76-124

Key Specs

4638
sq ft

3
Beds

4.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Designed for the family that values luxury as much as outdoor living, this Spanish Colonial villa employs an inspiring floor plan for a home like no other. Enter by way of an elaborate courtyard to an elongated foyer. To the right, luxurious sleeping quarters include two family suites and a master retreat with a lush bath and vast walk-in closet. The master bedroom and foyer access the coffered-ceiling study, which shares the warmth of its fireplace with the living room. The dining room flows effortlessly into the island kitchen. A rustic exposed-beam ceiling continues into the family room, complete with a corner fireplace. All living areas have veranda access. Upstairs, a game room and loft provide great places to unwind and have fun.

Floor Plans

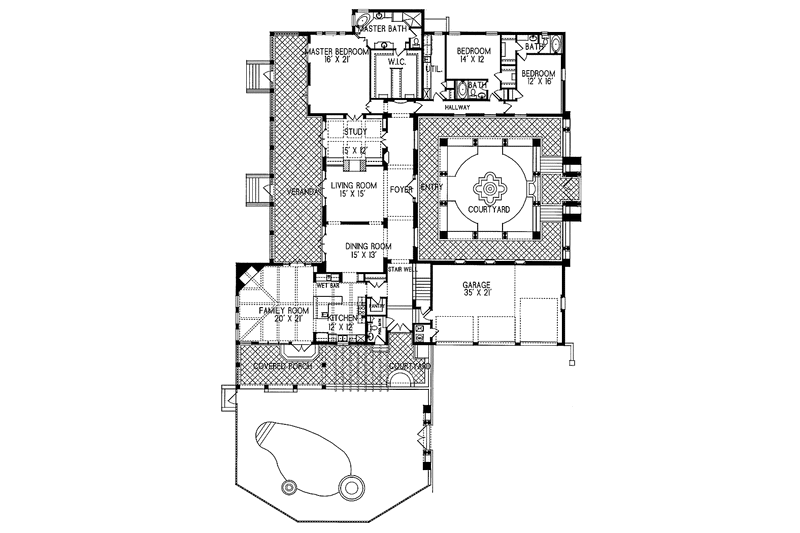

Floor Plan - Main Floor

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

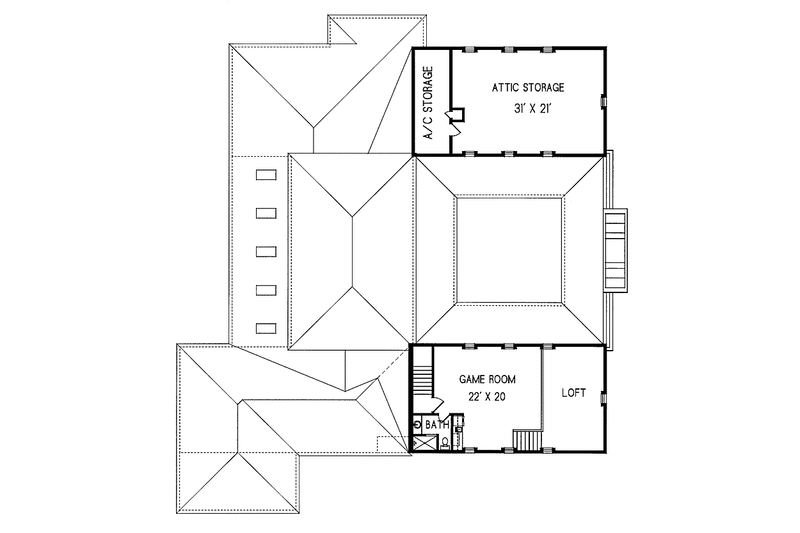

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 91'
Height : 32'
Width : 103'

Area

First Floor: 3788 sq/ft
Second Floor: 850 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom

Kitchen Features

Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Storage Area
Sunroom

Outdoor Spaces

Balcony
Courtyard
Screened Porch

Rooms

3rd BR Closet:

23 sq/ft width 4' 2" x depth 5' 8"

Attic:

702 sq/ft width 31' x depth 22' 8"

Bathroom 2:

34 sq/ft width 5' 8" x depth 6'

Bathroom 3:

55 sq/ft width 10' x depth 5' 6"

Bedroom 2:

187 sq/ft width 12' 8" x depth 14' 10"

Bedroom 2 Closet:

26 sq/ft width 4' 2" x depth 6' 4"

Bedroom 3:

208 sq/ft width 13' x depth 16'

Bedroom 3 Closet:

26 sq/ft width 4' 2" x depth 6' 4"

Dining Room:

192 sq/ft width 12' x depth 16'

Foyer:

102 sq/ft width 8' 6" x depth 12'

Game Room:

506 sq/ft width 22' 4" x depth 22' 8"

Garage:

772 sq/ft width 35' 8" x depth 21' 8"

Garage Storage:

260 sq/ft width 10' x depth 26'

Gathering Room:

286 sq/ft width 22' x depth 13'

Hall Bathroom:

32 sq/ft width 5' x depth 6' 6"

Kitchen:

153 sq/ft width 12' 10" x depth 12'

Living Room:

240 sq/ft width 16' x depth 15'

Master Bathroom:

171 sq/ft width 18' x depth 9' 6"

Master Bedroom:

374 sq/ft width 22' x depth 17'

Master Closet:

174 sq/ft width 12' 4" x depth 14' 2"

Porch - Left:

288 sq/ft width 24' x depth 12'

Study:

208 sq/ft width 16' x depth 13'

Utility Room:

121 sq/ft width 7' 2" x depth 17'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-800-528-8070

Plan Set

Reproducible Set : $1041.25	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
PDF Set : $1632.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1920.15	5 printed plan sets mailed to you.
CAD Set : $2038.30	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : $102.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $170.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
