PLAN 76-122

Home > Style > Mediterranean Home Plans

Key Specs

3560
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Enjoy the warmth and beauty of Santa Fe design in this luxurious family home. Designed with privacy in mind, a loggia splits the art room (thoughtfully providing a full bath) from the beamed-ceiling living areas. The family room and breakfast nook are lined with windows, brightening the U-shaped kitchen. A butler's pantry leads past an interior foyer to the vaulted dining room and living room, separated by a two-way fireplace. To the rear, the master suite is replete with amenities, including a vaulted ceiling, innovative bath and rear-property access. Upstairs, two bedrooms share a full bath and a sitting area, perfect for studying.

Floor Plans

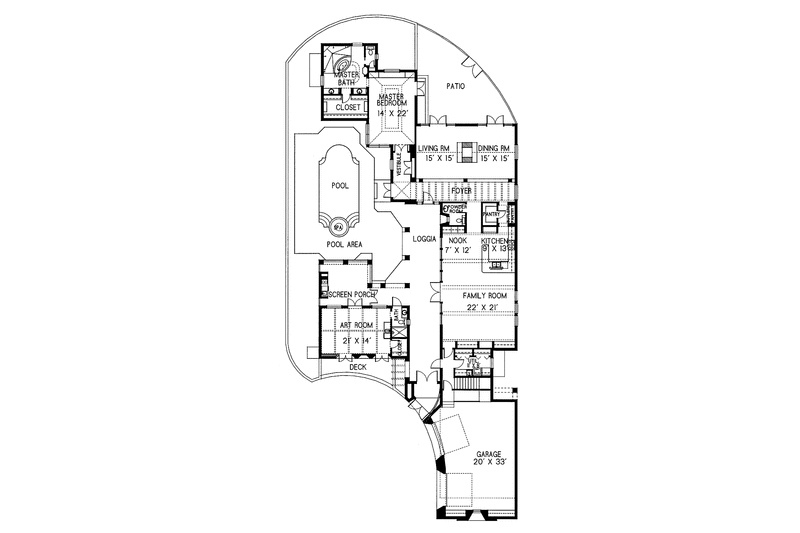

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

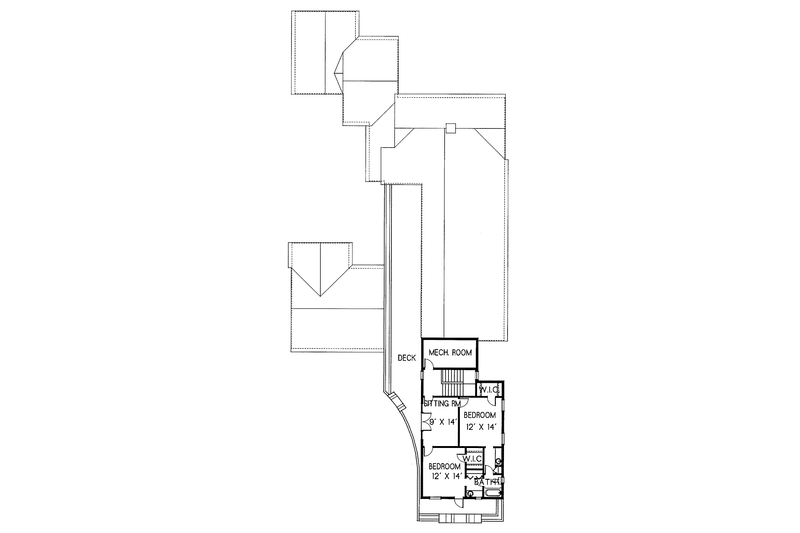

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 145'

Height : 29'

Width : 60'

Area

First Floor: 2810 sq/ft height 10'

Second Floor: 750 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Butler's Pantry

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Loft

Main Floor Laundry

Sunroom

Outdoor Spaces

Balcony

Courtyard

Deck

Grill Deck Sundeck

Screened Porch

Rooms

3rd BR Closet:

34 sq/ft width 4' 8" x depth 7' 4"

Bathroom 2:

49 sq/ft width 3' 6" x depth 14'

Bedroom 2:

174 sq/ft width 14' 6" x depth 12'

Bedroom 2 Closet:

31 sq/ft width 6' 4" x depth 5'

Bedroom 3:

179 sq/ft width 14' 4" x depth 12' 6"

Bedroom 3 Closet:

31 sq/ft width 6' 4" x depth 5'

Breakfast Room:

95 sq/ft width 7' 4" x depth 13'

Deck:

312 sq/ft width 12' x depth 26'

Dining Room:

218 sq/ft width 13' 8" x depth 16'

Foyer:

135 sq/ft width 4' 6" x depth 30'

Garage:

762 sq/ft width 36' 4" x depth 21'

Kitchen:

128 sq/ft width 10' 8" x depth 12'

Living Room:

224 sq/ft width 14' x depth 16'

Master Bathroom:

174 sq/ft width 14' 6" x depth 12'

Master Bedroom:

337 sq/ft width 23' x depth 14' 8"

Master Closet:

99 sq/ft width 13' x depth 7' 8"

Porch - Rear:

202 sq/ft width 12' 8" x depth 16'

Powder Room:

52 sq/ft width 7' 2" x depth 7' 4"

Utility Room:

86 sq/ft width 11' 6" x depth 7' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

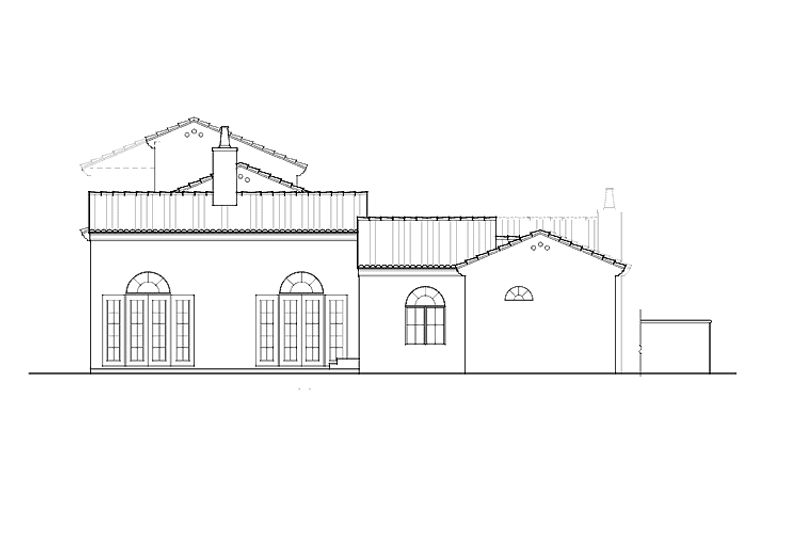

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
