PLAN 76-123

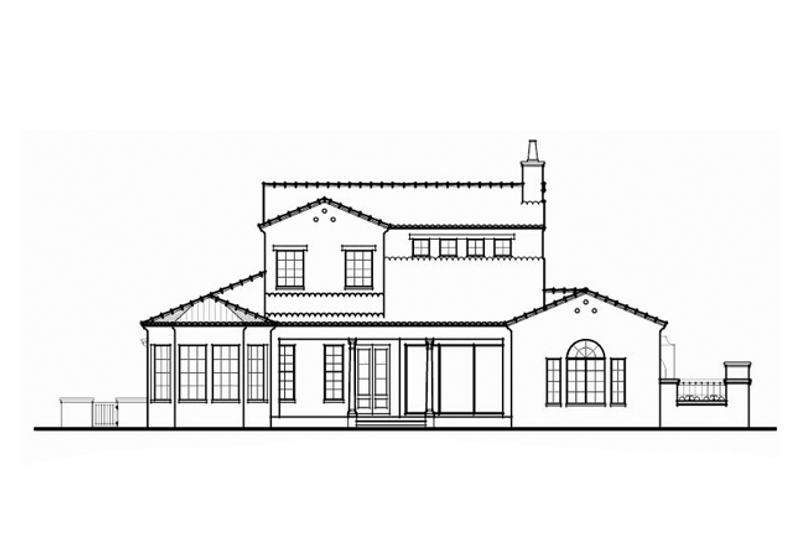

House Plan Design - Mediterranean Exterior - Rear Elevation Plan #76-123

Key Specs

3321
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

	Additional Construction Sets$120.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $200.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1065.00

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 76-123

Key Specs

3321
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Beautiful exterior details and subtle Southwestern style make this home the hallmark of any neighborhood. Choose from three front-deck entries---two sets of French doors or a single foyer door to find a lovely dining room, accessing a side courtyard. Continue to the great room, warmed by a fireplace, or the prominent island kitchen; both areas easily access the wet bar. The rear art room is well-lit for the burgeoning artist. The bayed master suite is a private sanctuary, embellished with a pampering bath and veranda access. Two family bedrooms one to the front of the home and one upstairs---enjoy private baths.

Floor Plans

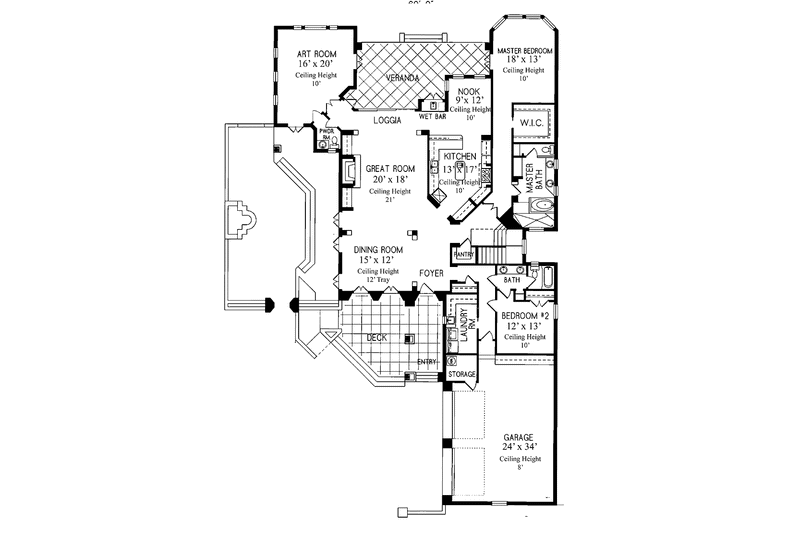

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

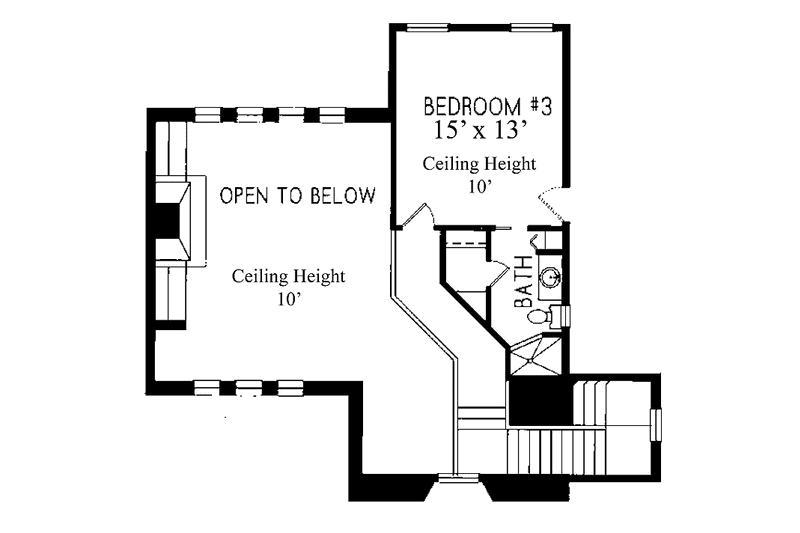

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 104'
Height : 28'
Width : 60'

Area

First Floor: 2828 sq/ft height 10'
Garage: 759 sq/ft
Second Floor: 493 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Deck
Outdoor Fireplace

Rooms

3rd BR Closet:

14 sq/ft width 3' 6" x depth 4' 1"

Bathroom 2:

55 sq/ft width 5' x depth 11'

Bathroom 3:

55 sq/ft width 5' x depth 11'

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 2 Closet:

12 sq/ft width 2' x depth 6'

Bedroom 3:

195 sq/ft width 15' x depth 13'

Bedroom 3 Closet:

12 sq/ft width 2' x depth 6'

Breakfast Room:

108 sq/ft width 9' x depth 12'

Dining Room:

180 sq/ft width 15' x depth 12'

Foyer:

70 sq/ft width 7' x depth 10'

Garage:

816 sq/ft width 24' x depth 34'

Gathering Room:

360 sq/ft width 20' x depth 18'

Hall Bathroom:

28 sq/ft width 5' 4" x depth 5' 4"

Kitchen:

221 sq/ft width 13' x depth 17'

Master Bathroom:

123 sq/ft width 14' 6" x depth 8' 6"

Master Bedroom:

234 sq/ft width 18' x depth 13'

Master Closet:

80 sq/ft width 9' 8" x depth 8' 4"

Porch - Rear:

252 sq/ft width 14' x depth 18'

Storage:

41 sq/ft width 5' 10" x depth 7' 2"

Utility Room:

91 sq/ft width 7' 2" x depth 12' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-800-528-8070

Plan Set

Reproducible Set : $1065.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
PDF Set : $2255.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $2640.00	5 printed plan sets mailed to you.
CAD Set : $2819.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4

Additional Options

Additional Construction Sets : $120.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Questions?
