2846
sq ft
3
Beds
3.5
Baths
1
Floors
2
Garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.Need a quote fast? Call us at 1-800-528-8070.
Plan Description
Looking a bit like a villa resort, this breathtaking Spanish Colonial beauty is designed to pamper every member of the family. Enter from the upper level, or take the garage elevator---great for heavy loads of groceries. The foyer reveals an elegant dining room and unique great room, each with outdoor access. An angled kitchen opens to the bright breakfast nook and is equipped with both a butler's and walk-in pantry. Two bedrooms to the right enjoy private baths. In the left wing, the master suite opens through French doors; past the extra storage closet, the bedroom is bathed in natural light, courtesy of sliding glass doors. An immense walk-in closet and decadent bath with a corner whirlpool tub are wonderful additions. A nearby study is accented with arched windows.
Floor Plans

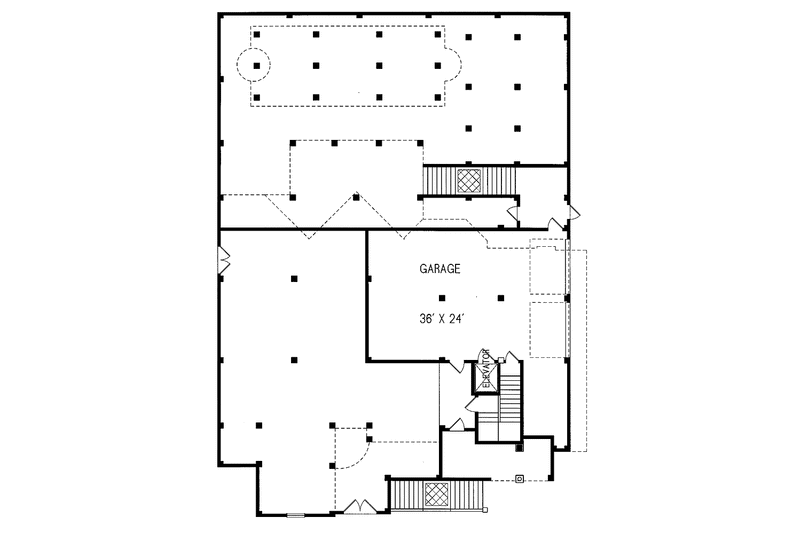

Floor Plan - Lower Floor Plan

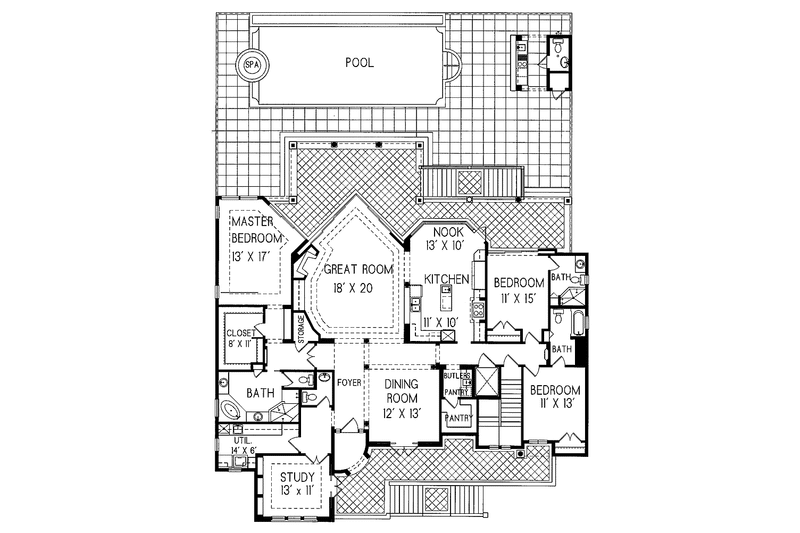

Floor Plan - Main Floor Plan
Full Specs & Features
Height : 29'
Width : 66' 8"
Primary Pitch : 5:12
Roof Type : Tile
Framing : Wood - 2x6
Formal Dining Room
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Main Floor Laundry
Grill Deck Sundeck
3rd BR Closet:
13 sq/ft width 2' 4" x depth 5' 10"
Bathroom 2:
58 sq/ft width 6' 2" x depth 9' 6"
Bathroom 3:
61 sq/ft width 6' 2" x depth 10'
Bedroom 2:
141 sq/ft width 11' x depth 12' 10"
Bedroom 2 Closet:
14 sq/ft width 6' 4" x depth 2' 4"
Bedroom 3:
163 sq/ft width 11' 8" x depth 14'
Bedroom 3 Closet:
14 sq/ft width 6' 4" x depth 2' 4"
Breakfast Room:
70 sq/ft width 13' 6" x depth 5' 3"
Deck:
424 sq/ft width 8' 8" x depth 49'
Dining Room:
192 sq/ft width 13' 6" x depth 14' 3"
Foyer:
64 sq/ft width 11' 2" x depth 5' 9"
Garage:
828 sq/ft width 36' x depth 23'
Gathering Room:
495 sq/ft width 19' 10" x depth 25'
Hall:
width 4' 8" x depth 0"
Kitchen:
137 sq/ft width 13' 6" x depth 10' 2"
Master Bathroom:
126 sq/ft width 14' x depth 9'
Master Bedroom:
250 sq/ft width 12' 10" x depth 19' 6"
Master Closet:
80 sq/ft width 7' 10" x depth 10' 4"
Powder Room:
34 sq/ft width 5' 10" x depth 5' 10"
Study:
139 sq/ft width 12' 10" x depth 10' 10"
Utility Room:
72 sq/ft width 14' x depth 5' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
| Reproducible Set
: $900.00 |
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper. |
| PDF Set
: $1761.30 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set
: $2046.60 |
5 printed plan sets mailed to you. |
| CAD Set
: $2201.40 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Pier: $0.00 |
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Additional Construction Sets
: 108.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Home Furniture Planner
: 17.10 |
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing. |
| Lighting Design
: 90.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Audio Video Design
: 90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
*Alternate Foundations may take time to prepare.
