Full Specs & Features
Height : 31'
Width : 72'

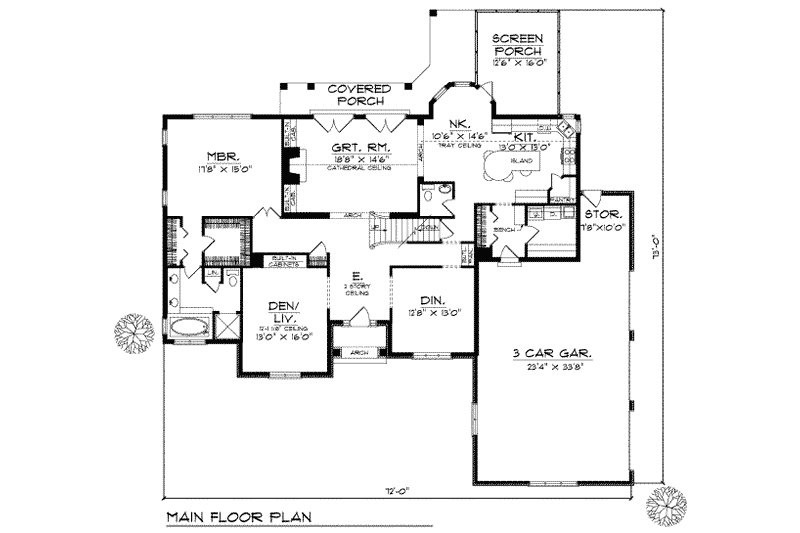

First Floor: 2172 sq/ft

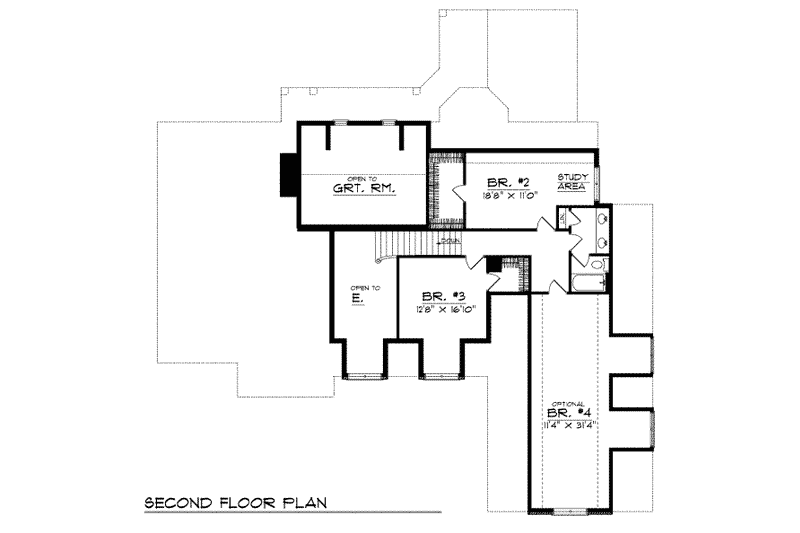

Second Floor: 690 sq/ft
Roof Framing : Truss
Framing : 2"x6"
Walk In Closet
Play Flex Room
Side Entry Garage
Suited For View Lot
152 sq/ft width 10' 6" x depth 14' 6"
208 sq/ft width 13' x depth 16'
164 sq/ft width 12' 8" x depth 13'
785 sq/ft width 23' 4" x depth 33' 8"
76 sq/ft width 7' 8" x depth 10'
270 sq/ft width 18' 8" x depth 14' 6"
169 sq/ft width 13' x depth 13'
265 sq/ft width 17' 8" x depth 15'
Porch - Screened:
200 sq/ft width 12' 6" x depth 16'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

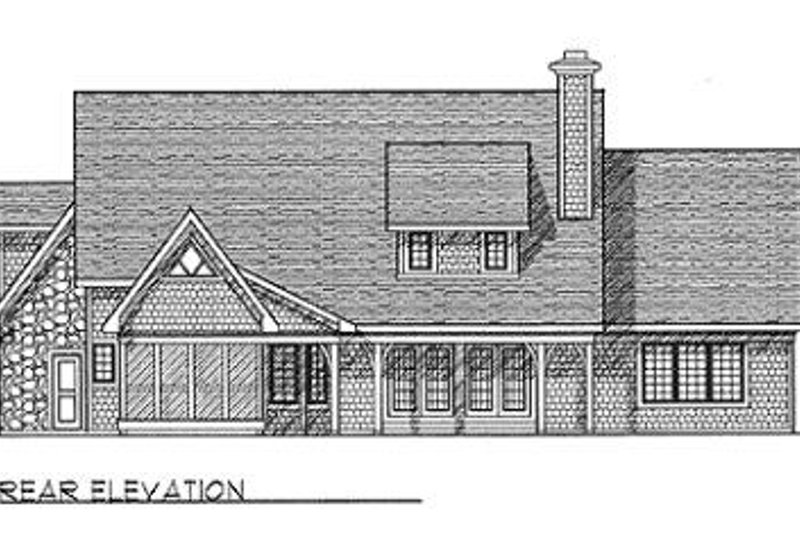

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
