PLAN 456-83
Key Specs
1428
sq ft
3
Beds
2
Baths
2
Floors
1
Garages
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
PLAN 456-83
Key Specs
1428
sq ft
3
Beds
2
Baths
2
Floors
1
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description

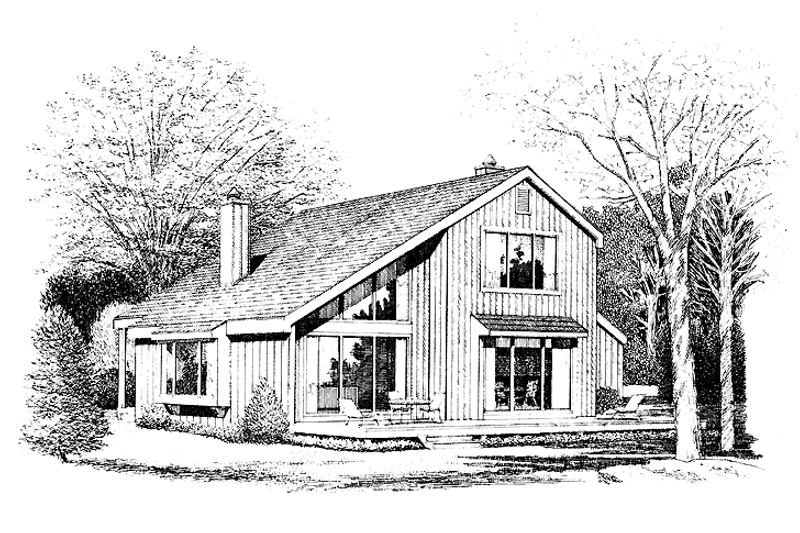

This house employs many exciting features that are designed within an envelope of easy construction, which makes it affordable. The dramatic sloping ceiling of the living room allows heat from the wood-burning stove to circulate into the upstairs bedrooms through high louvers on the inside wall. In hot weather, opening windows on both first and second floors will draw in cooler air. Entry into the two-story foyer is from a covered porch or directly from the garage. The living room features a window seat and a glazed end wall with floor-to-ceiling windows and a glass door to the deck. The kitchen and dining rooms also open to the deck for meals alfresco. One bedroom and a bath complete the first floor. Two good-sized bedrooms are separated by a full bath. On the exterior, asymmetrical rooflines, projecting bays, and siding of vertical woodboard and batten create a harmonious design.
Floor Plans

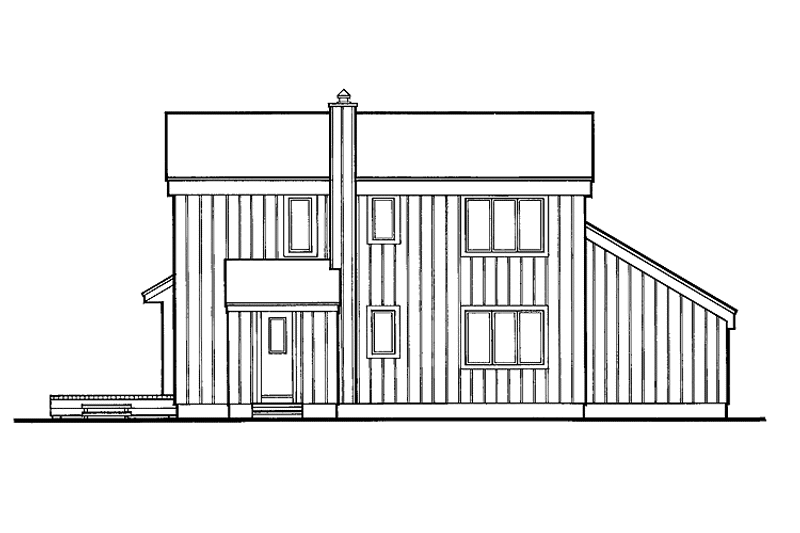

Floor Plan - Other Floor Plan

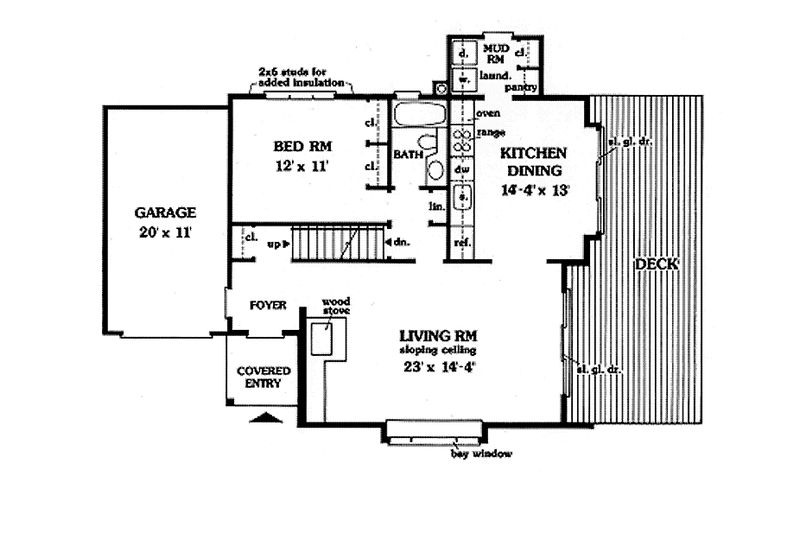

Floor Plan - Main Floor Plan

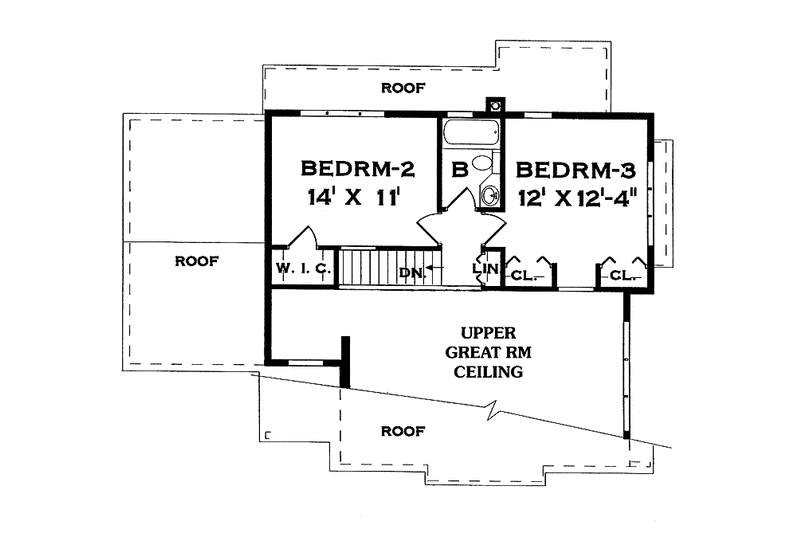

Floor Plan - Upper Floor Plan
Full Specs & Features
Height : 25'
Width : 54'
Second Floor: 465 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x6
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Loft
Open Floor Plan
Deck
3rd BR Closet:
7 sq/ft width 3' 9" x depth 2'
Bathroom 2:
38 sq/ft width 5' x depth 7' 8"
Bedroom 2:
147 sq/ft width 12' x depth 12' 4"
Bedroom 2 Closet:
15 sq/ft width 5' 4" x depth 3'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 3 Closet:
15 sq/ft width 5' 4" x depth 3'
Deck:
360 sq/ft width 30' x depth 12'
Foyer:
36 sq/ft width 6' x depth 6'
Garage:
220 sq/ft width 11' x depth 20'
Gathering Room:
329 sq/ft width 23' x depth 14' 4"
Hall Bathroom:
38 sq/ft width 5' x depth 7' 8"
Hall Closet:
6 sq/ft width 3' x depth 2'
Kitchen:
186 sq/ft width 13' x depth 14' 4"
Laundry Room:
40 sq/ft width 8' x depth 5'
Master Bedroom:
154 sq/ft width 14' x depth 11'
Master Closet:
8 sq/ft width 4' x depth 2'
What's Included In This Plan Set
- Exterior Elevations: showing the front, rear, and side views with standard and alternate material choices; all elevations are usually ¼" scale.
- Foundation plans: separate foundation plans are usually provided for a basement/crawl space, and slab, unless otherwise noted. All are drawn at ¼" scale and include first floor framing information for basement/crawl spaces, including beams, girders, columns and piers. Some plans include walk-out(daylight) basement options as well.
- Floor plans: ¼" scale for each floor, including all room dimensions, door and window sizes and locations, stairways, kitchens, baths, etc. Framing information for stick framed ceiling beams and/or second floor framing is included.
- Cross sections: ¼" scale cut-away views for each distinct area, showing all framing, ceiling details, heights, roof pitches, etc.
- Roof plan: a separate roof plan is usually provided showing all pitches, rafter sizes, valley, hip and ridge locations, and areas of double roof framing.
- Schematic electrical: shows suggested locations for outlets, switches and fixtures on either a separate drawing or directly on the floor plans.
- Kitchen cabinets: schematic drawings of all kitchen cabinets.
- Specifications: a separate 8 page outline specification of most materials, construction methods and techniques, in a format for customizing; for use in obtaining bids and as a contract document.
- Standard details: 2 additional drawing pages filled with standard construction details.
- Energy conservation details: 2 more drawing pages chock full of drawings and ideas on how to build to conserve energy.
- Making changes: finally we include a separate 6 page primer on choosing a contractor and making changes, as virtually everyone makes some changes in building their home.
| PDF Set
: $840.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set
: $890.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $970.00 |
8 printed plan sets mailed to you. |
| Reproducible Set
: $990.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set
: $1695.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $100.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Walk Out Basement: $175.00 |
Ideal for a sloping lot, lower level with outdoor access. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $150.00 |
Wood 2x6 |
Additional Options
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $50.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
