PLAN #535-18

Key Specs


10722
sq ft

9
Beds

9
Baths

3
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description

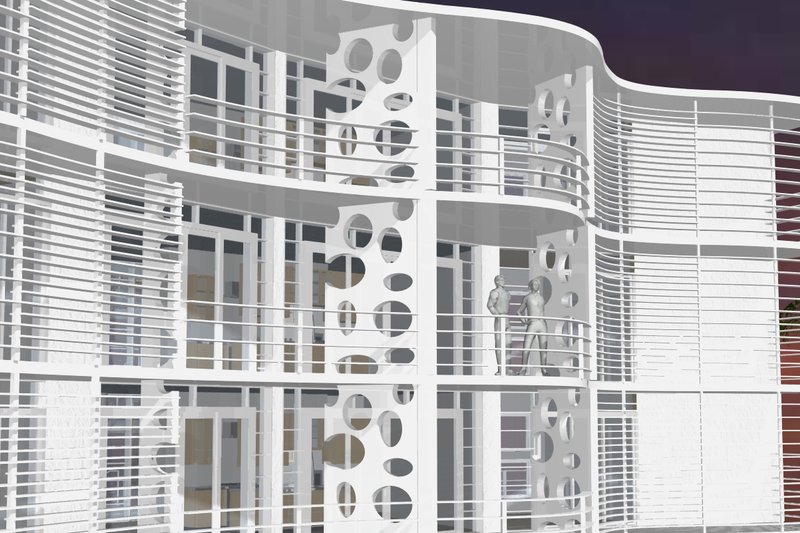

Ideally suited for a beach front lot, or anywhere there's a view, this dramatic design utilizes traditional construction of an exterior ICF wall with a stucco finish. All windows are double insulated, Low-E units providing a weather tight, highly efficient exterior wall. The deep, covered terraces provide protection from harmful solar gain, while allowing spectacular views of the skyline. Each of the 3 generous 2,700 sf units offer a dramatic dropped ceiling entry foyer with adjacent powder room leading to a stunning great room/kitchen entertaining area. The living area separates the master suite from the secondary 2 bedrooms each with private bath. All rooms have direct, open access to the curvilinear terraces which are separated into 3 distinct areas by decorative structural screen-walls. A separate covered deck provides a private outdoor area adjacent to the master bedroom.

Floor Plans


Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #535-18

Full Specs & Features


Dimension
Depth : 37'
Height : 37'
Width : 99' 6"
Area
Decks : 2607 sq/ft
Lower Floor : 2705 sq/ft
Main Floor : 2705 sq/ft
Upper Floor : 2705 sq/ft
Ceiling
Lower Ceiling : 8' 6"
Main Ceiling : 9'
Roof
Roof Framing : WD. TRUSS
Roof Type : FLAT TRUSS
Exterior Wall Framing
Insulation : ICF, R30
Exterior Wall Finish : STUCCO
Framing : ICF
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Grill Deck Sundeck
Wrap Around Porch
More
Economical To Build
Suited For Vacation Home

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$2250.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$4500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$1000.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$1000.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Construction Engineering Guide :
39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
