PLAN #535-24

Key Specs


9227
sq ft

9
Beds

6
Baths

3
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description


Stunning contemporary building with 3 luxurious 1,978 sf units, each with 3 bedrooms and 2.5 baths. The open kitchen - living area, with fireplace and adjacent terrace, is illuminated by a solar light wall that floods the unit with natural light from the verandas. An elevator can be incorporated between floors to add convenience.

Floor Plans

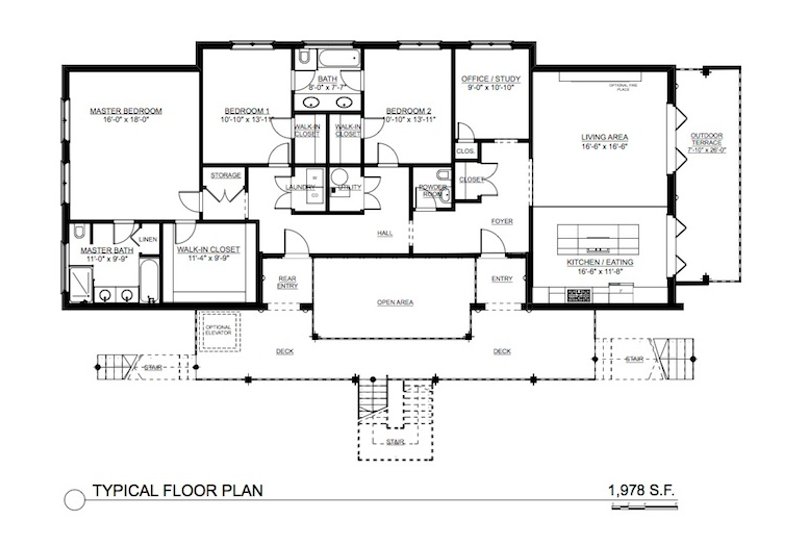

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #535-24

Full Specs & Features


Dimension
Depth : 75'
Height : 37'
Width : 30'
Area
Decks : 425 sq/ft
Garage : 1000 sq/ft
Lower Floor : 2175 sq/ft
Main Floor : 2175 sq/ft
Porch : 200 sq/ft
Storage : 1077 sq/ft
Upper Floor : 2175 sq/ft
Ceiling
Garage Ceiling : 8'
Main Ceiling : 9'
Roof
Roof Framing : WOOD/METAL TRUSS
Roof Type : FLAT
Exterior Wall Framing
Insulation : WALLS @ R-30, ROOF @ R-19
Exterior Wall Finish : ALUMINUM PANELS / CERAMIC TILE
Framing : ICF WALL PANELS
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Jack Jill Bath
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Garage Under
Oversized Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Economical To Build
Wheelchair Adaptable
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
