PLAN 535-6

Photographs may show modified designs.

Save
Home  >  Style  >  Contemporary

Key Specs


Plan Sq Ft

6672
sq ft

Plan Bedrooms

12
Beds

Plan Bathrooms

6
Baths

Plan Floors

3
Floors

Plan Garages

6
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$170.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $1997.50
You save $352.50 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 535-6

Plan Description


This multifamily building has 6 units. Each unit is 1112 sf with 2 bedrooms and 1.5 baths. The building has a central entry and features, open decks and balconies, as well as, expansive windows allowing each unit to have generous living spaces. Natural light floods the units from multiple directions offering ventilation and open vistas. Exterior walls are designed for “green wall” construction typical with insulated (R30) ICF walls. The flat roof design is suitable for solar panels or wind turbines

Full Specs & Features


Dimension

Depth : 52' 6"

Height : 37' 8"

Width : 47'

Area

Decks : 342 sq/ft

Main Floor : 2232 sq/ft

Upper Floor : 2232 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Bedroom Features

Walk In Closet

Additional Room Features

Loft

Outdoor Spaces

Balcony

What's Included


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

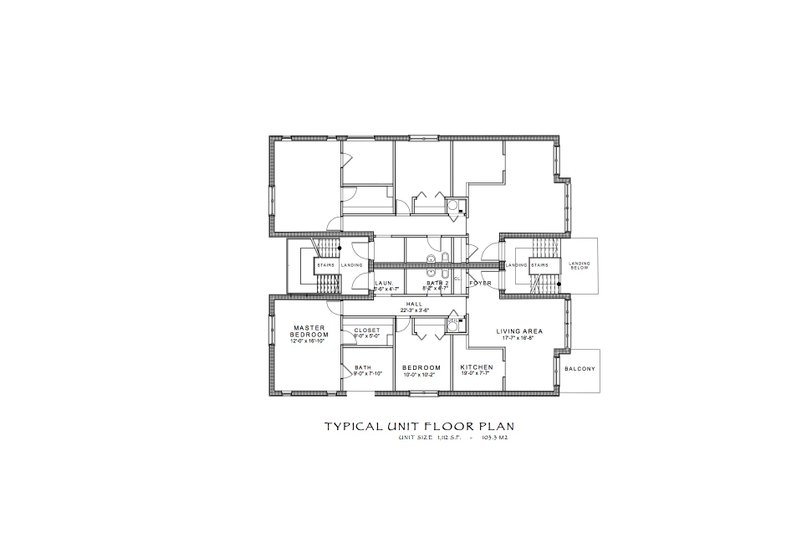

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1997.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$4080.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$170.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
