PLAN 70-1146
Key Specs
3794
sq ft
3
Beds
3.5
Baths
1
Floors
4
Garages
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
PLAN 70-1146
Key Specs
3794
sq ft
3
Beds
3.5
Baths
1
Floors
4
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description
Wooden beams and columns grace the outside of this country French/craftsman inspired ranch home. Details that grab your attention abound in this home and start as soon as you enter with a direct view into the great room. Here you’ll be impressed with the beamed ceiling, fireplace and open floor plan that allows direct access to the kitchen. A formal dining room with tray ceiling is found to the left of the entry while a spacious den with coffered ceilings is located to the right. The bedroom wing is found on the right side of the home and includes a large master suite with spacious walk-in closet and Jacuzzi tub. Two additional bedrooms, each with private bathroom is located to the front of the home. A four-stall, split-load garage completes the home.
Floor Plans

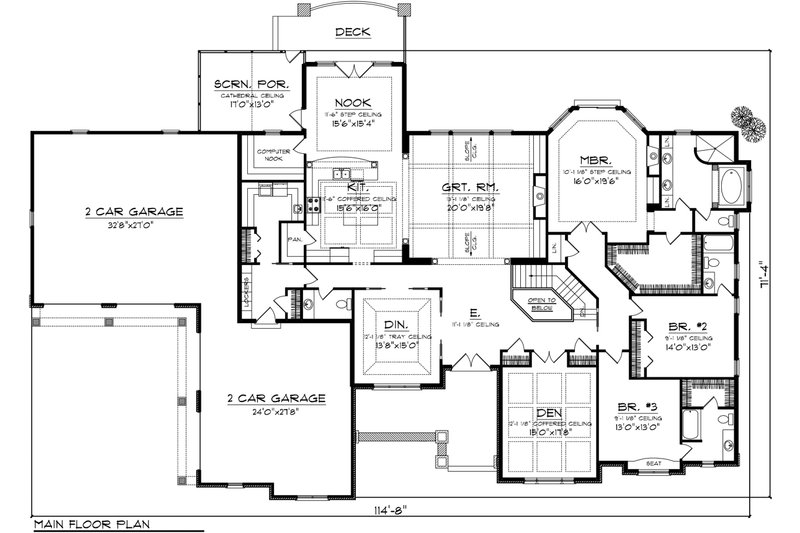

Floor Plan - Main Floor Plan
Full Specs & Features
Height : 29'
Width : 114' 8"
Garage: 1595 sq/ft
Lower Ceiling : 10'
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Kitchen Island
Walk In Pantry Cabinet Pantry
Great Room Living Room
Main Floor Laundry
Mud Room
Sunroom
Unfinished Future Space
Screened Porch
Bedroom 2:
width 14' x depth 13'
Bedroom 3:
width 13' x depth 13'
Breakfast Nook:
width 15' 6" x depth 15' 4"
Deck:
width 16' 4" x depth 9' 6"
Den:
width 15' x depth 17' 8"
Dining Room:
width 13' 8" x depth 15'
Garage 1:
width 32' 8" x depth 27'
Garage 2:
width 24' x depth 27' 8"
Great Room:
width 20' x depth 18' 8"
Kitchen:
width 15' 6" x depth 16'
Master Bedroom:
width 16' x depth 19' 6"
Porch Front:
348 sq/ft
Screened Porch:
221 sq/ft width 17' x depth 13'
What's Included In This Plan Set
See a sample plan set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
| 5 Copy Set
: $1556.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1631.00 |
8 printed plan sets mailed to you. |
| PDF Set
: $2049.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $2049.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set
: $3263.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $295.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $295.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse
: $295.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $40.00 |
