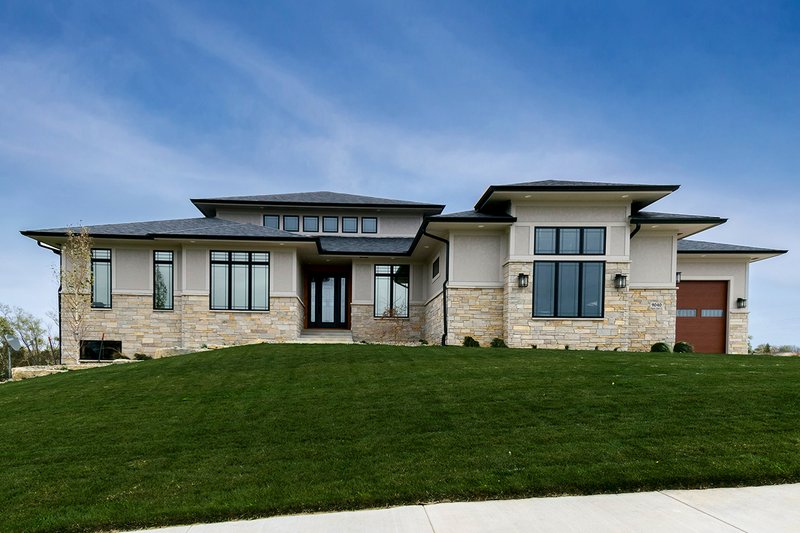

House Plan Design - Craftsman Exterior - Front Elevation Plan #70-1486

House Plan Design - Craftsman Exterior - Rear Elevation Plan #70-1486

House Plan Design - Craftsman Exterior - Covered Porch Plan #70-1486

House Plan Design - Craftsman Interior - Entry Plan #70-1486

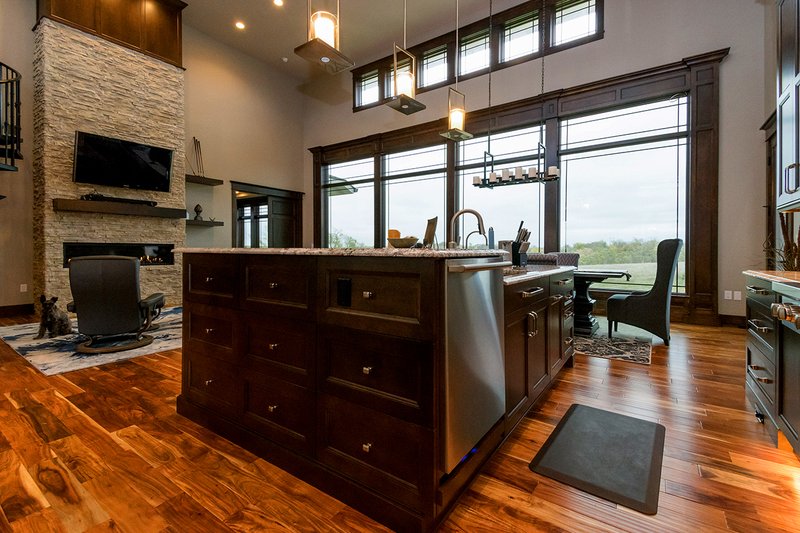

House Plan Design - Craftsman Interior - Kitchen Plan #70-1486

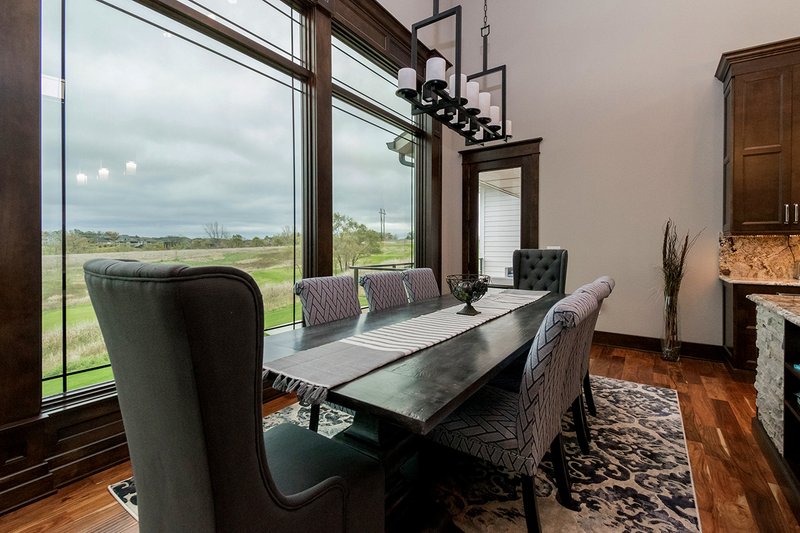

House Plan Design - Craftsman Interior - Dining Room Plan #70-1486

House Plan Design - Craftsman Interior - Master Bedroom Plan #70-1486

House Plan Design - Craftsman Interior - Master Bathroom Plan #70-1486

House Plan Design - Future Basement Family Room

House Plan Design - Future Basement Bedroom

House Plan Design - Future Basement Bath

House Plan Design - Future Basement Half Bath

Home / Style / Craftsman Home Plans

Key Specs

2727
sq ft

2
Beds

3
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$375.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$325.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$60.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$3250.00

Allows you to build this home as many times as you want.

Subtotal

$1098.00

Also order by phone: 1-800-528-8070

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 70-1486

Home / Style / Craftsman Home Plans

Key Specs

2727
sq ft

2
Beds

3
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Additional Use License Available: $280.00

Floor Plans

Floor Plan - Main Floor

Reverse

House Plan Design - Craftsman Floor Plan - Main Floor Plan #70-1486

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

House Plan Design - Craftsman Floor Plan - Upper Floor Plan #70-1486

Full Specs & Features

Dimension

Depth : 65' 8"

Height : 26' 8"

Width : 97'

Area

Garage : 1723 sq/ft

Main Floor : 2545 sq/ft

Porch : 249 sq/ft

Upper Floor : 182 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 10' coffered ceiling in Den; 10' to 11' step ceiling in Master Bedroom; 19' ceiling in Great Room, Dining Room & Kitchen

Main Ceiling : 10'

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Shingle

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Stone, Stucco & Siding

Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Garage Features

Front Entry Garage

Side Entry Garage

Split Garage

Tandem Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Empty Nester

Rooms

Bedroom 2:

width 12' 8" x depth 10' 8"

Bedroom 2 Closet:

width 5' 4" x depth 6' 4"

Covered Rear Porch/Deck:

width 23' 8" x depth 14' 8"

Den:

width 12' 8" x depth 15' 6"

Dining Room:

width 14' 4" x depth 10' 6"

Foyer:

width 8' x depth 8' 4"

Garage I:

width 23' x depth 25'

Garage II:

width 29' 6" x depth 39'

Great Room:

width 18' 4" x depth 24' 8"

Hall Bath I:

width 8' 8" x depth 5'

Hall Bath II:

width 5' 8" x depth 8' 8"

Kitchen:

width 12' 4" x depth 14'

Laundry:

width 8' 8" x depth 8'

Loft:

width 36' x depth 6' 6"

Master Bath:

width 12' 4" x depth 17'

Master Bedroom:

width 16' 4" x depth 18' 4"

Master Closet:

width 8' x depth 10'

Mud Room:

width 9' 6" x depth 6' 6"

Pantry:

width 5' 4" x depth 10' 8"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-800-528-8070

Plan Set

5 Copy Set:
$1098.00

5 printed plan sets mailed to you.

8 Copy Set:
$1151.00

8 printed plan sets mailed to you.

PDF Set:
$1381.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1381.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2195.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$335.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$335.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$375.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$325.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$60.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$3250.00

Allows you to build this home as many times as you want.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
