PLAN #70-497

Key Specs


3204
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Floor Plans


Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #70-497

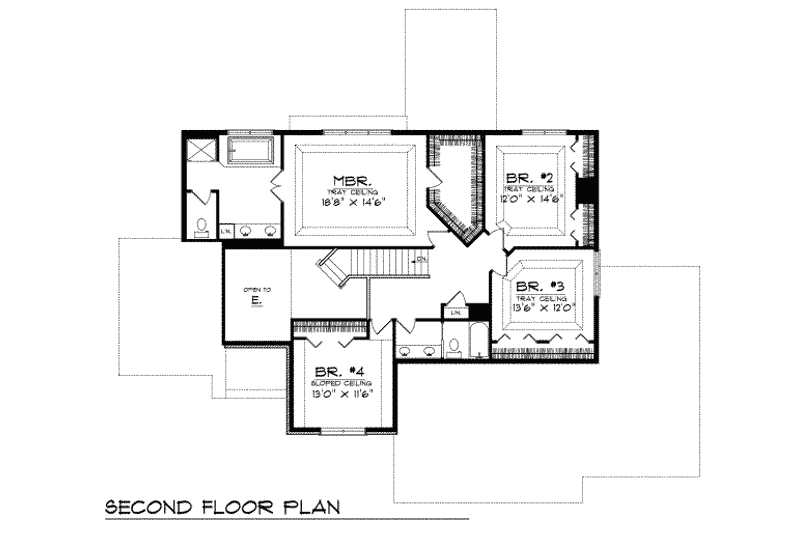

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #70-497

Full Specs & Features


Dimension
Depth : 64' 8"
Height : 33'
Width : 77' 8"
Area
First Floor: 1768 sq/ft
Second Floor: 1436 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Truss
Primary Pitch : 9:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Loft Balcony
Screened Porch Sunroom
Rooms

Breakfast Nook:

120 sq/ft width 10' x depth 12'

Dining Room:

186 sq/ft width 13' 8" x depth 13' 8"

Family Room:

345 sq/ft width 20' 4" x depth 17'

Garage:

976 sq/ft width 40' 8" x depth 24'

Garage Storage:

107 sq/ft width 17' x depth 6' 4"

Kitchen:

233 sq/ft width 14' x depth 16' 8"

Living Room:

221 sq/ft width 13' x depth 17'

Porch - Screened:

192 sq/ft width 12' x depth 16'

Study:

182 sq/ft width 13' x depth 14'

Wood Deck:

176 sq/ft width 14' 8" x depth 12'

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1020.00
5 printed plan sets mailed to you.
8 Copy Set :
