PLAN #70-234

Key Specs


1900
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Floor Plans


Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #70-234

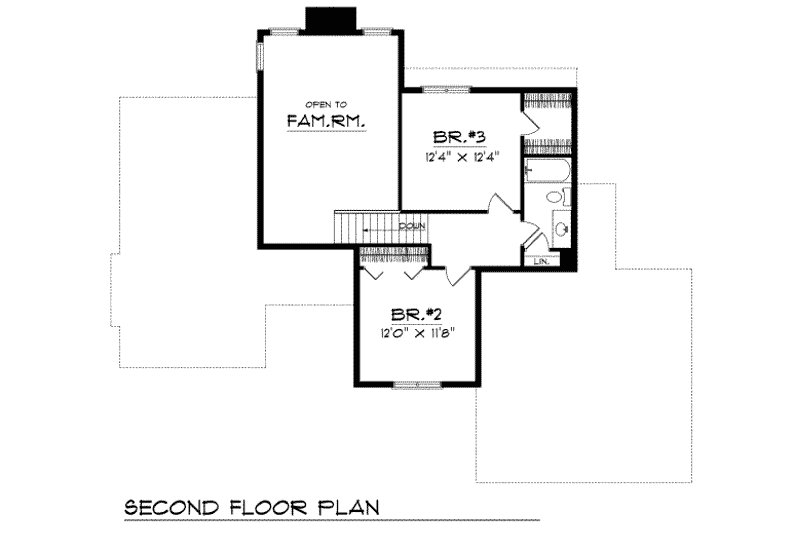

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #70-234

Full Specs & Features


Dimension
Depth : 49' 4"
Height : 25'
Width : 60' 4"
Area
First Floor: 1386 sq/ft
Second Floor: 514 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Great Room Living Room
Rooms

Dining Room:

144 sq/ft width 12' x depth 12'

Entry:

width 10' 1" x depth 0"

Family Room:

252 sq/ft width 14' x depth 18'

Garage:

484 sq/ft width 22' x depth 22'

Kitchen:

253 sq/ft width 17' 8" x depth 14' 4"

Master Bedroom:

224 sq/ft width 14' x depth 16'

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale

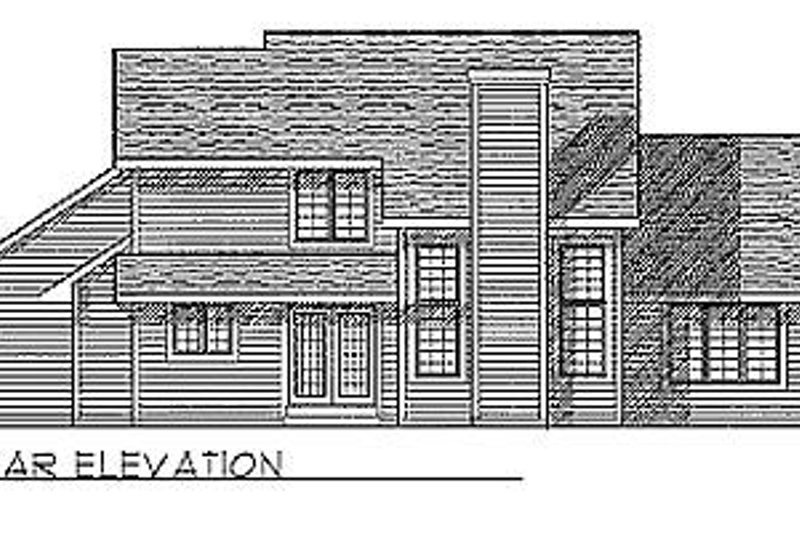

  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
