PLAN #56-549

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description

This 1,831 sq. ft. plan is a signature design. An inviting
 covered porch welcomes you to a dining room, surrounded by classic
 columns, and a spacious family room. A cozy fireplace, 12' high ceilings
 and an arch-top window unit highlight this space. Located off the family
 room is a screened porch that is perfect for relaxing with a good book.
 Look closely and you'll see the foremost walls form a "W", the signature
 of this collection! This functional split bedroom plan offers a private
 master suite near the kitchen. Abundant closet space, a sitting/reading
 area and roomy master bath with separate vanities, corner garden tub,
 shower and toilet compartment make this truly an owner's paradise. The
 opposite end of the house features two comfortable bedrooms and a full
 bath. Boasting a serving bar and breakfast nook with a pantry, the
 kitchen is a gourmet's delight. The laundry room with an adjacent powder
 room is located off the kitchen. A door in the breakfast nook leads to a
 double bonus; 2 bonus rooms to be exact! These could serve any number
 of functions including a home office, media room, playroom, library,
 craft/sewing room, etc.

Floor Plans

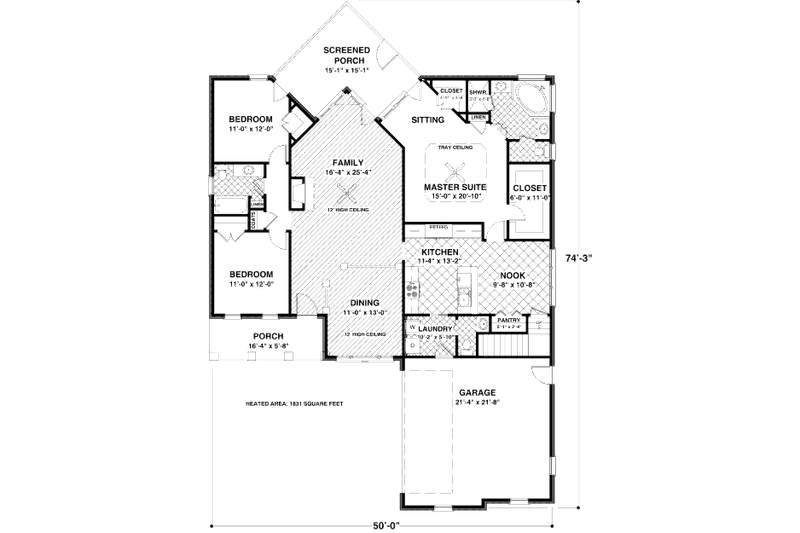

Floor Plan - Main Floor Plan
Southern Floor Plan - Main Floor Plan Plan #56-549

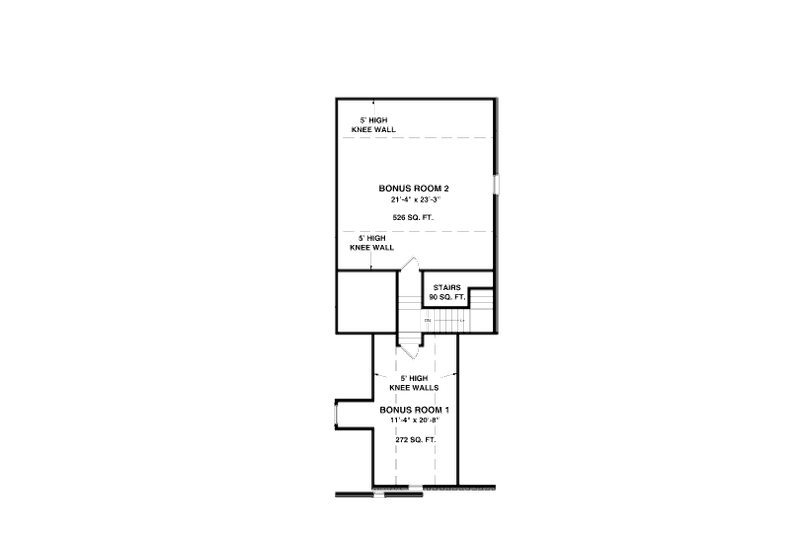

Floor Plan - Other Floor Plan
Southern Floor Plan - Other Floor Plan Plan #56-549

Full Specs & Features

Depth : 74' 3"
Height : 22' 6"
Width : 50'
Bonus: 798 sq/ft
First Floor: 1831 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 7:12
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Screened Porch

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bonus Room - Unfinished:

495 sq/ft width 21' 4" x depth 23' 3"

Dining Room:

143 sq/ft width 11' x depth 13'


462 sq/ft width 21' 4" x depth 21' 8"


149 sq/ft width 11' 4" x depth 13' 2"

Master Suite:

312 sq/ft width 15' x depth 20' 10"


103 sq/ft width 9' 8" x depth 10' 8"

Porch - Front:

92 sq/ft width 16' 4" x depth 5' 8"

Porch - Screened:

227 sq/ft width 15' 1" x depth 15' 1"

What's Included In This Plan Set

  • Artist Rendering

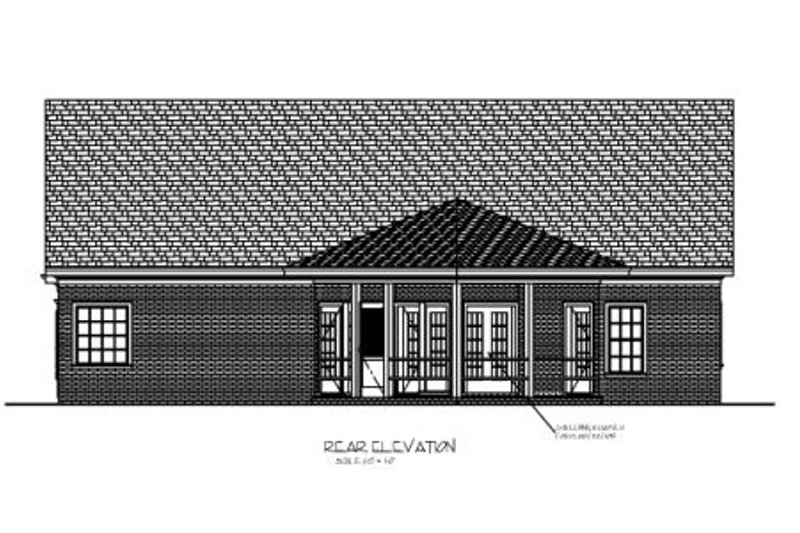

  • Exterior Elevations: All four sides
  • Floor Plans(s)
  • Foundation Plan
  • Cross Sections
  • Cabinet Elevations
  • Roof Plan
  • 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
  • Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
