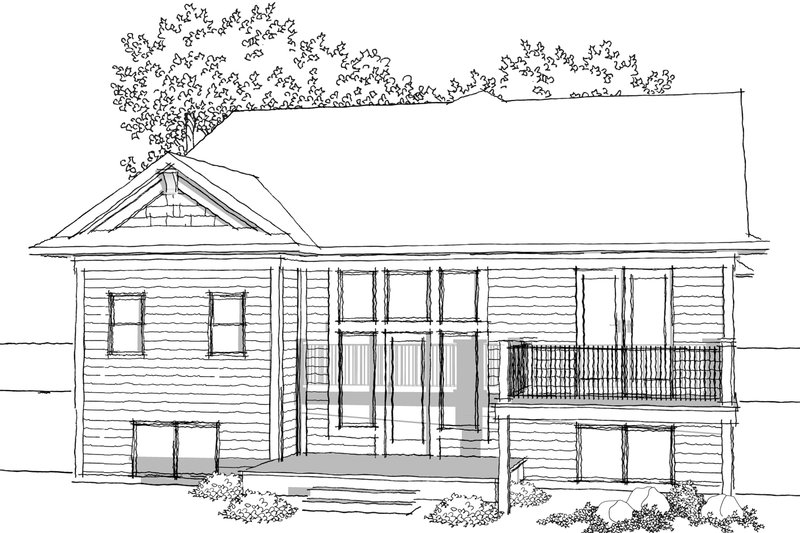

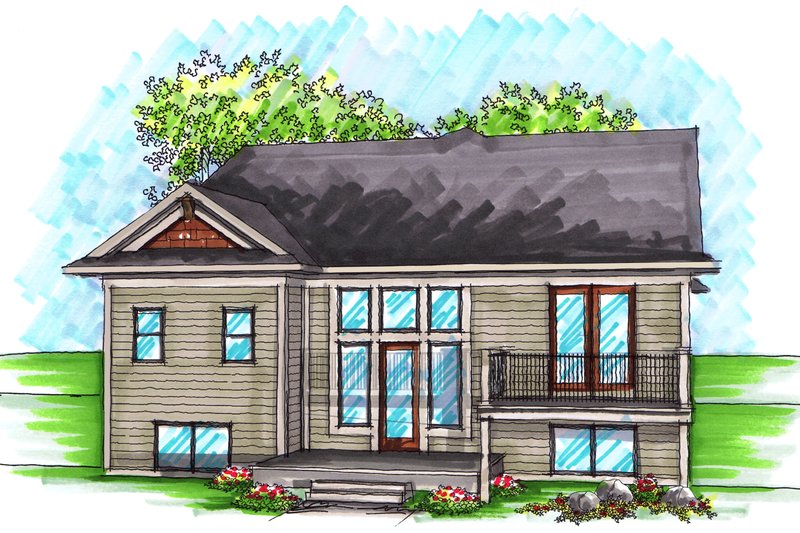

House Plan Design - Ranch Exterior - Rear Elevation Plan #70-1026

House Plan Design - Ranch Photo Plan #70-1026

House Plan Design - Ranch Floor Plan - Main Floor Plan #70-1026

Jump to:
All (5)
Exterior (2)
Floor plans (1)
Photo (2)

Get Personalized Help

Home > Style > Ranch Home Plans

Key Specs

1587
sq ft

1
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

	Right-Reading Reverse	$395.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$80.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$75.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1022.00

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTB2026

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1026

Home > Style > Ranch Home Plans

Key Specs

1587
sq ft

1
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This arts and crafts ranch is sure to be an eye catcher in any neighborhood with its spacious porch thatâ€™s even large enough for a swing. With just under 1,600 square feet and two bedrooms, this home is affordable to build and easily pleases buyers. The main living area lies to the left of the entry behind the garage and includes an open plan where a kitchen with eating bar overlooks the dining room. The adjacent great room features an optional corner fireplace area and access to the staircase and landing that lead to the back yard. Both bedrooms lie to the left of the entry where the master has a spacious walk-in closet, dual sinks and private bath. The two-stall garage has access to the main floor laundry room thatâ€™s tucked just behind the kitchen.

Floor Plans

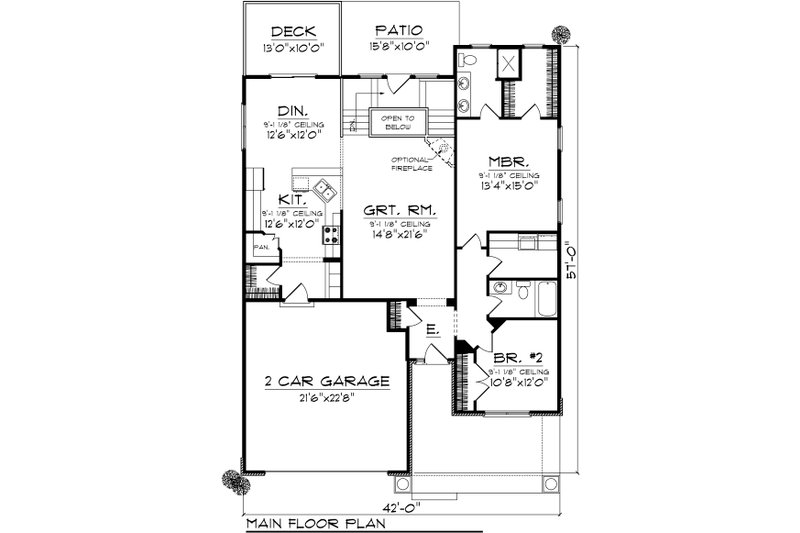

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 57'

Height : 24' 8"

Width : 42'

Area

First Floor: 1587 sq/ft height 8'

Garage: 493 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Load : 47

Exterior Wall Framing

Exterior Wall Finish : Shake / Stone / Siding

Framing : 2 x 6

Insulation : R-19

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

Empty Nester

Rooms

Basement Foundation:

2394 sq/ft width 42' x depth 57'

Bedroom 2:

128 sq/ft width 10' 8" x depth 12'

Bedroom 2 Closet:

15 sq/ft width 2' 1" x depth 7' 8"

Deck:

130 sq/ft width 13' x depth 10'

Dining Room:

150 sq/ft width 12' 6" x depth 12'

Foyer:

39 sq/ft width 5' 10" x depth 6' 10"

Garage:

487 sq/ft width 21' 6" x depth 22' 8"

Great Room:

315 sq/ft width 14' 8" x depth 21' 6"

Hall:

48 sq/ft width 4' x depth 12' 2"

Hall Bathroom:

45 sq/ft width 9' x depth 5'

Hall Closet:

7 sq/ft width 2' 1" x depth 3' 6"

Kitchen:

150 sq/ft width 12' 6" x depth 12'

Laundry Room:

54 sq/ft width 9' x depth 6'

Master Bathroom:

54 sq/ft width 6' x depth 9'

Master Bedroom:

199 sq/ft width 13' 4" x depth 15'

Master Closet:

63 sq/ft width 7' x depth 9'

Mud Room:

37 sq/ft width 7' 9" x depth 4' 10"

Pantry:

17 sq/ft width 4' 4" x depth 4'

Patio:

156 sq/ft width 15' 8" x depth 10'

Porch - Front:

160 sq/ft width 20' x depth 8'

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Cover sheet with front rendering
Foundation Plan(s): Foundation plans at 1/4" = 1' scale
Floor Plan(s): Floor plans at 1/4" = 1' scale
Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Building Section(s): Building sections and details as required to construct the individual design
Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Specification(s): General specification design notes

Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
