PLAN 45-601
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description

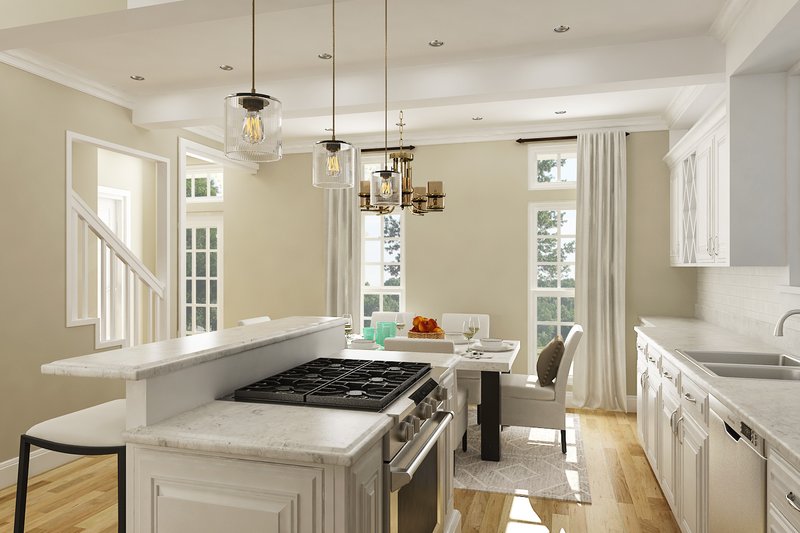

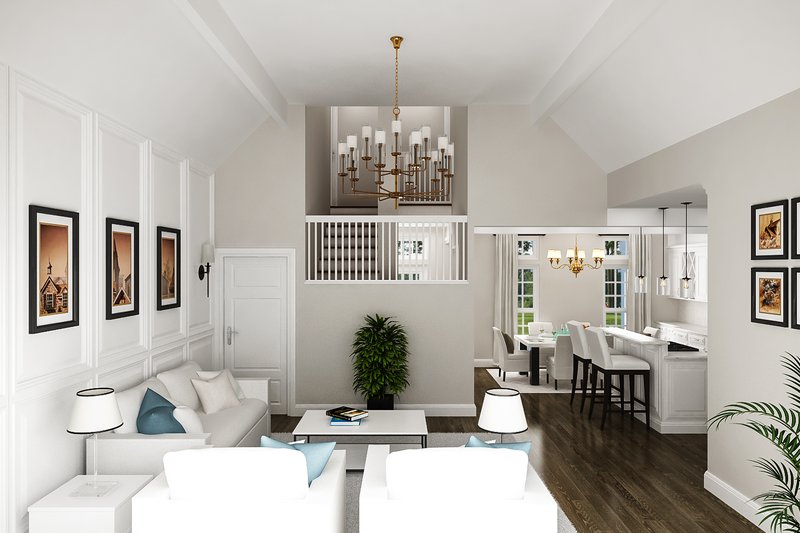

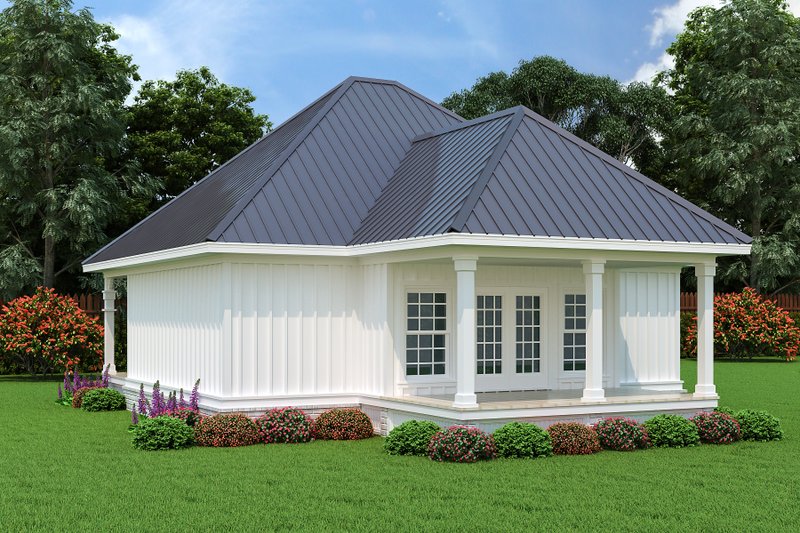

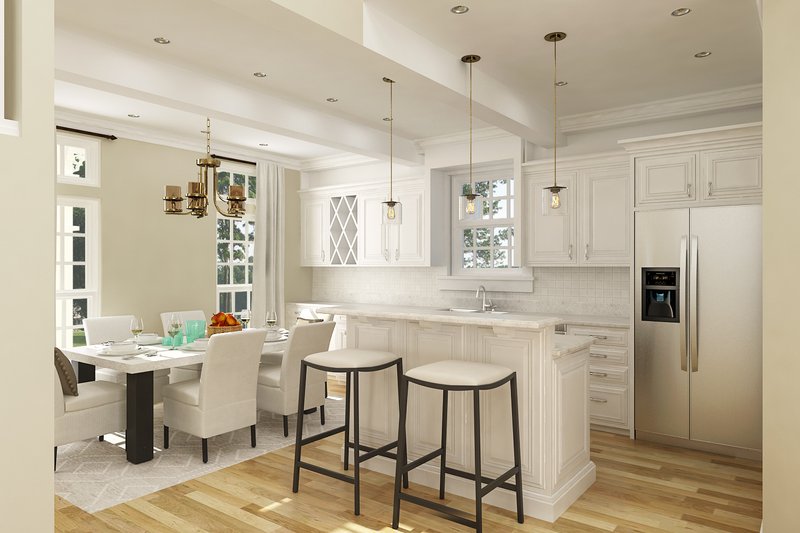

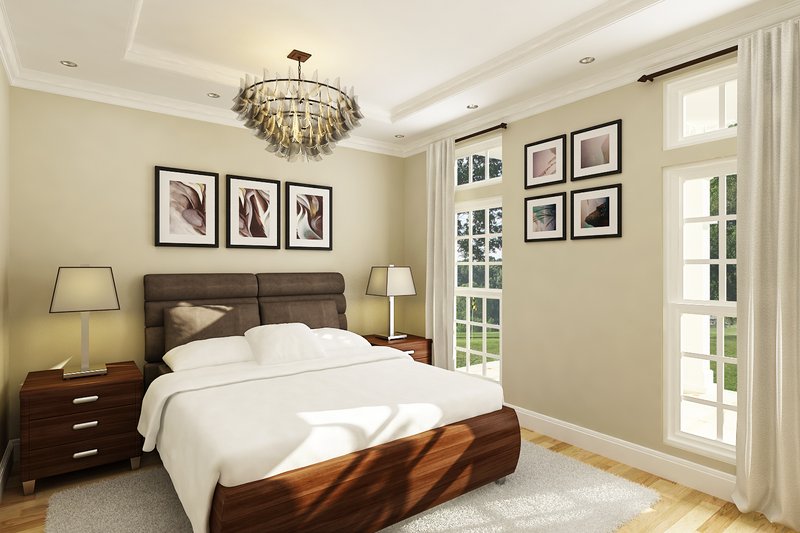

Intended as a guest house or even a permanent residence for up to two people, this adorable cottage is sure to please those who appreciate designs that are historical in appearance but with modern day features. The open airy layout of the main living spaces will enhance the compact size making it appear as a much larger home. The spaces have subtle divisions that definitely define each space but all work together for open entertainment. The 9’ ceilings accommodate the window and door transoms opening to the front porch providing maximum light for the interior. The volume ceilings of the living room have exposed beams and clipped ceilings which create grandness for such a compact home. The double French doors in the living room lead out to the rocking chair size rear porch which can easily be screened for those who desire. The 8’ deep front porch can also accommodate rocking chairs. The kitchen is comparable to those found in larger homes and it features a large island with serving bar, a buffet serving area and beamed ceilings. The master bedroom is illuminated with 2 large windows with transoms and features a bath with shower and a big walk-in closet. The half bath and equipment closet are located for convenience and maximum efficiency. Similar plans are under 45-581 and 45-595.
Read More
Floor Plans

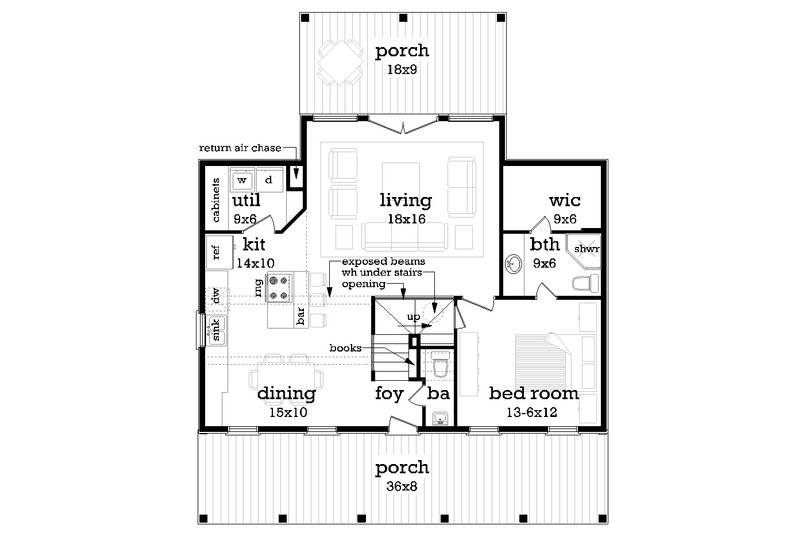

Floor Plan - Main Floor

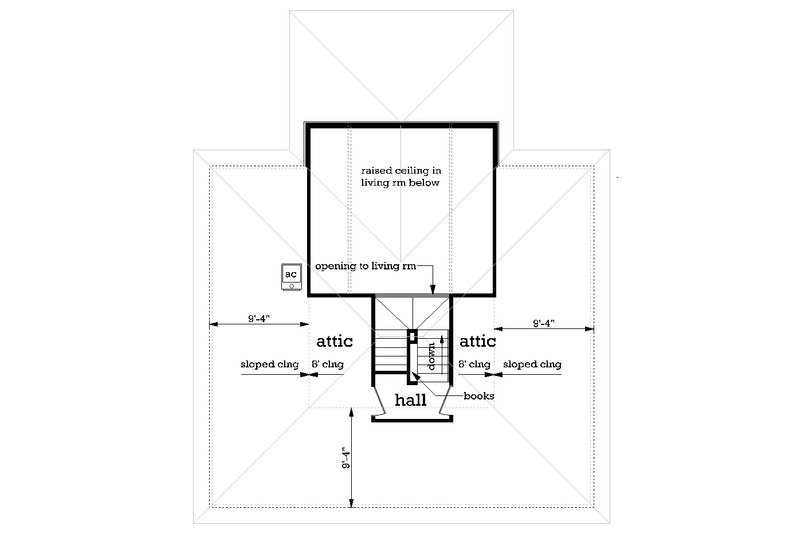

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 45'
Height : 24'
Width : 36'
Area
Main Floor : 936 sq/ft
Porch : 450 sq/ft
Upper Floor : 24 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Living Room ceiling slopes to 13' - 6" high with exposed beams
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Type : hip
Exterior Wall Framing
Exterior Wall Finish : VERTICAL SIDING
Framing : 2x6
Insulation : R19
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Main Floor Laundry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Zero Lot Lines
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- Information Cover Sheet
- Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
- Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
- Exterior Views
- Building Sections & Interior Elevations
- Complete Construction Details
- Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$770.00
$770.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$900.00
$900.00
5 printed plan sets mailed to you.
8 Copy Set:
$1010.00
$1010.00
8 printed plan sets mailed to you.
5 Copy and PDF Set:
$1025.00
$1025.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1340.00
$1340.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Monolithic Slab:
$150.00
$150.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Slab:
$150.00
$150.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$45.00
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$75.00
$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
