Plan Description

EFFICIENT USE OF SPACE IN AN AFFORDABLE HOME Great as a rental unit or for a permanent residence, the low cost of construction combined with the efficient use of space, makes this an ideal choice for either. The large rocking chair size front and rear porches offer plenty of outdoor living options. Inside, the efficient use of floor space coverts every inch into useful living space by virtually eliminating hallways and other wasted space. The open design combination of the living, dining and kitchen provides an enormous open area to make this small home rival much larger homes. The kitchen includes the much sought after window over the sink plus an island with a raised eating bar. As a bonus, a full size pantry is located within the kitchen area. The utility is conveniently located with open access to the kitchen. Even the doors and windows have been restricted to a minimum in order to decrease cost. Despite the small footprint, all bed rooms are comfortably sized and two of the three boast large walk-in closet. This is one in a series of three plans all designed for affordability. Plan 1010 is a one bedroom version and plan 1009 is a two bedroom version.

Floor Plans

Floor Plan - Main Floor

Reverse

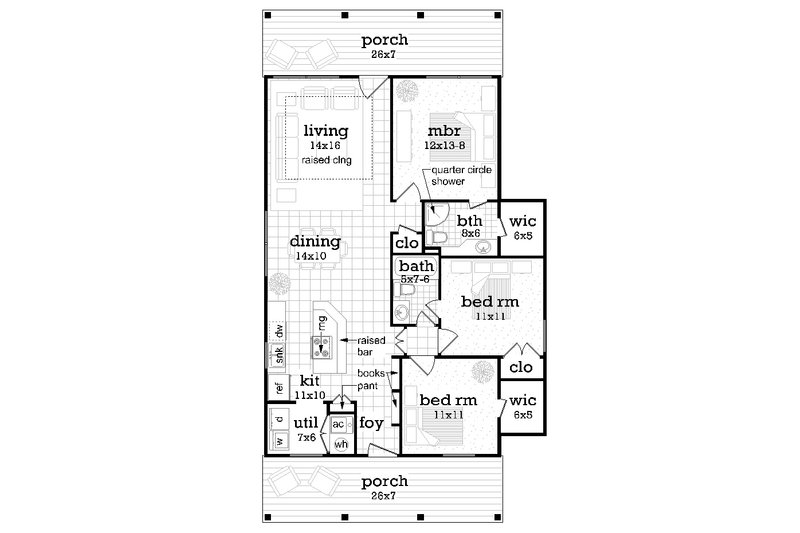

House Plan Design - Cottage Floor Plan - Main Floor Plan #45-617

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 56'

Height : 19'

Width : 31'

Area

Main Floor : 1222 sq/ft

Porch : 364 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Living Room has a 10' - 6" raised ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : conventional

Exterior Wall Framing

Exterior Wall Finish : vinyl siding - board and batt pattern

Framing : 2x4

Insulation : 11

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Economical To Build

Suited For Vacation Home

What's Included In This Plan Set
