PLAN 17-2489

House Plan Design - European Floor Plan - Main Floor Plan #17-2489

House Plan Design - European Floor Plan - Upper Floor Plan #17-2489

Key Specs

4949
sq ft

4
Beds

4.5
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

Additional options

	Right-Reading Reverse $299.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $80.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

$2250.00

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 17-2489

Key Specs

4949
sq ft

4
Beds

4.5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

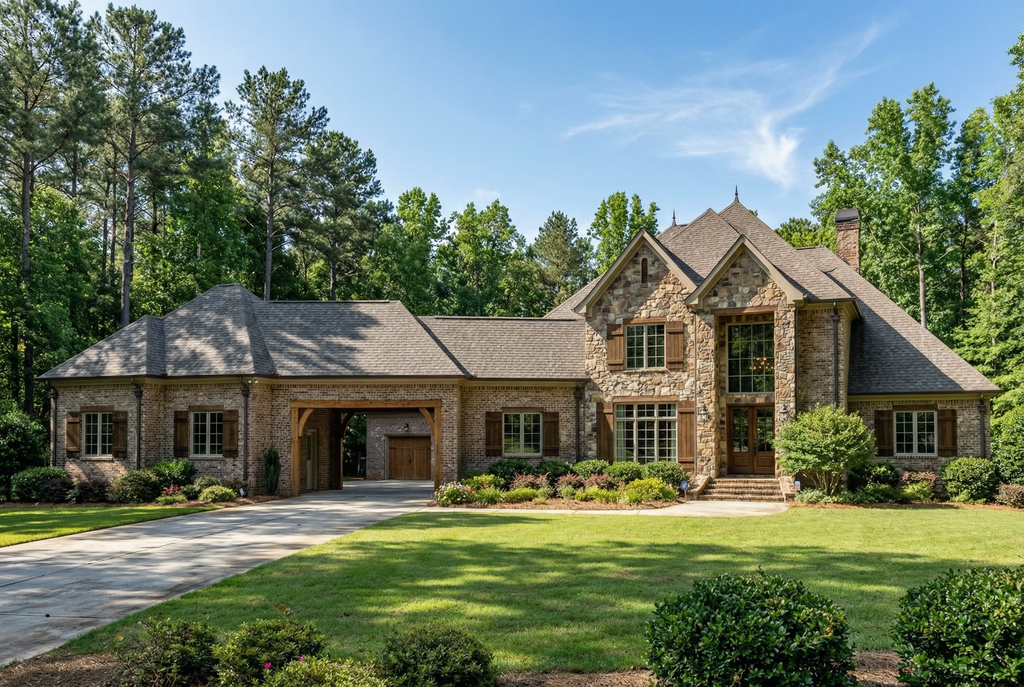

This brick and stone rustic home features an eye-catching timber beam gabled front porch and open floor plan. The Great Room has a 12′ ceiling and is open to the spacious kitchen and dining room and has access to a large Sun Room. The kitchen offers a prep island as well as plenty of counter space and an eat-at peninsula bar. The Master Suite has a gas fireplace and multiple windows for natural lighting while the bath boasts a corner whirlpool tub, a glass shower, dual vanities and a huge walk-in closet that doubles as a Safe Room. 2 more bedrooms share a bathroom on the right side of the house. Off of the Sun Room is an Outdoor Living/Grilling Porch with a fireplace for cool evenings.

Floor Plans

Floor Plan - Main Floor

Reverse

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 84' 5"
Height : 38'
Width : 116' 10"

Area

First Floor: 3282 sq/ft
Second Floor: 1667 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details :
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Load : 45
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Mud Room
Workshop

Garage Features

Carport Porte Cochere
Rear Garage
Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

Rooms

Bath 2:

width 5' x depth 8'

Bath 3:

width 5' 2" x depth 12'

Bath 4:

width 11' x depth 5'

Bedroom 2:

width 14' 4" x depth 12'

Bedroom 3:

width 16' x depth 12'

Bedroom 4:

width 14' 4" x depth 15' 8"

Closet:

width 17' x depth 9' 6"

Exercise Room:

width 20' x depth 12'

Foyer:

width 11' x depth 17'

Game/Media Room:

width 18' 4" x depth 16' 8"

Great Room:

width 19' 4" x depth 18' 10"

Hearth Room/Dining:

width 17' 10" x depth 12'

Kid's TV Room:

width 18' 4" x depth 13'

Kitchen:

width 17' 10" x depth 17'

Laundry Room:

width 13' 8" x depth 12' 9"

Lawn Storage:

width 8' x depth 11' 6"

Master Bath:

width 12' 8" x depth 15' 8"

Master Suite:

width 17' x depth 18'

Porte Cochere:

width 20' x depth 21' 4"

Rear Covered Outdoor Living:

693 sq/ft width 20' 9" x depth 19' 4"

Storage/Safe Room:

width 7' 4" x depth 11' 6"

Three Car Garage:

width 34' 8" x depth 24'

Workshop/Garage 2:

width 27' 4" x depth 23' 8"
