15% OFF THIS PLAN TODAY

PLAN 47-1005

Photographs may show modified designs.

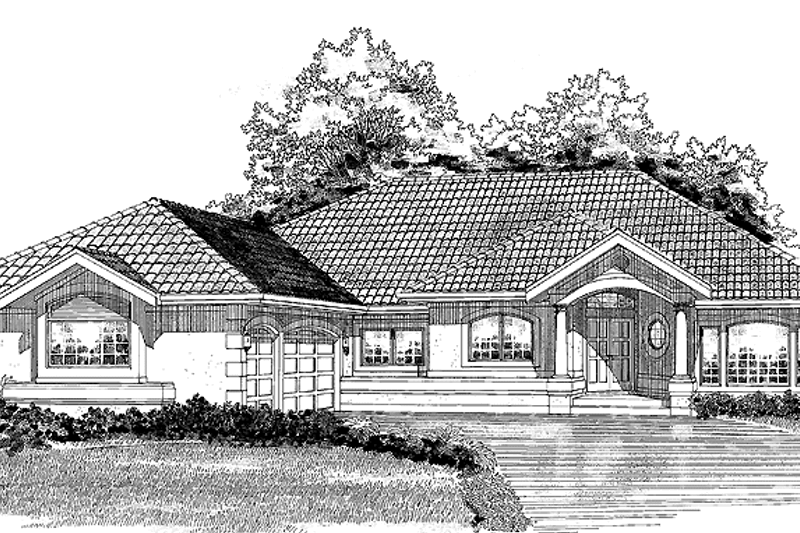

House Plan Design - Mediterranean Exterior - Front Elevation Plan #47-1005

House Plan Design - Mediterranean Exterior - Rear Elevation Plan #47-1005

House Plan Design - Mediterranean Floor Plan - Main Floor Plan #47-1005

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Mediterranean Home Plans

Key Specs

2804
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $1083.85

You save $191.27 (15% savings)

Sale ends soon!

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-1005

Home > Style > Mediterranean Home Plans

Key Specs

2804
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

An angled entry on this home allows privacy and adds a touch of drama. Low-slung and spacious, this one-story home begins with double doors to a columned entry foyer that's framed by a formal dining room and a sunken living room. The family room is also sunken and leads to a rear covered lanai with skylights. The master bedroom also accesses this lanai, just beyond its sitting area. Note the twin walk-in closets in the master bedroom. A breakfast room attaches to the kitchen and features a bay window. There are three fireplaces in the plan: in the master bedroom, the living room and the family room.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 88'

Height : 27'

Width : 68'

Area

First Floor: 2804 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

11 sq/ft width 5' 9" x depth 2'

Bedroom 2:

142 sq/ft width 12' 11" x depth 11'

Bedroom 2 Closet:

11 sq/ft width 5' 9" x depth 2'

Bedroom 3:

142 sq/ft width 12' 11" x depth 11'

Bedroom 3 Closet:

11 sq/ft width 5' 9" x depth 2'

Breakfast Room:

85 sq/ft width 10' x depth 8' 6"

Crawlspace Foundation:

3264 sq/ft width 48' x depth 68'

Den/Office or Bedroom 1:

84 sq/ft width 11' x depth 7' 8"

Dining Room:

147 sq/ft width 11' 10" x depth 12' 6"

Garage:

619 sq/ft width 29' 6" x depth 21'

Gathering Room:

378 sq/ft width 21' x depth 18'

Hall Bathroom:

93 sq/ft width 11' 2" x depth 8' 4"

Hall Closet:

9 sq/ft width 4' 8" x depth 2'

Kitchen:

147 sq/ft width 12' 4" x depth 12'

Living Room:

202 sq/ft width 13' 6" x depth 15'

Master Bathroom:

121 sq/ft width 11' x depth 11'

Master Bedroom:

266 sq/ft width 14' x depth 19'

Master Closet:

79 sq/ft width 5' 6" x depth 14' 6"

Porch - Front:

117 sq/ft width 13' x depth 9'

Porch - Rear:

440 sq/ft width 16' x depth 27' 6"

Powder Room:

28 sq/ft width 5' x depth 5' 8"

Utility Room:

79 sq/ft width 6' x depth 13' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1083.85

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1201.66

5 printed plan sets mailed to you.

8 Copy Set:
$1319.47

8 printed plan sets mailed to you.

Reproducible Set:
$1319.47

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2167.70

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement:
$233.75

Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement:
$233.75

Ideal for sloping lot, lower level of home partially underground.

Slab:
$233.75

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$845.75

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
