PLAN #70-691

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$40.00
Subtotal
$1285.00
Also order by phone: 1-800-528-8070
Cost-to-Build Estimates

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-528-8070
Got Questions?
Got Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #70-691

Key Specs


2787
sq ft

4
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Floor Plans

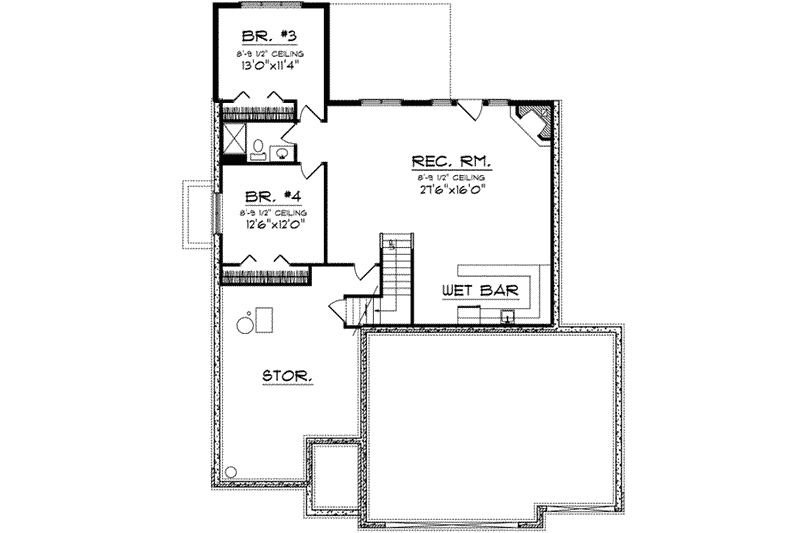

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #70-691

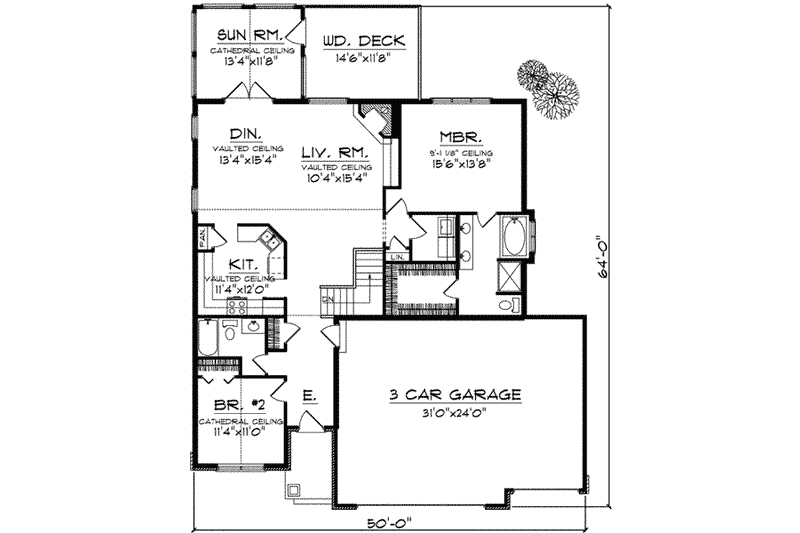

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #70-691

Full Specs & Features


Dimension
Depth : 64'
Height : 22'
Width : 50'
Area
Basement Living: 1160 sq/ft
First Floor: 1677 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Screened Porch Sunroom
Rooms

Basement Foundation:

3200 sq/ft width 50' x depth 64'

Bedroom 2:

125 sq/ft width 11' 5" x depth 11'

Bedroom 2 Closet:

10 sq/ft width 5' 4" x depth 2'

Bedroom 3:

147 sq/ft width 13' x depth 11' 4"

Bedroom 3 Closet:

17 sq/ft width 8' 10" x depth 2'

Bedroom 4:

150 sq/ft width 12' 6" x depth 12'

Bedroom 4 Closet:

21 sq/ft width 10' 8" x depth 2'

Deck:

169 sq/ft width 14' 6" x depth 11' 8"

Dining Room:

204 sq/ft width 13' 4" x depth 15' 4"

Foyer:

82 sq/ft width 6' x depth 13' 10"

Garage:

744 sq/ft width 31' x depth 24'

Hall:

18 sq/ft width 3' 8" x depth 5'

Hall Bathroom:

66 sq/ft width 9' x depth 7' 5"

Hall Closet:

8 sq/ft width 2' x depth 4'

Kitchen:

135 sq/ft width 11' 4" x depth 12'

Laundry Room:

35 sq/ft width 5' 8" x depth 6' 4"

Master Bathroom:

109 sq/ft width 8' 3" x depth 13' 3"

Master Bedroom:

211 sq/ft width 15' 6" x depth 13' 8"

Porch - Front:

234 sq/ft width 18' x depth 13'

Recreation Room:

440 sq/ft width 27' 6" x depth 16'

Sun Room:

155 sq/ft width 13' 4" x depth 11' 8"

Wet Bar:

86 sq/ft width 11' 6" x depth 7' 6"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale

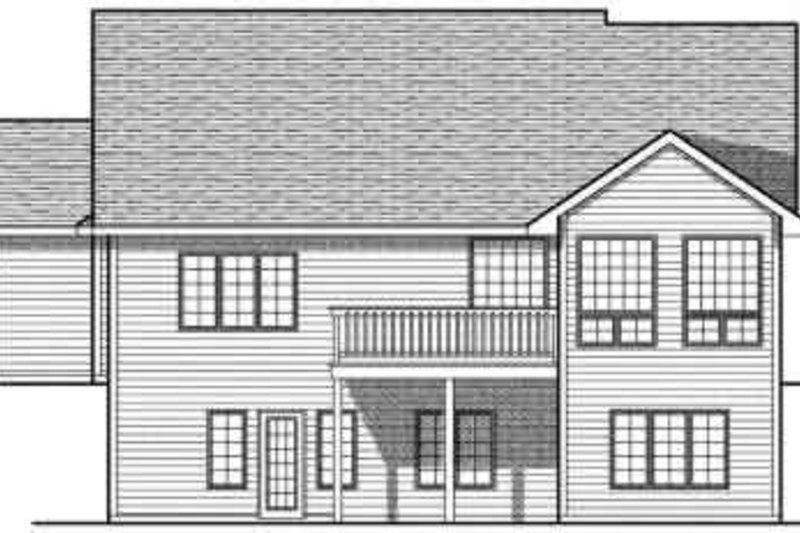

  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
