PLAN 301-120

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

2706
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Additional Construction Sets
$60.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
$60.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$1071.00
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 301-120

Plan Description


This sprawling country estate has French details on the outside and thoroughly modern floor planning on the inside. Begin with double doors opening to a foyer flanked by a study and the formal dining room. Beyond is a massive family room, open to the breakfast room and peninsular kitchen. A fireplace in the family room is framed by built-in bookshelves. The master suite presents a sitting room, double walk-in closets and His and Hers bath areas. Two family bedrooms, each with a walk-in closet, share a bath that offers private vanities. A fourth bedroom, near the service entrance, features a private bath and a walk-in closet.

Full Specs & Features


Dimension

Depth : 84' 11"

Height : 25'

Width : 73'

Area

First Floor: 2706 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Guest Suite

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Garage Features

Side Entry Garage

Rooms

3rd BR Closet:

17 sq/ft width 5' 6" x depth 3' 2"

Bedroom 2:

137 sq/ft width 11' x depth 12' 6"

Bedroom 2 Closet:

20 sq/ft width 5' 2" x depth 4'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 3 Closet:

20 sq/ft width 5' 2" x depth 4'

Bedroom 4:

123 sq/ft width 11' 6" x depth 10' 9"

Bedroom 4 Closet:

24 sq/ft width 4' 6" x depth 5' 6"

Breakfast Room:

143 sq/ft width 13' x depth 11'

Dining Room:

189 sq/ft width 15' 8" x depth 12' 1"

Foyer:

55 sq/ft width 10' x depth 5' 6"

Garage:

400 sq/ft width 20' x depth 20'

Gathering Room:

361 sq/ft width 19' x depth 19'

Hall Closet:

4 sq/ft width 3' 2" x depth 1' 6"

Kitchen:

234 sq/ft width 13' x depth 18'

Master Bedroom:

200 sq/ft width 14' 6" x depth 13' 10"

Master Closet:

43 sq/ft width 7' x depth 6' 2"

Slab Foundation:

6198 sq/ft width 84' 11" x depth 73'

Storage:

38 sq/ft width 14' 6" x depth 2' 8"

Study:

134 sq/ft width 12' 4" x depth 10' 11"

Utility Room:

71 sq/ft width 11' x depth 6' 6"

What's Included


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

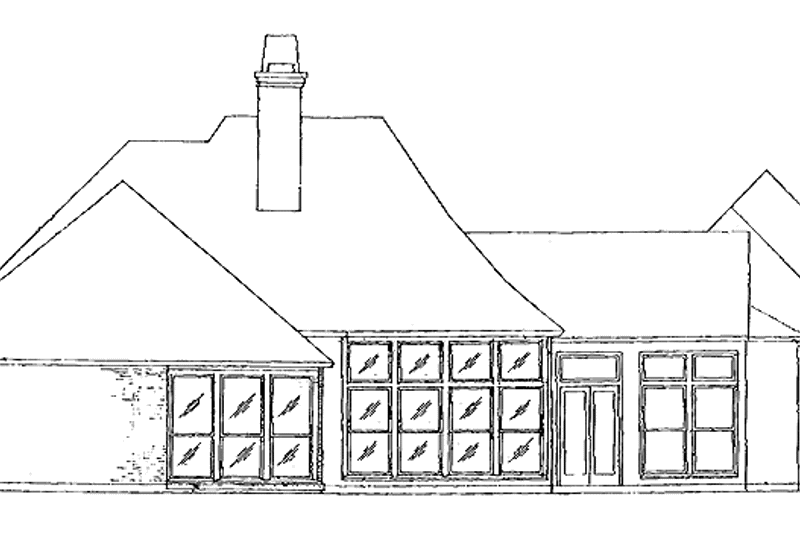

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

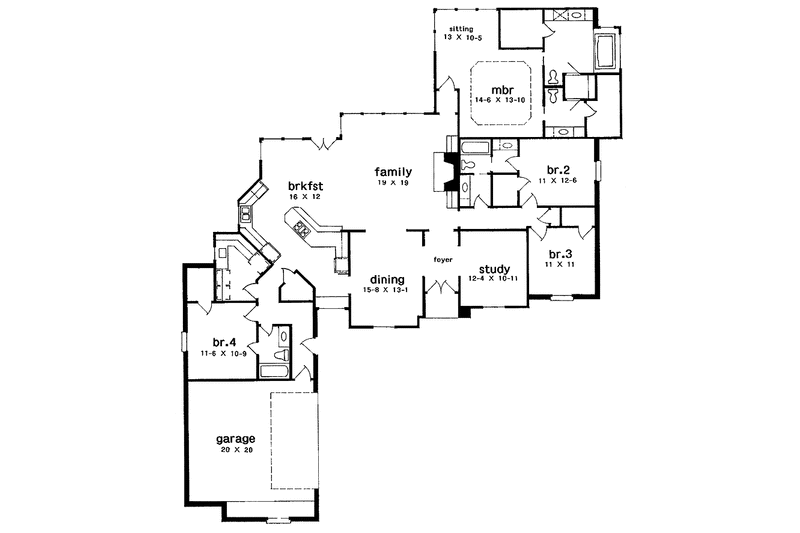

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

5 Copy Set:
$1071.00
5 printed plan sets mailed to you.
8 Copy Set:
$1176.00
8 printed plan sets mailed to you.
Reproducible Set:
$1176.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set:
$861.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
