PLAN 301-156
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description
Full Specs & Features
Height : 29'
Width : 38'
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Island
Kitchenette Wet Bar
Main Floor Laundry
Open Floor Plan
Storage Area
Covered Rear Porch
3rd BR Closet:
11 sq/ft width 2' x depth 5' 11"
Bathroom 2:
50 sq/ft width 5' x depth 10'
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 2 Closet:
11 sq/ft width 2' x depth 5' 10"
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 3 Closet:
11 sq/ft width 2' x depth 5' 10"
Foyer:
45 sq/ft width 9' x depth 5'
Garage:
405 sq/ft width 19' 4" x depth 21'
Gathering Room:
412 sq/ft width 27' 6" x depth 15'
Kitchen:
279 sq/ft width 15' 6" x depth 18'
Laundry Room:
44 sq/ft width 5' 6" x depth 8'
Master Bathroom:
135 sq/ft width 15' x depth 9'
Master Bedroom:
232 sq/ft width 18' 7" x depth 12' 6"
Master Closet:
72 sq/ft width 8' x depth 9'
Porch - Rear:
108 sq/ft width 15' 6" x depth 7'
Powder Room:
28 sq/ft width 5' 6" x depth 5' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

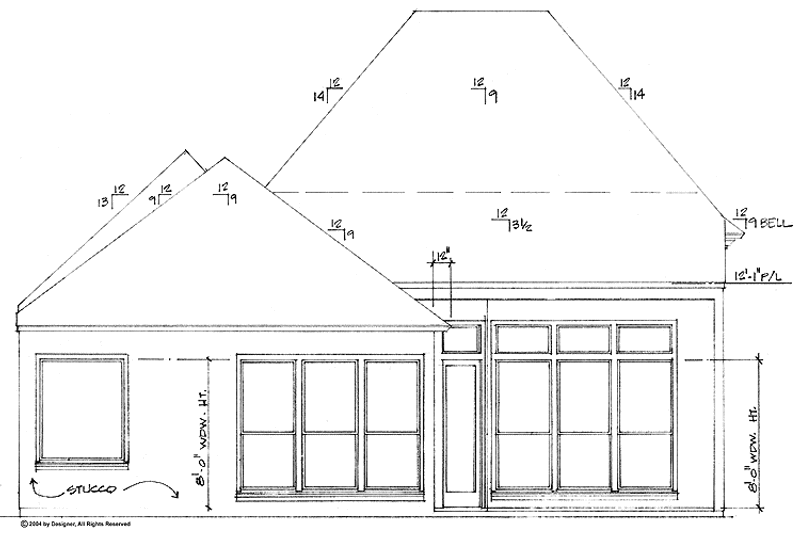

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

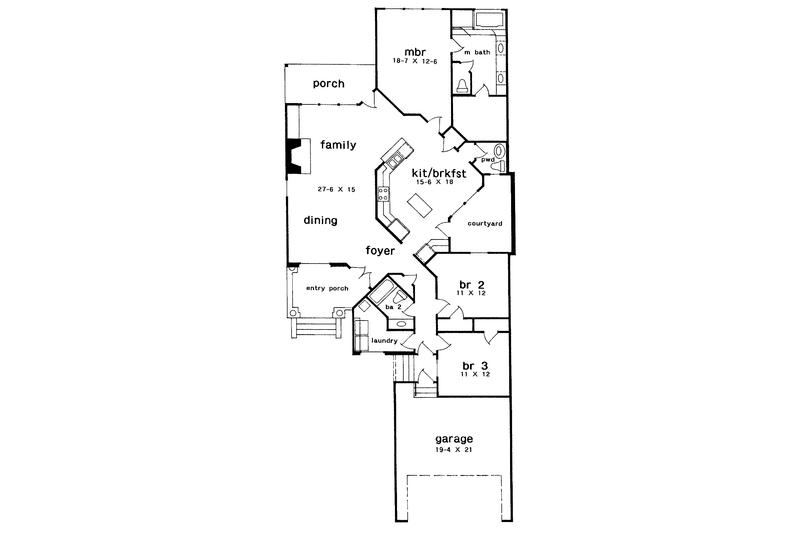

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
5 Copy Set : $803.25 |
5 printed plan sets mailed to you. |
8 Copy Set : $892.50 |
8 printed plan sets mailed to you. |
Reproducible Set : $892.50 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
Single Set : $624.75 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
Additional Construction Sets : $51.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
Lighting Design : $85.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
Mirror Reversed Sets : $51.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
