PLAN #20-1838

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$0.00
Subtotal
$925.00
Also order by phone: 1-800-528-8070
Cost-to-Build Estimates

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-528-8070
Got Questions?
Got Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #20-1838

Key Specs


2171
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Floor Plans


Floor Plan - Main Floor Plan

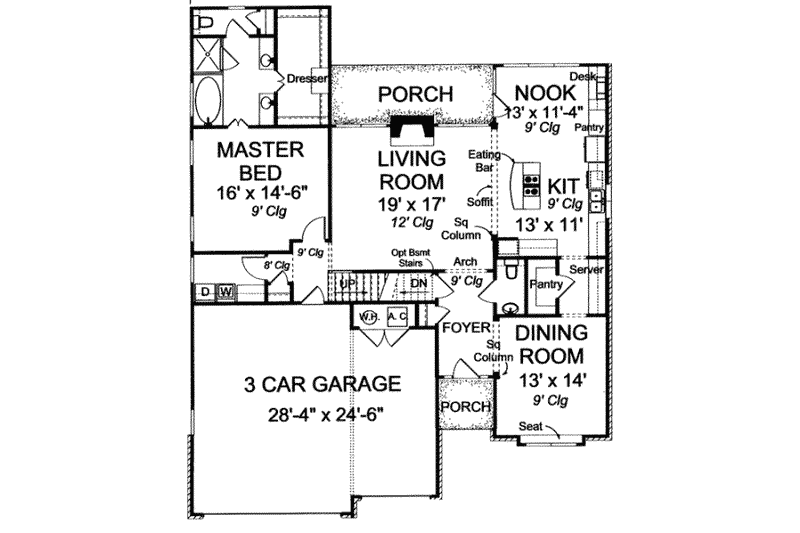

European Floor Plan - Main Floor Plan Plan #20-1838

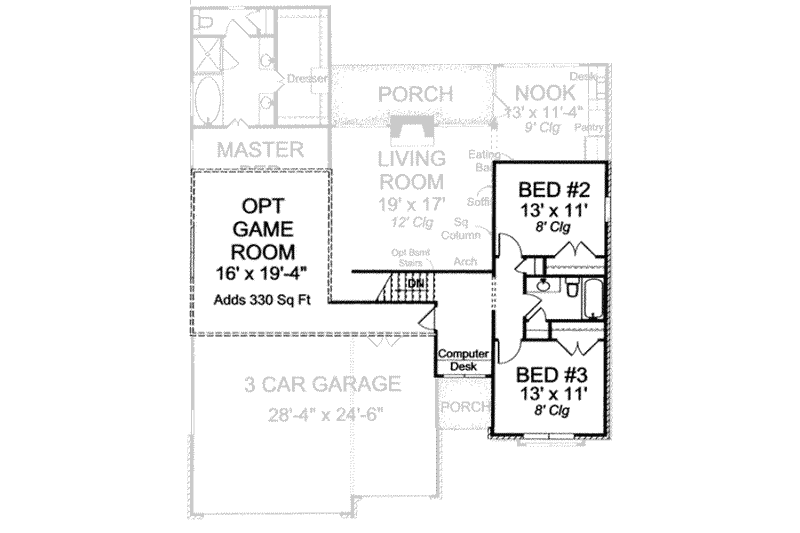

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #20-1838

Full Specs & Features


Dimension
Depth : 60'
Height : 27'
Width : 49'
Area
Bonus: 330 sq/ft
First Floor: 1639 sq/ft height 9'
Garage: 697 sq/ft
Second Floor: 532 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Truss
Primary Pitch : 9:12
Secondary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Rooms

Bathroom 2:

21 sq/ft width 3' 4" x depth 6' 6"

Bathroom 3:

46 sq/ft width 9' 4" x depth 5'

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 3:

143 sq/ft width 13' x depth 11'

Breakfast Room:

147 sq/ft width 13' x depth 11' 4"

Dining Room:

182 sq/ft width 13' x depth 14'

Foyer:

78 sq/ft width 6' 6" x depth 12'

Game Room:

309 sq/ft width 16' x depth 19' 4"

Garage:

694 sq/ft width 28' 4" x depth 24' 6"

Kitchen:

143 sq/ft width 13' x depth 11'

Kitchen Island:

22 sq/ft width 3' 6" x depth 6' 6"

Living Room:

323 sq/ft width 19' x depth 17'

Master Bathroom:

129 sq/ft width 9' 6" x depth 13' 8"

Master Bedroom:

232 sq/ft width 16' x depth 14' 6"

Master Closet:

902 sq/ft width 66' x depth 13' 8"

Utility Room:

44 sq/ft width 8' 4" x depth 5' 4"
