Full Specs & Features
Height : 25'
Width : 63'
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x6
Suited For View Lot
121 sq/ft width 11' x depth 11'
140 sq/ft width 10' x depth 14'
150 sq/ft width 15' x depth 10'
132 sq/ft width 11' x depth 12'
270 sq/ft width 15' x depth 18'
180 sq/ft width 15' x depth 12'
204 sq/ft width 17' x depth 12'
195 sq/ft width 13' x depth 15'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

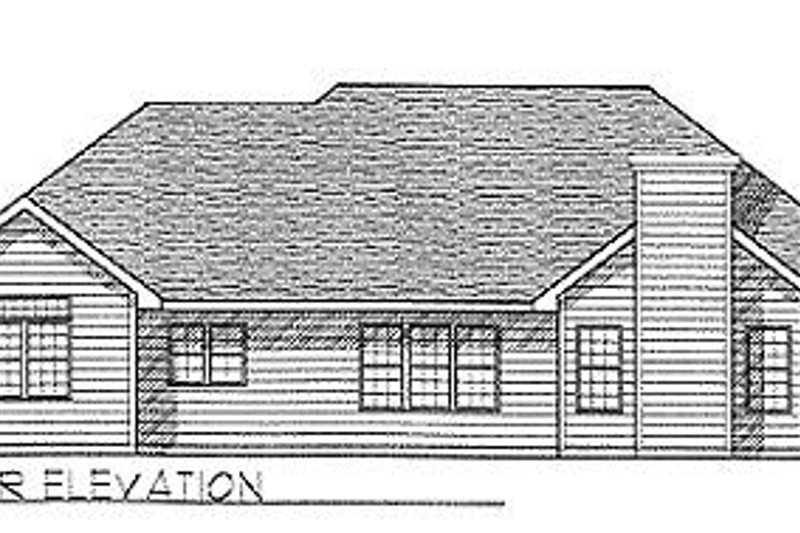

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
