PLAN 17-3161
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (1)
Get Personalized Help
Key Specs
2110
sq ft
4
Beds
4
Baths
1
Floors
0
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-3161
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

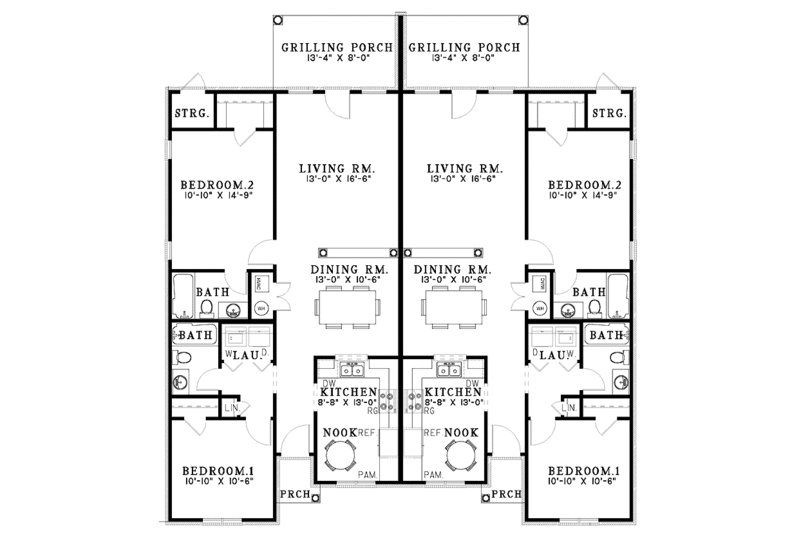

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth: 54'
Height: 22' 2"
Width: 49' 6"
Area
First Floor: 1055 sq/ft height 8'
First Floor: 1055 sq/ft
Roof
Primary Pitch: 8:12
Roof Framing: Conventional
Roof Type: Asphalt
Exterior Wall Framing
Exterior Wall Finish: Brick
Framing: Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 1:
113 sq/ft width 10' 10" x depth 10' 6"
Bedroom 1:
113 sq/ft width 10' 10" x depth 10' 6"
Bedroom 2:
158 sq/ft width 10' 10" x depth 14' 8"
Bedroom 2:
159 sq/ft width 10' 10" x depth 14' 9"
Dining Room:
136 sq/ft width 13' x depth 10' 6"
Dining Room:
136 sq/ft width 13' x depth 10' 6"
Grilling Porch:
106 sq/ft width 13' 4" x depth 8'
Grilling Porch:
106 sq/ft width 13' 4" x depth 8'
Kitchen:
125 sq/ft width 9' 8" x depth 13'
Kitchen:
126 sq/ft width 9' 9" x depth 13'
Living Room:
240 sq/ft width 13' x depth 18' 6"
Living Room:
214 sq/ft width 13' x depth 16' 6"
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- Floor Plan(s): Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Exterior Elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Overhead Roof Plan(s): This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
- Cross Section(s): **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Building Section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): These are included for many interior and exterior conditions that require more specific information for their construction.
Plan Set
$1200.00
$1600.00
$1850.00
Foundation
$0.00
$0.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$165.00
$295.00
$39.00
$165.00
$199.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
