Full Specs & Features
Height : 27'
Width : 67'
Roof Framing : Truss
Framing : Wood - 2x6
Side Entry Garage
Suited For View Lot

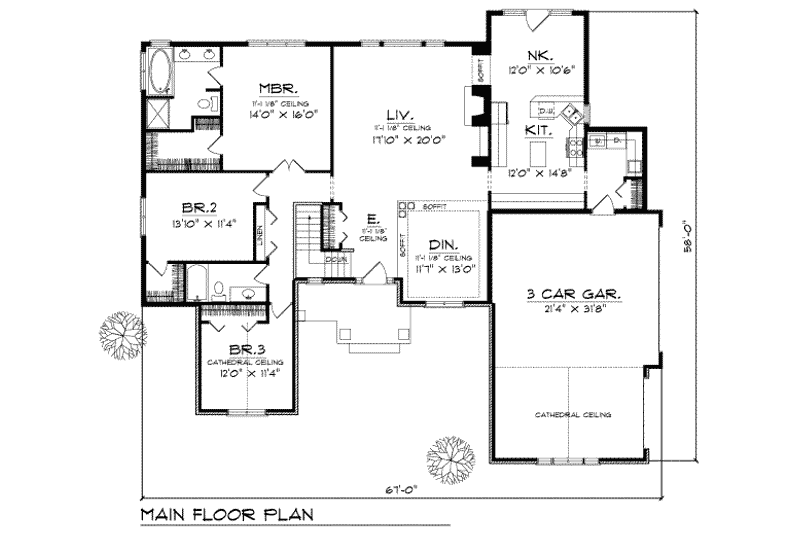

156 sq/ft width 13' 10" x depth 11' 4"
135 sq/ft width 12' x depth 11' 4"
126 sq/ft width 12' x depth 10' 6"
150 sq/ft width 11' 7" x depth 13'
675 sq/ft width 21' 4" x depth 31' 8"
176 sq/ft width 12' x depth 14' 8"
356 sq/ft width 17' 10" x depth 20'
224 sq/ft width 14' x depth 16'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
