PLAN 70-643

Traditional Exterior - Rear Elevation Plan #70-643

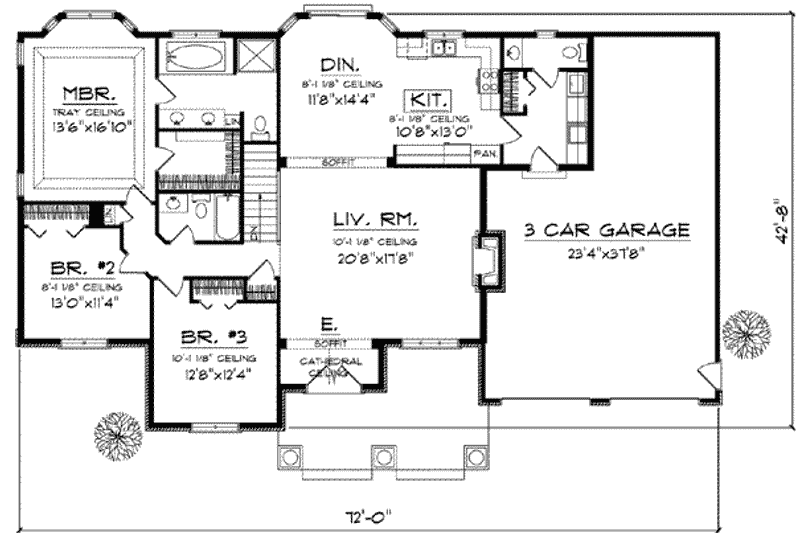

Traditional Floor Plan - Main Floor Plan Plan #70-643

Select Plan Set Options

What's included?

	Right-Reading Reverse $335.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $65.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $100.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $55.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$949.00

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

We do our best to get back within 24 - 48 business hours.

Need an answer fast? Call us now.

Phone 1-800-528-8070

Hours Mon-Fri, 9 am - 8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 10% on your first home plan order, plus exclusive discounts and more.

Join for FREE

Learn More

PLAN 70-643

Key Specs

1895
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 42' 8"
Height : 27'
Width : 72'

Area

First Floor: 1895 sq/ft height 8'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x6"

Bedroom Features

Walk In Closet

Kitchen Features

Kitchen Island

Garage Features

Oversized Garage
Tandem Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch

Rooms

3rd BR Closet:

10 sq/ft width 5' 2" x depth 2'

Basement Foundation:

3096 sq/ft width 72' x depth 43'

Bedroom 2:

147 sq/ft width 13' x depth 11' 4"

Bedroom 2 Closet:

13 sq/ft width 6' 8" x depth 2'

Bedroom 3:

156 sq/ft width 12' 8" x depth 12' 4"

Bedroom 3 Closet:

13 sq/ft width 6' 8" x depth 2'

Dining Room:

167 sq/ft width 11' 8" x depth 14' 4"

Foyer:

36 sq/ft width 10' 4" x depth 3' 6"

Garage:

878 sq/ft width 23' 4" x depth 37' 8"

Hall:

43 sq/ft width 13' 2" x depth 3' 4"

Hall Bathroom:

41 sq/ft width 8' 4" x depth 5'

Hall Closet:

6 sq/ft width 3' x depth 2'

Kitchen:

188 sq/ft width 10' 8" x depth 17' 8"

Laundry Room:

83 sq/ft width 8' 8" x depth 9' 8"

Living Room:

365 sq/ft width 20' 8" x depth 17' 8"

Master Bathroom:

113 sq/ft width 12' 2" x depth 9' 4"

Master Bedroom:

227 sq/ft width 13' 6" x depth 16' 10"

Master Closet:

49 sq/ft width 8' 4" x depth 6'

Powder Room:

26 sq/ft width 8' 8" x depth 3'

Slab Foundation:

924 sq/ft width 24' 4" x depth 38'

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

» See important information before purchasing.

Plan Set

5 Copy Set : $949.00	5 printed plan sets mailed to you.
8 Copy Set : $1000.00	8 printed plan sets mailed to you.
PDF Set : $1188.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1188.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1887.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $335.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $335.00	Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse : $335.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $65.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $55.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
