PLAN 46-827
Photographs may show modified designs.
- Jump to:
- All (9)
- Floor plans (3)
Get Personalized Help
Key Specs
1863
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 46-827
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
A beautiful exterior of brick and stone in a carriage-style facade introduces a functional floor plan that enjoys a large great room with gas fireplace and built-in cabinets. The spacious dining area can serve formal and informal gatherings and an island with seating defines the kitchen. The master suite with private bath and walk-in closet is located on the second floor, with two additional bedrooms and a laundry room nearby.
Floor Plans

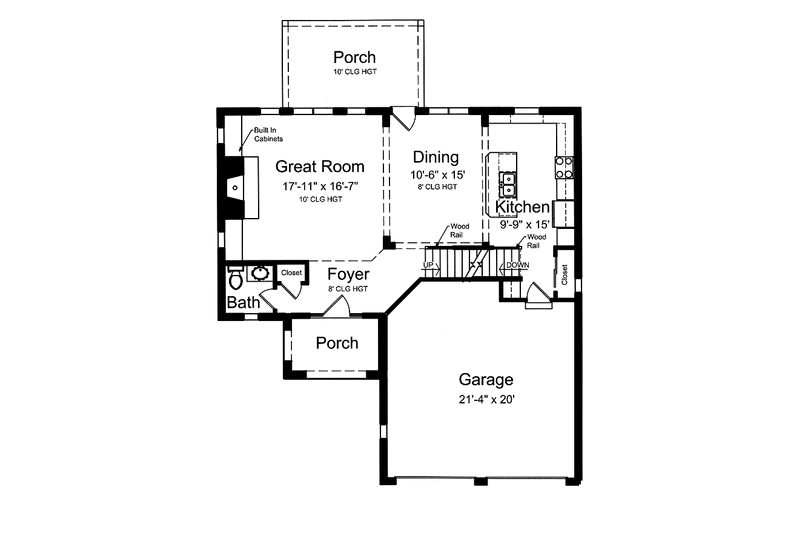

Floor Plan - Main Floor

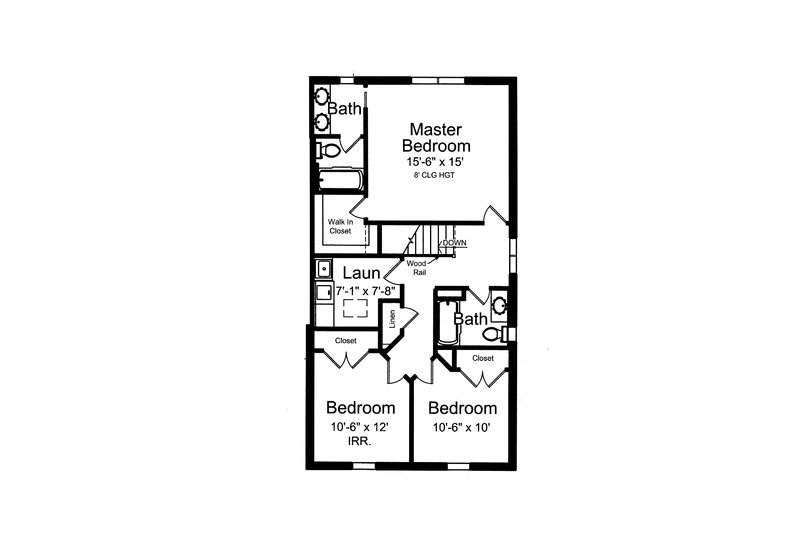

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 52' 7"
Height : 31'
Width : 41'
Area
Basement Unfinished: 906 sq/ft
First Floor: 906 sq/ft height 8'
Garage: 449 sq/ft height 8'
Second Floor: 957 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
126 sq/ft width 10' 6" x depth 12'
Bedroom 3:
105 sq/ft width 10' 6" x depth 10'
Covered Front Porch:
59 sq/ft
Covered Rear Porch:
153 sq/ft
Dining Room:
157 sq/ft width 10' 6" x depth 15'
Garage:
426 sq/ft width 21' 4" x depth 20'
Great Room:
297 sq/ft width 17' 11" x depth 16' 7"
Kitchen:
146 sq/ft width 9' 9" x depth 15'
Laundry Room:
54 sq/ft width 7' 1" x depth 7' 8"
Master Bedroom:
232 sq/ft width 15' 6" x depth 15'
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
» See important
information before purchasing.

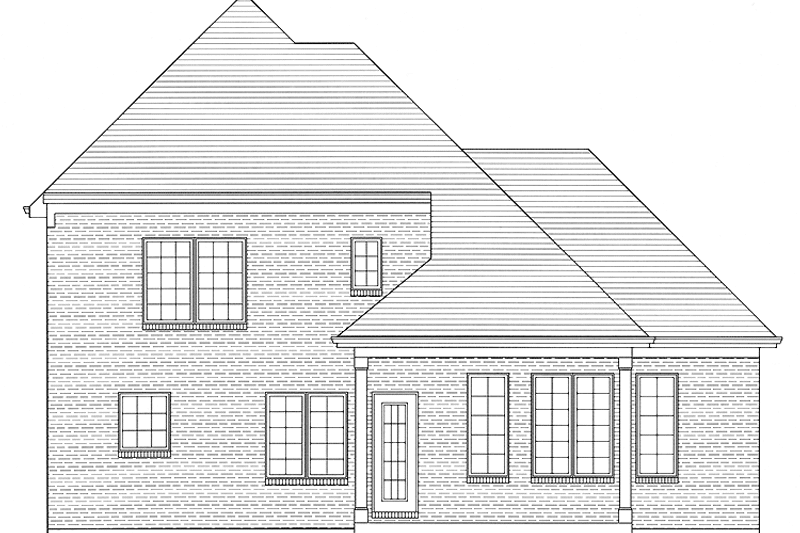

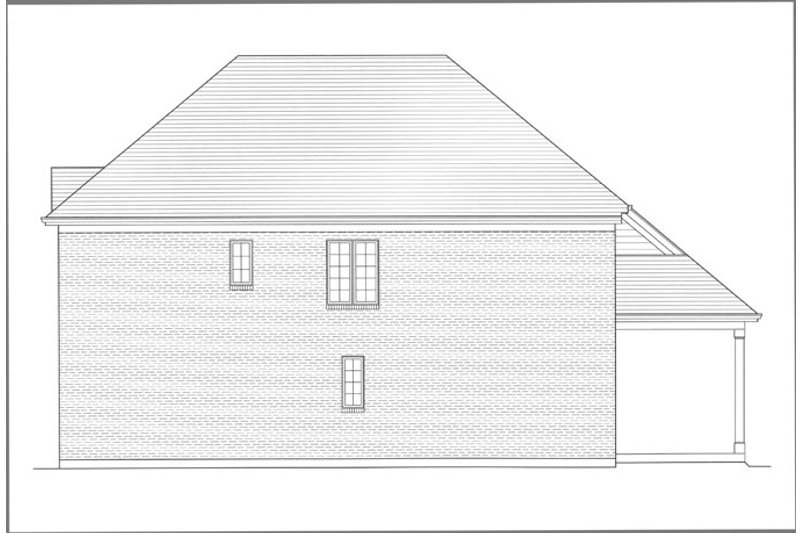

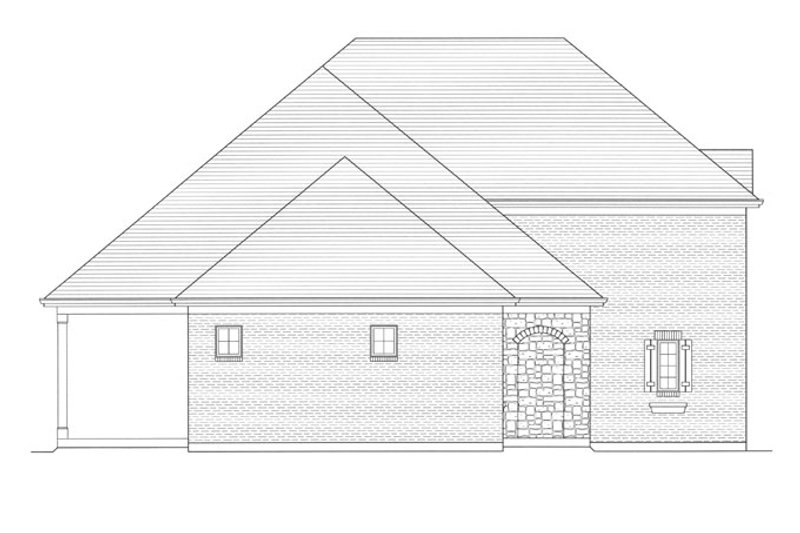

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$950.00
$950.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1000.00
$1000.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set:
$1030.00
$1030.00
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1475.00
$1475.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1475.00
$1475.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$720.00
$720.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$250.00
$250.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$85.00
$85.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets:
$50.00
$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
