PLAN #70-1301

Key Specs


1859
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Plan Description


This traditional style ranch has a two stall garage with the option of a thrid stall or storage space. As you enter the home you can see all the way to the back because of the open foyer and living room. From the living room to the kitchen/nook area there are decorative columns with a osffit above. The soffit and columns give the living room a little separation from the kitchen but not so much that it looks enclosed. To the right of the house are all three bedrooms. The added angles in the master bedroom give this room a sense of greatness.

Floor Plans


Floor Plan - Main Floor Plan

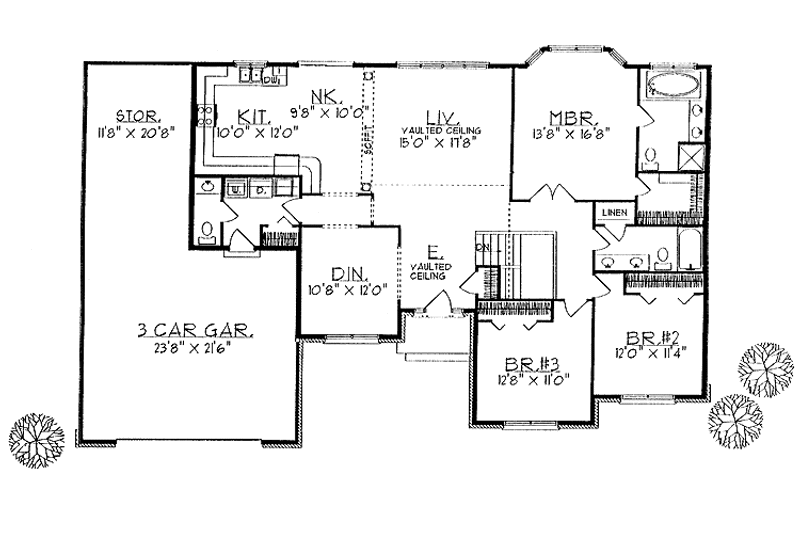

Ranch Floor Plan - Main Floor Plan Plan #70-1301

Full Specs & Features


Dimension
Depth : 43'
Height : 23'
Width : 69' 8"
Area
First Floor: 1859 sq/ft height 8'
Bedroom Features
Main Floor Master Bedroom
Formal Dining Room
Kitchen Features
Breakfast Nook
Rooms

Bedroom 2:

135 sq/ft width 12' x depth 11' 4"

Bedroom 3:

139 sq/ft width 12' 8" x depth 11'

Breakfast Nook:

96 sq/ft width 9' 8" x depth 10'

Dining Room:

128 sq/ft width 10' 8" x depth 12'

Garage:

508 sq/ft width 23' 8" x depth 21' 6"

Garage Storage:

241 sq/ft width 11' 8" x depth 20' 8"

Kitchen:

120 sq/ft width 10' x depth 12'

Living Room:

265 sq/ft width 15' x depth 17' 8"

Master Bedroom:

227 sq/ft width 13' 8" x depth 16' 8"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$783.00
5 printed plan sets mailed to you.
8 Copy Set :
$823.50
8 printed plan sets mailed to you.
PDF Set :
$981.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$981.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1557.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$265.50
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$265.50
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Right-Reading Reverse :
265.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
