PLAN #70-160
ON SALE!
Photographs may show modified designs.
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
PLAN #70-160
Key Specs
1633
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.Need a quote fast? Call us at 1-800-528-8070.
Floor Plans

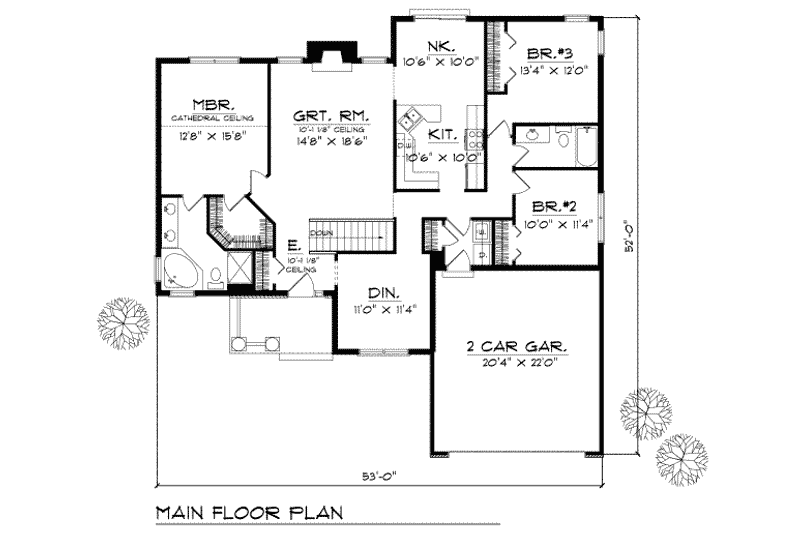

Floor Plan - Main Floor Plan
Full Specs & Features
Dimension
Depth : 52'
Height : 20'
Width : 53'
Height : 20'
Width : 53'
Area
First Floor: 1633 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Rooms
Bedroom 2:
113 sq/ft width 10' x depth 11' 4"
Bedroom 3:
159 sq/ft width 13' 4" x depth 12'
Breakfast Nook:
105 sq/ft width 10' 6" x depth 10'
Dining Room:
124 sq/ft width 11' x depth 11' 4"
Garage:
447 sq/ft width 20' 4" x depth 22'
Great Room:
271 sq/ft width 14' 8" x depth 18' 6"
Kitchen:
105 sq/ft width 10' 6" x depth 10'
Master Bedroom:
198 sq/ft width 12' 8" x depth 15' 8"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

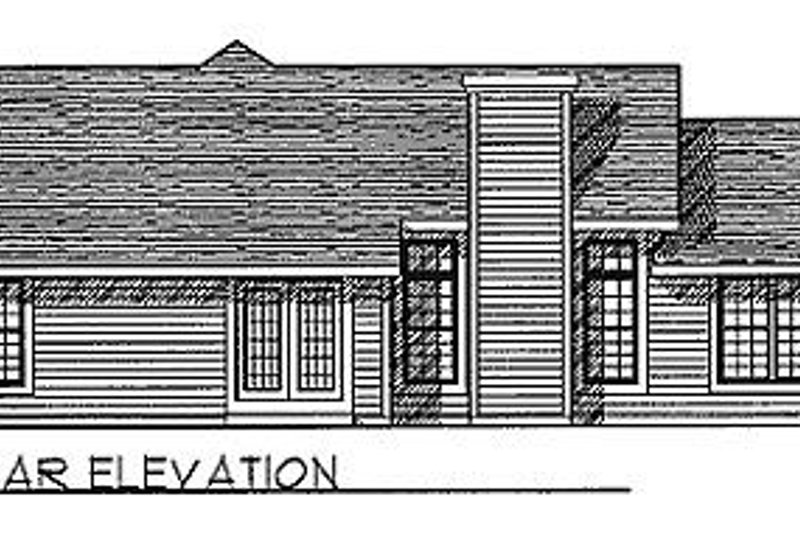

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
| 5 Copy Set
: $765.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $792.00 |
8 printed plan sets mailed to you. |
| PDF Set
: $945.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $945.00 |
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper. |
| CAD Set
: $1494.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $265.50 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $265.50 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse
: 265.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: 45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Mirror Reversed Sets
: 36.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an "unlimited" plan set or a multi-use
license you may only build one home plan from a set of plans. Plans cannot be re-sold.
