PLAN 513-2089
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

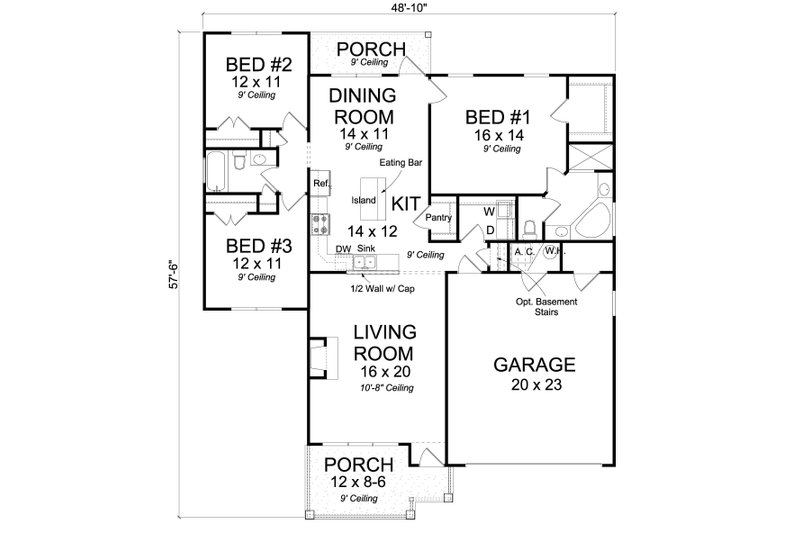

Floor Plan - Main Floor

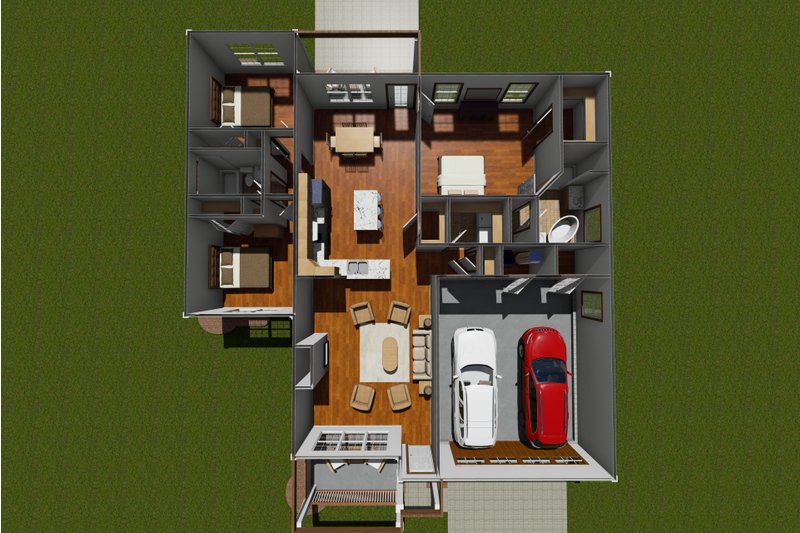

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth: 57' 6"
Height: 26'
Width: 48' 10"
Area
First Floor: 1570 sq/ft height 9'
Garage: 505 sq/ft height 9'
Ceiling
Main Ceiling: 9'
Roof
Primary Pitch: 10:12
Roof Framing: Truss
Roof Type: Shingle
Secondary Pitch: 8:12
Exterior Wall Framing
Exterior Wall Finish: Siding
Framing: 2x4
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Storage Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
width 8' x depth 5'
Bedroom 2:
width 12' x depth 11'
Bedroom 3:
width 12' x depth 11'
Dining Room:
width 14' x depth 11'
Foyer:
width 5' x depth 3'
Garage:
505 sq/ft width 20' x depth 23'
Kitchen:
width 14' x depth 12'
Kitchen Island:
width 5' x depth 3'
Living Room:
width 16' x depth 20'
Master Bathroom:
width 11' 4" x depth 11' 4"
Master Bedroom:
width 16' x depth 14'
Master Closet:
width 5' 2" x depth 7' 8"
Pantry:
width 5' x depth 3'
Porch - Front:
123 sq/ft
Porch - Rear:
72 sq/ft
Utility Room:
width 6' 8" x depth 5' 2"
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$1065.00
$1360.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
