Plan Description
This mediterranean design floor plan is 1542 sq ft and has 2 bedrooms and 2 bathrooms.
Floor Plans
Floor Plan - Main Floor

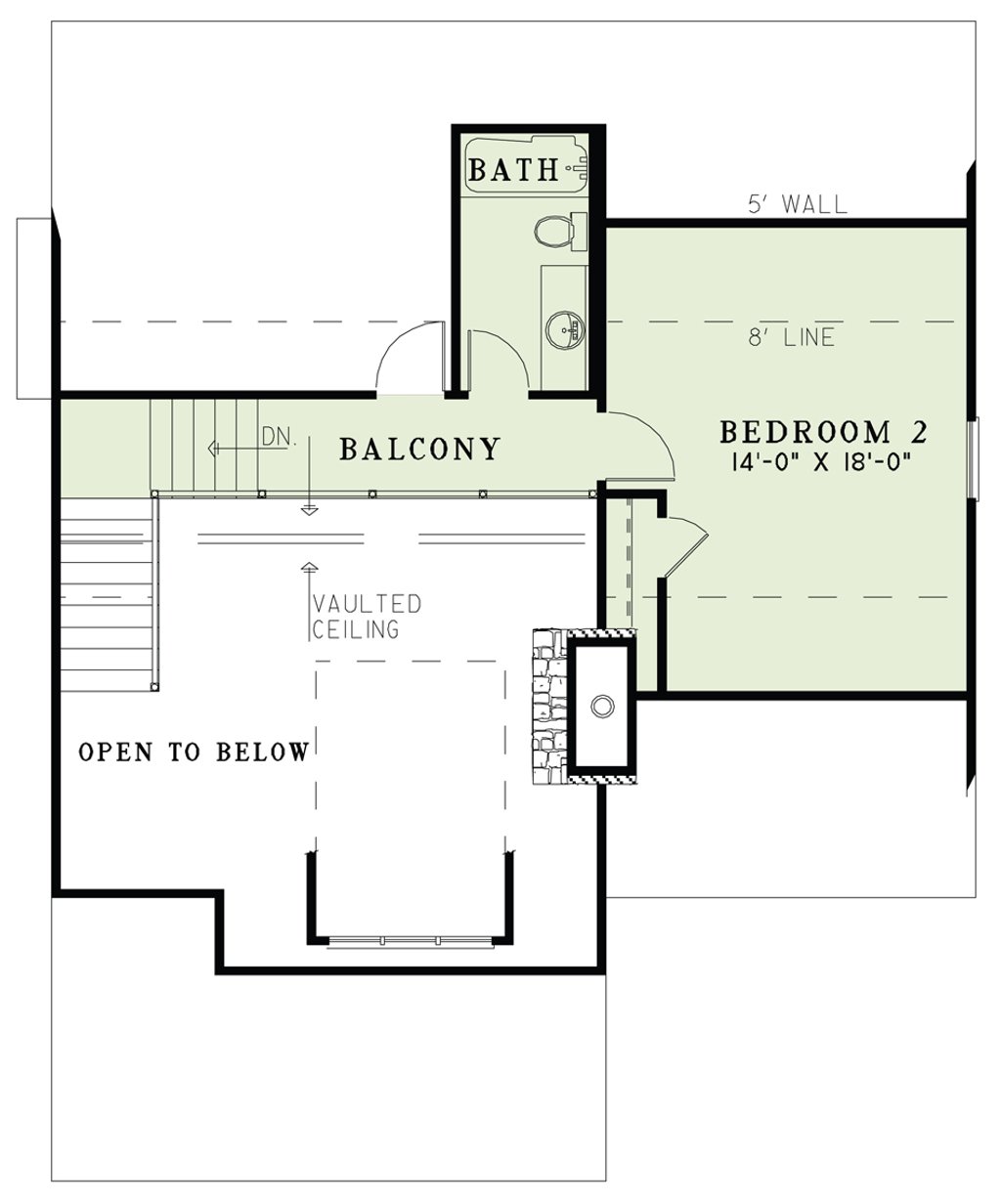

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 45'
Height : 25' 4"
Width : 37' 2"
Area
First Floor: 1016 sq/ft height 8'
Porch: 395 sq/ft
Second Floor: 383 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Loft
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 1:
214 sq/ft width 15' 4" x depth 14'
Bedroom 2:
252 sq/ft width 14' x depth 18'
Covered Porch:
172 sq/ft width 21' 6" x depth 8'
Den:
378 sq/ft width 20' 10" x depth 18' 2"
Dining Room:
171 sq/ft width 14' 4" x depth 12'
Grilling Porch:
84 sq/ft width 10' 6" x depth 8'
Kitchen:
186 sq/ft width 14' x depth 13' 4"
