Plan Description
If you are looking for an apartment garage that will give you a unique blend of textures, look no further. A mixture of stone, siding, and wood gives this garage a modern rustic feel. On the main level, you find a 2 car garage that includes a workshop with a built-in workbench. Upstairs you'll find a wonderfully efficient 1 bedroom apartment. The apartments open floor plan makes great use of the space. The kitchen includes a pantry and a large island with a snack bar. The main bedroom and the main living space share a convenient bathroom.
Floor Plans

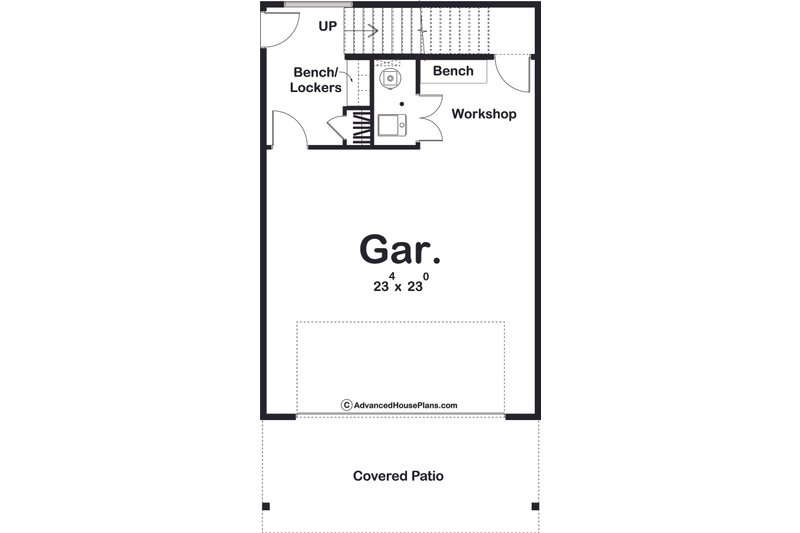

Floor Plan - Main Floor

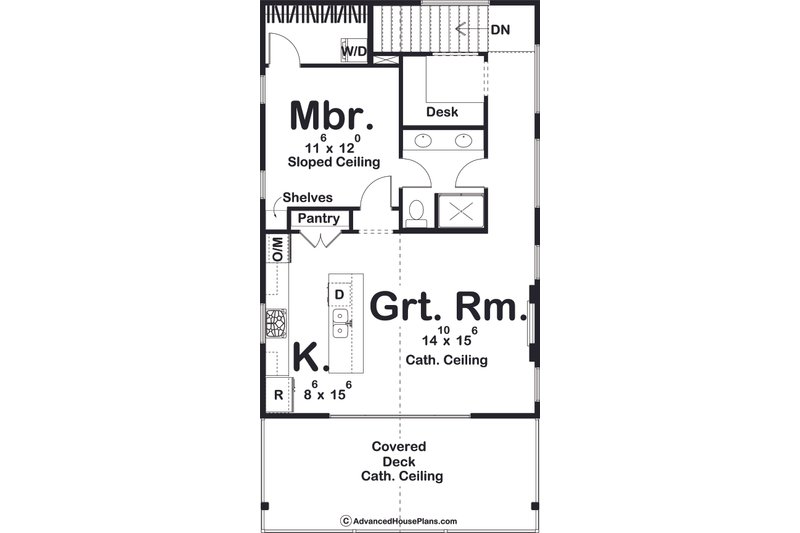

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 25'
Width : 24'
Area
Garage : 641 sq/ft
Main Floor : 223 sq/ft
Upper Floor : 807 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The living room and covered deck have cathedral ceilings. The master bedroom has a sloped ceiling.
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 6/12
Roof Framing : Stick
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Upstairs Laundry
Workshop
Garage Features
Garage Under
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
