PLAN 47-660
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Modify This PlanPlan Description
This open-plan cottage is perfect for family living or as a getaway for relaxing vacations. The living area is totally open and acts as a living room/dining room and corner kitchen. A fireplace at one end adds a warm glow on chilly evenings. Sliding glass doors here open to a wide deck for outdoor enjoyment or alfresco dining. Three bedrooms allow plenty of sleeping space. The master bedroom overlooks views beyond the deck. All three bedrooms share a full bath that includes a separate vanity area. The laundry room is large enough to hold a washer and dryer and also serves as a mudroom.
Floor Plans

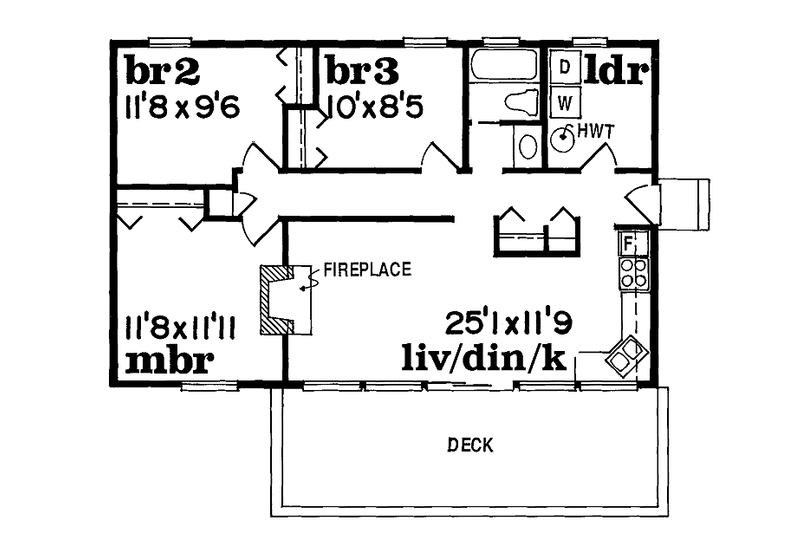

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 25'
Height : 14'
Width : 38'
Area
First Floor: 950 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 5:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
8 sq/ft width 4' x depth 2'
Bedroom 2:
110 sq/ft width 9' 6" x depth 11' 8"
Bedroom 2 Closet:
8 sq/ft width 4' x depth 2'
Bedroom 3:
84 sq/ft width 8' 5" x depth 10'
Bedroom 3 Closet:
8 sq/ft width 4' x depth 2'
Crawlspace Foundation:
950 sq/ft width 25' x depth 38'
Hall:
38 sq/ft width 3' 10" x depth 10'
Hall Bathroom:
42 sq/ft width 8' 6" x depth 5'
Hall Closet:
10 sq/ft width 2' x depth 5'
Kitchen:
298 sq/ft width 11' 11" x depth 25' 1"
Master Bedroom:
139 sq/ft width 11' 11" x depth 11' 8"
Master Closet:
12 sq/ft width 2' x depth 6'
Utility Room:
59 sq/ft width 8' 6" x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
