PLAN 455-645
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This is a stunning 7-car garage with a shop and lounge area. It is every car-lovers dream. The modern details scream luxury from the outside to the inside. Inside is space to show off many of your favorite cars. There is a shop area to store all of your tools as well. The main floor includes a bath, a mechanical room, and a storage room. Heading upstairs is a large lounge area equipped with a fireplace and a plexiglass floor so you can look down and see your vehicle in the 7th bay.
Floor Plans

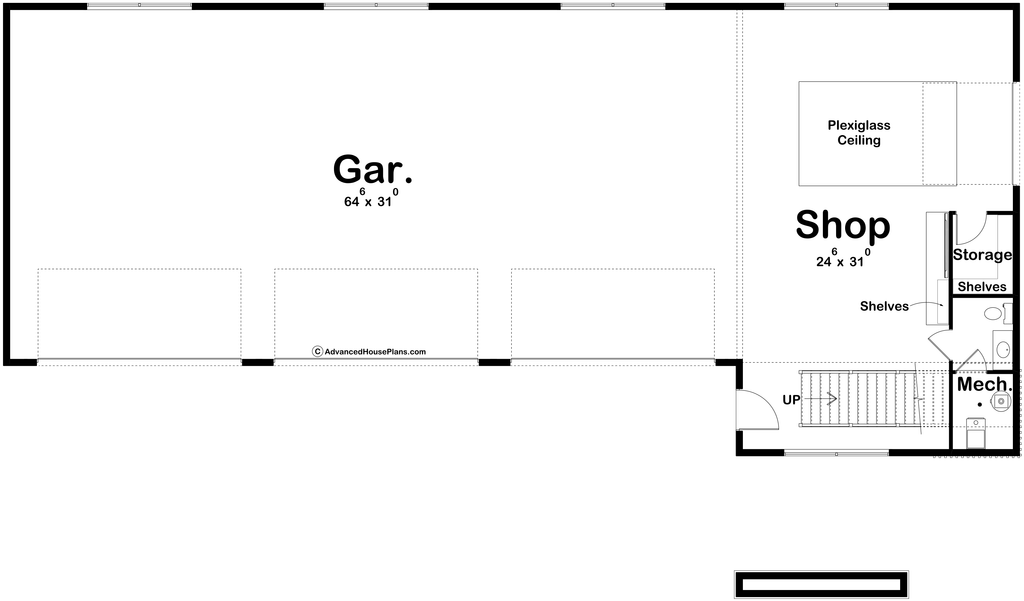

Floor Plan - Main Floor

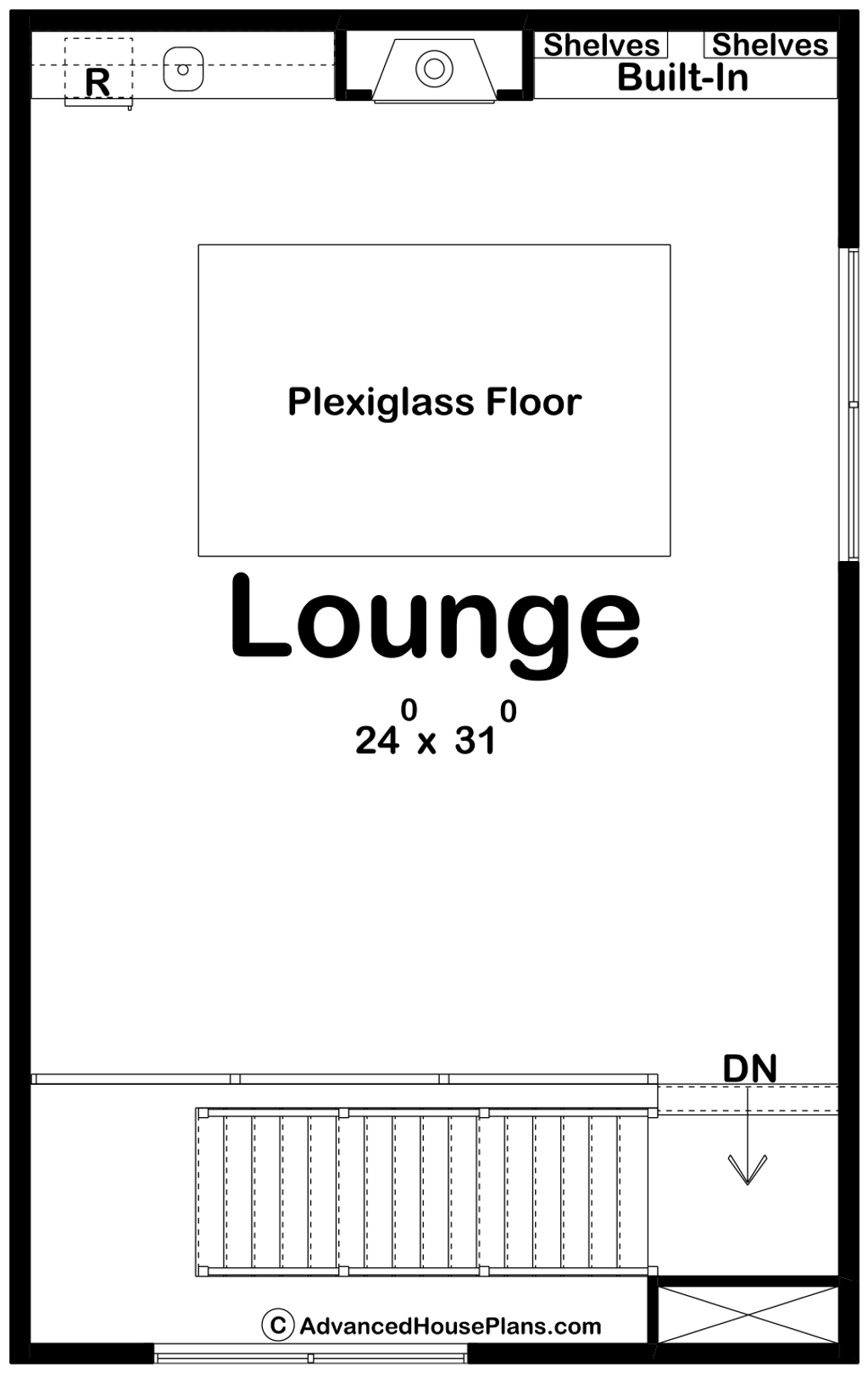

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 40'
Height: 26' 6"
Width: 90'
Area
Garage: 2946 sq/ft
Main Floor: 40 sq/ft
Upper Floor: 795 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling: 10'
Upper Ceiling Ft: 10'
Roof
Primary Pitch: 2/12
Roof Framing: Trusses
Exterior Wall Framing
Framing: 2x6
Additional Room Features
Storage Area
Workshop
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
