Plan Description


A turret and stunning arched windows hint at the luxury that waits inside this magnificent Italianate design. Highlights include the super-spacious kitchen, the family room's disappearing walls that open it to outdoor living spaces, and a private exercise room connected to the master suite. Every secondary bedroom includes a private bath, making this an ideal setup for owners with adult children or frequent visitors. A game room and connecting theater are ready for fun. The spacious outdoor kitchen invites everyone to pull up a seat at the bar, or around the fireplace on chilly evenings.

Full Specs & Features


Dimension

Depth : 143' 6"

Height : 28'

Width : 95'

Area

First Floor: 6248 sq/ft

Garage: 1449 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Master Sitting Area

Media Room

Mud Room

Open Floor Plan

Storage Area

Vaulted / Cathedral Ceilings

Garage Features

Golf Cart Storage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Outdoor Fireplace

Outdoor Kitchen Grill

Rooms

Bedroom 2:

255 sq/ft width 19' 7" x depth 13'

Bedroom 3:

255 sq/ft width 19' 7" x depth 13'

Breakfast:

121 sq/ft width 11' x depth 11'

Covered Front Porch:

153 sq/ft

Covered Game Lanai:

137 sq/ft

Covered Lanai:

279 sq/ft

Covered Outdoor Living:

228 sq/ft width 12' x depth 19'

Dining Room:

195 sq/ft width 13' x depth 15'

Exercise Room:

286 sq/ft width 22' x depth 13'

Family Room:

306 sq/ft width 17' x depth 18'

Foyer:

49 sq/ft width 7' x depth 7'

Game Room:

615 sq/ft width 23' 6" x depth 26' 2"

Garage 1:

width 24' x depth 24'

Garage 2:

width 26' x depth 26'

Guest Room:

235 sq/ft width 19' 7" x depth 12'

Kitchen:

252 sq/ft width 14' x depth 18'

Master Bedroom:

352 sq/ft width 22' x depth 16'

Music Room:

195 sq/ft width 13' x depth 15'

Office:

414 sq/ft

Theater Room:

418 sq/ft width 23' 5" x depth 17' 10"

What's Included


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

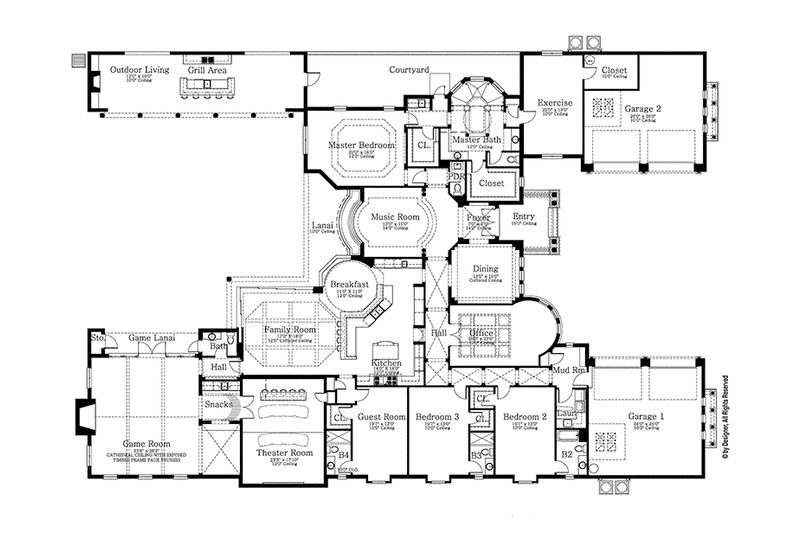

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

5 Copy Set:
$5500.00
5 printed plan sets mailed to you.
CAD Set:
$5900.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set:
$5900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Right-Reading Reverse:
$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$70.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$2950.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
