PLAN #928-8

Key Specs


5977
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description

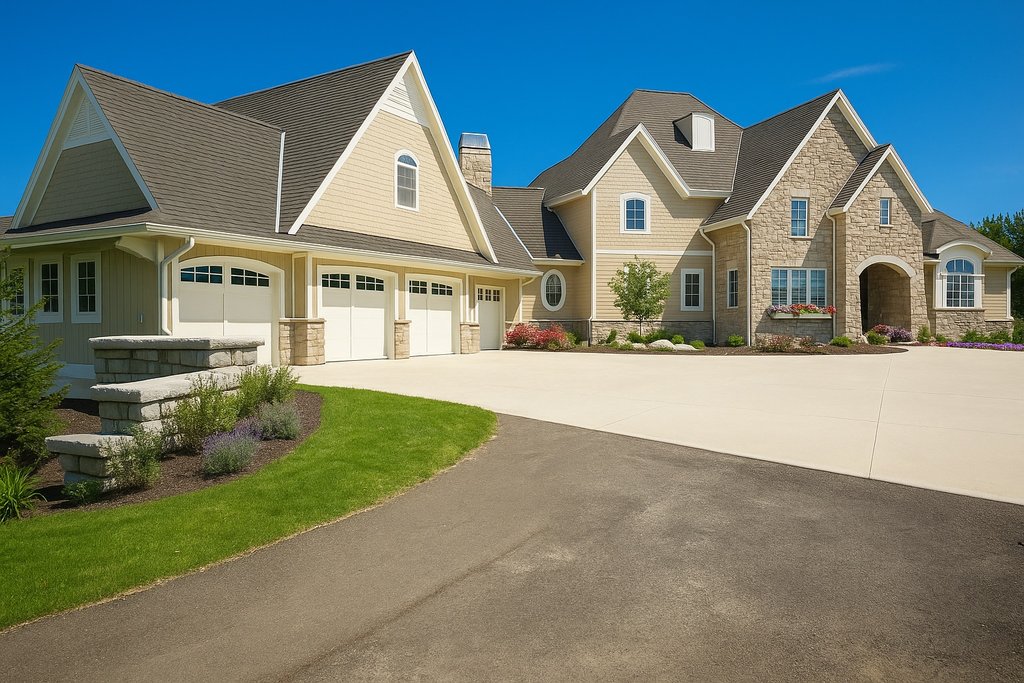

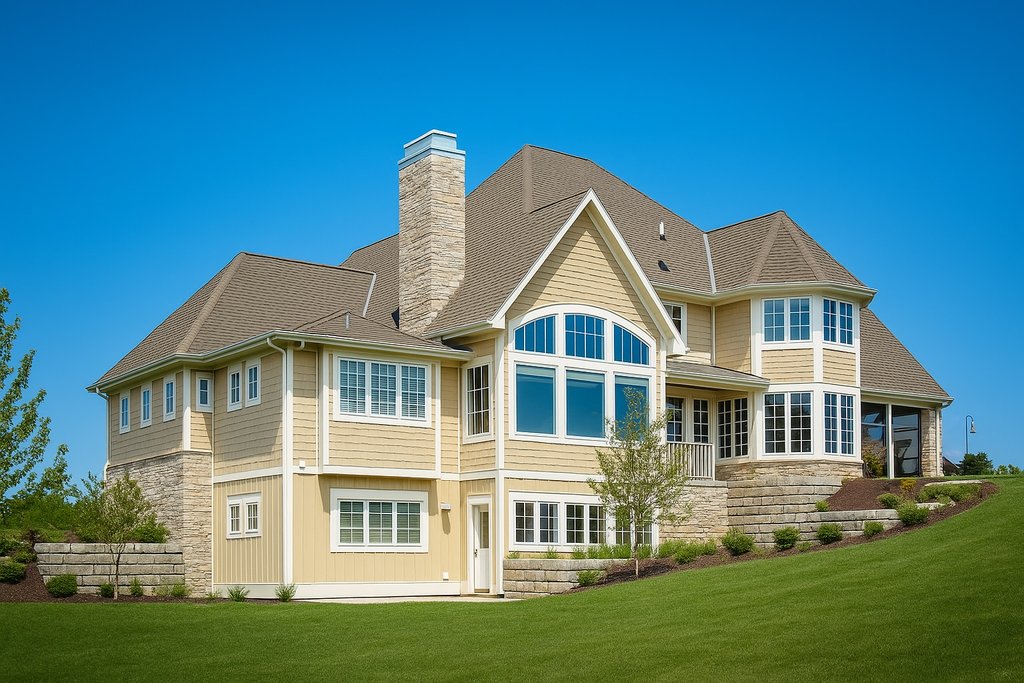

The traditional stone-and-shingle exterior of this 4 bedroom 3 bath plan projects an Old World esthetic but inside it's all about efficient amenity-rich modern living. The central spine or hall connects a study and computer center on one side with the open living/dining/ kitchen on the other. The island kitchen opens to a spacious screened porch complete with fireplace. The ground floor master suite occupies its own wing and shares back-to-back fireplaces with the living room. Upstairs are two more bedroom suites and a loft; the basement contains another bedroom suite, a kitchenette, theater, and sports court. The design was a first place finish in the Model Home category at the 2013 American Residential Design Awards.

Floor Plans


Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #928-8
Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #928-8
Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #928-8

Full Specs & Features


Dimension
Depth : 77' 4"
Height : 39'
Width : 124' 4"
Area
Basement Unfinished: 1955 sq/ft height 9'
First Floor: 2819 sq/ft height 9' 1"
Garage: 1111 sq/ft
Second Floor: 1203 sq/ft height 8' 1"
Ceiling
Lower Ceiling : 9'
Main Ceiling : 9' 1"
Upper Ceiling Ft : 8' 1"
Roof
Roof Framing : Truss
Primary Pitch : 14:12
Secondary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Sunroom
Garage Features
Oversized Garage
Outdoor Spaces
Screened Porch
Rooms

Bedroom 1:

width 16' 6" x depth 13'

Bedroom 2:

width 12' 3" x depth 12' 3"

Bedroom 3:

width 13' 11" x depth 12'

Bedroom 5:

width 14' x depth 17' 7"

Garage:

1111 sq/ft width 28' x depth 42'

Kitchen:

width 15' 6" x depth 21' 2"

Laundry Room:

96 sq/ft width 9' 5" x depth 10' 2"

Living Room:

width 23' 6" x depth 17'

Master Bath:

width 10' 2" x depth 16' 8"

Master Bedroom:

width 14' 6" x depth 17' 3"

Porch Screened:

371 sq/ft

Rec. Room:

width 28' x depth 18'

Sports Court:

width 22' 6" x depth 25'

Study:

width 13' 3" x depth 12'

Theater:

width 12' 3" x depth 18'

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
$1995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
