House Plan Design - Tudor Exterior - Front Elevation Plan #124-748

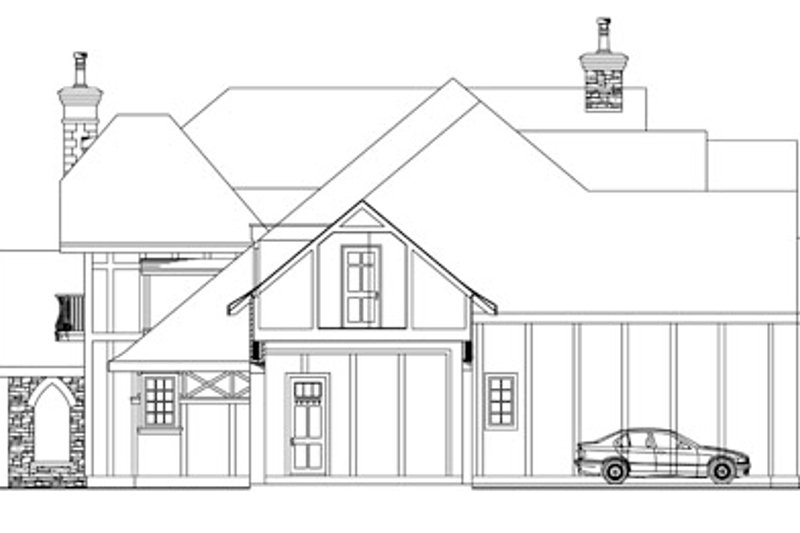

House Plan Design - Tudor Exterior - Other Elevation Plan #124-748

House Plan Design - Tudor Exterior - Rear Elevation Plan #124-748

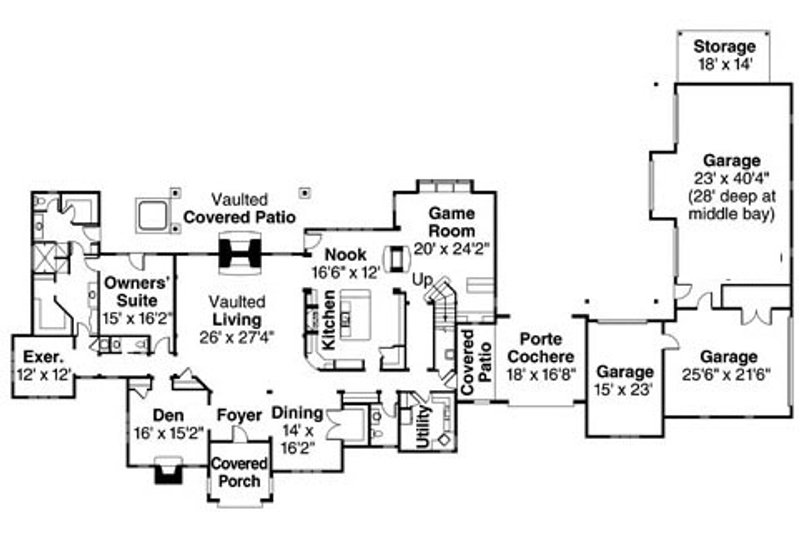

House Plan Design - Tudor Floor Plan - Main Floor Plan #124-748

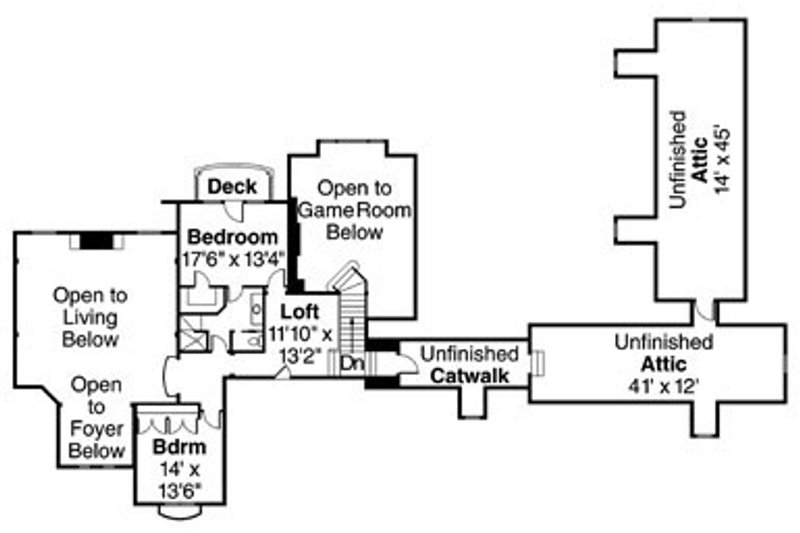

House Plan Design - Tudor Floor Plan - Upper Floor Plan #124-748

Jump to:
All (6)
Exterior (4)
Floor plans (2)

Get Personalized Help

Home > Style > Tudor Home Plans

Key Specs

5024
sq ft

3
Beds

2.5
Baths

2
Floors

6
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$488.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$76.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$2018.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$420.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $2528.75

You save $446.25 (15% savings)

Sale ends soon!

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 124-748

Home > Style > Tudor Home Plans

Key Specs

5024
sq ft

3
Beds

2.5
Baths

2
Floors

6
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Fascinating facade, luxurious two-story spread designed for living large, indoors and out. Two-sided fireplaces in living room and nook can also be enjoyed from patio and game room. A porte-cochere links the interior to a patio and a garage complex that can shelter six cars

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 99'

Height : 34'

Width : 158' 4"

Area

Bonus: 1573 sq/ft height 10'

First Floor: 4079 sq/ft height 10'

Garage: 2126 sq/ft height 10'

Second Floor: 945 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 10:12

Roof Framing : 2x6

Roof Load : 25

Roof Type : Truss

Exterior Wall Framing

Exterior Wall Finish : Stone/Shingle/Batt&Board

Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Master Sitting Area

Play Flex Room

Storage Area

Wet Bar

Wine Cellar

Garage Features

Carport Porte Cochere

Oversized Garage

Rear Garage

Side Entry Garage

Split Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Unusual Shape

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing

Structural 1st Floor Framing

Structural Roof Framing

Rooms

Bedroom 2:

189 sq/ft width 14' x depth 13' 6"

Bedroom 3:

233 sq/ft width 17' 6" x depth 13' 4"

Den:

242 sq/ft width 16' x depth 15' 2"

Exercise Room:

144 sq/ft width 12' x depth 12'

Game Room:

483 sq/ft width 20' x depth 24' 2"

Garage:

927 sq/ft width 23' x depth 40' 4"

Garage:

345 sq/ft width 15' x depth 23'

Garage Two:

548 sq/ft width 25' 6" x depth 21' 6"

Living Room:

710 sq/ft width 26' x depth 27' 4"

Loft:

155 sq/ft width 11' 10" x depth 13' 2"

Master Bedroom:

242 sq/ft width 15' x depth 16' 2"

Nook:

198 sq/ft width 16' 6" x depth 12'

What's Included In This Plan Set

See a sample plan set

Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.

Questions? Call 1-800-528-8070

Plan Set

PDF Print Set:
$2528.75

A non-modifiable, print only PDF file

5 Copy and PDF Set:
$3017.50

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Master Set:
$5100.00

An unlocked, modifiable PDF file

CAD Set:
$5631.25

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Master Builder Package:
$6162.50

Includes CAD Set, PDF Masters and Unlimited Build License

Study Set:
$2018.75

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement:
$816.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Wood 2x4:
$709.75

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$488.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$76.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$2018.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$420.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
