PLAN 1084-2

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

4434
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

4
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$420.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
NOW $1146.65
You save $202.35 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 1084-2

Plan Description


Modern Ranch style home built on a full basement with lots of open space and storage, including a cold storage area.

Full Specs & Features


Dimension

Depth : 64'

Height : 22'

Width : 99' 6"

Area

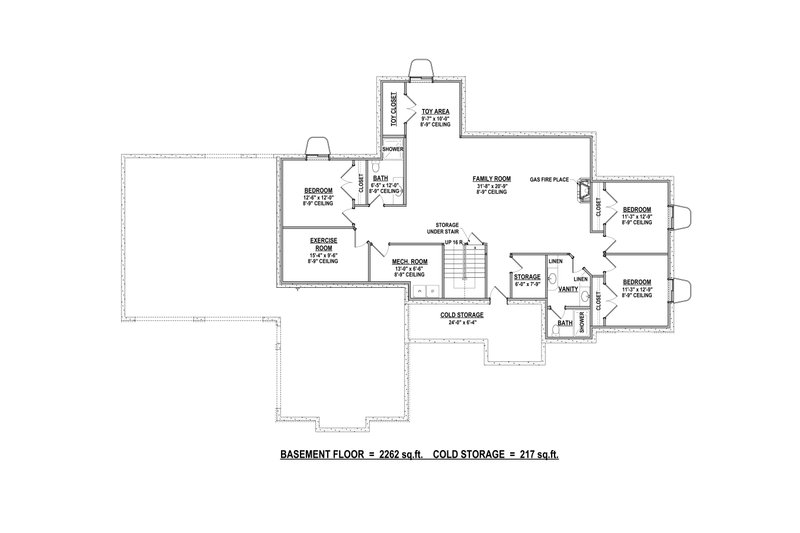

Basement : 2262 sq/ft

Garage : 1425 sq/ft

Main Floor : 2272 sq/ft

Patios : 322 sq/ft

Porch : 208 sq/ft

Storage : 217 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 12ft ceiling in Great Room & Tray Ceiling in Master

Garage Ceiling : 12'

Lower Ceiling : 9'

Main Ceiling : 10'

Roof

Primary Pitch : 8/12

Roof Framing : Pre-engineered Truss

Roof Load : Per Local Requirements

Secondary Pitch : 7/12

Exterior Wall Framing

Exterior Wall Finish : Per Owner/Builder

Framing : 2x6 Exterior Wall Frame

Insulation : Per Local Code Requirements

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Exercise Room

Great Room Living Room

Main Floor Laundry

Storage Area

Garage Features

Front Entry Garage

Rear Garage

Split Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

What's Included


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

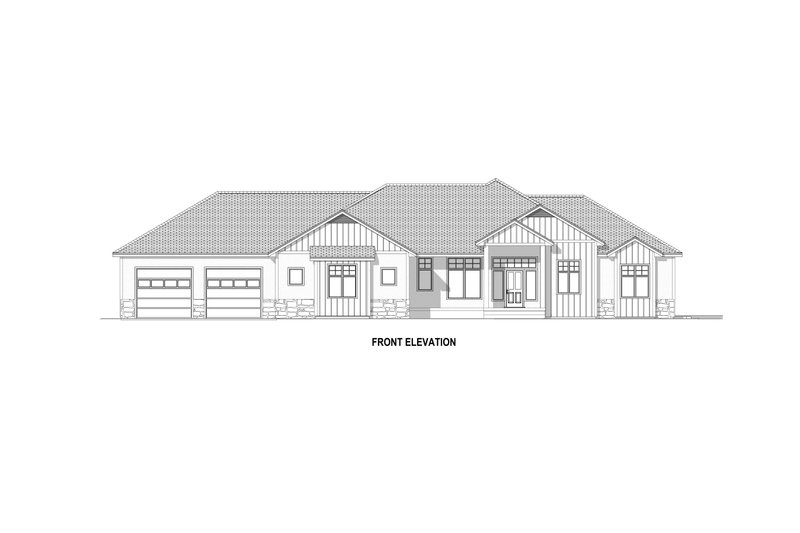

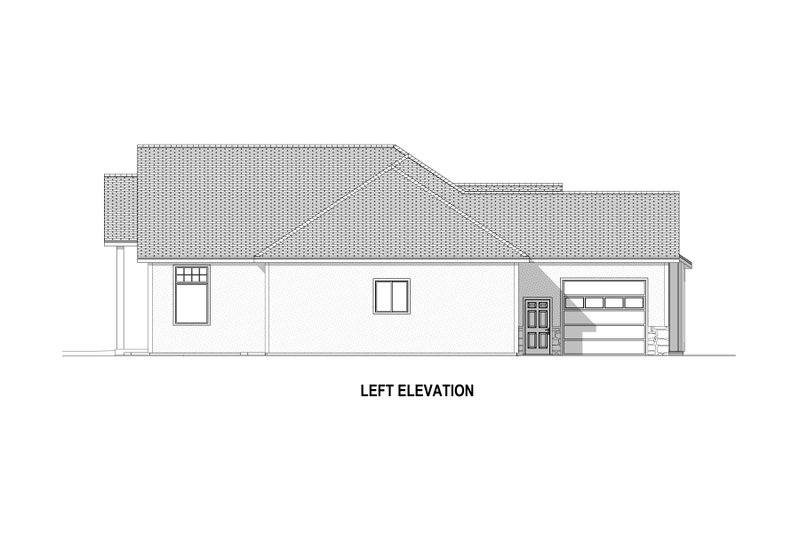

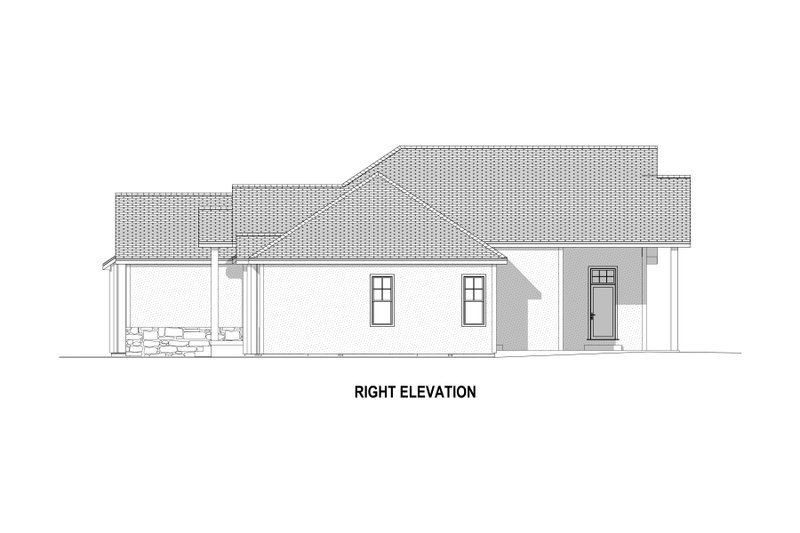

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

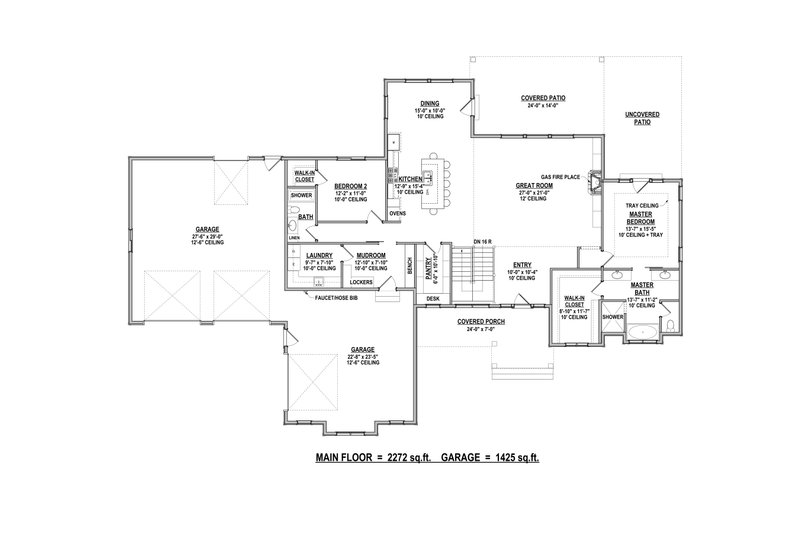

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

5 Copy Set:
$1146.65
5 printed plan sets mailed to you.
PDF Set:
$1146.65
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1359.15
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Concrete Masonry Unit and Wood 2x6:
$0.00
CMU on Main Floor and Wood 2x6 Upper level(s)

Additional Options

Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$420.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
