PLAN #928-69

Key Specs


3641
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description

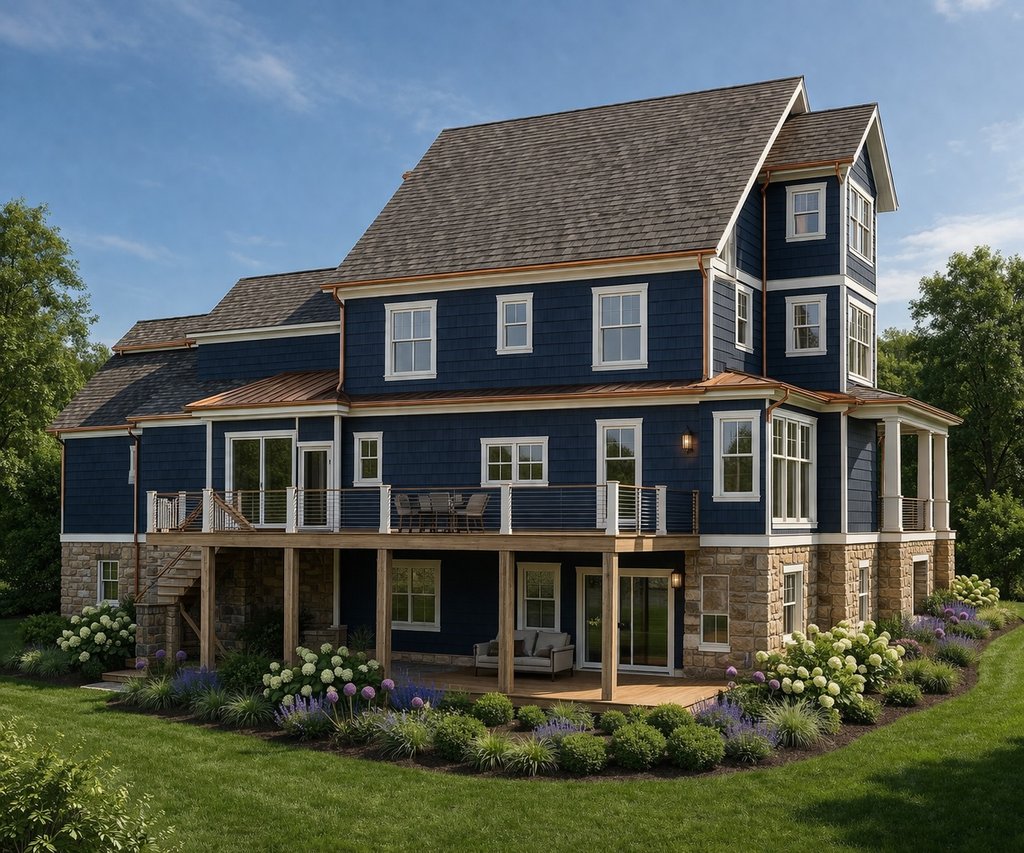

Inspired by charming designs of the past, this up-to-date Visbeen Architects home incorporates the casual design trends of the present. The home includes a music room off the first-floor living room and a large covered deck. Upstairs are five bedrooms (including the sunny master suite), a loft, and the third-floor bonus room; the lower level can be finished to include a family room, billiards area, and private guest bedroom. Details found throughout recall the craftsmanship of another era.

Floor Plans


Floor Plan - Lower Floor Plan
Victorian Floor Plan - Lower Floor Plan Plan #928-69
Floor Plan - Main Floor Plan
Victorian Floor Plan - Main Floor Plan Plan #928-69
Floor Plan - Upper Floor Plan
Victorian Floor Plan - Upper Floor Plan Plan #928-69
Floor Plan - Other Floor Plan
Victorian Floor Plan - Other Floor Plan Plan #928-69

Full Specs & Features


Dimension
Depth : 50'
Height : 41' 6"
Width : 74'
Area
Basement Unfinished: 1187 sq/ft height 9'
Bonus: 484 sq/ft height 8'
First Floor: 1556 sq/ft height 11'
Second Floor: 2085 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 10:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Workshop
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch
Wrap Around Porch
Deck
Rooms

Bedroom 2:

186 sq/ft width 14' 3" x depth 13' 1"

Bedroom 3:

123 sq/ft width 12' x depth 10' 3"

Bedroom 4:

104 sq/ft width 10' 2" x depth 10' 3"

Bedroom 5:

176 sq/ft width 13' 1" x depth 13' 6"

Bonus Room - Finished:

404 sq/ft width 30' 2" x depth 13' 5"

Den:

127 sq/ft width 11' 1" x depth 11' 6"

Dining Room:

181 sq/ft width 13' 5" x depth 13' 6"

Family Room:

356 sq/ft width 24' 7" x depth 14' 6"

Garage:

1103 sq/ft width 35' 6" x depth 31' 1"

Guest Bedroom:

287 sq/ft width 15' 1" x depth 19' 1"

Kitchen:

190 sq/ft width 14' 1" x depth 13' 6"

Living Room:

287 sq/ft width 19' 1" x depth 15' 1"

Master Bedroom:

259 sq/ft width 19' 3" x depth 13' 6"

Music Room:

145 sq/ft width 13' 1" x depth 11' 1"

Porch - Screened:

162 sq/ft width 12' x depth 13' 6"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
$1795.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3595.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Right-Reading Reverse :
175.50
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
