PLAN #46-406

Key Specs


3595
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Floor Plans

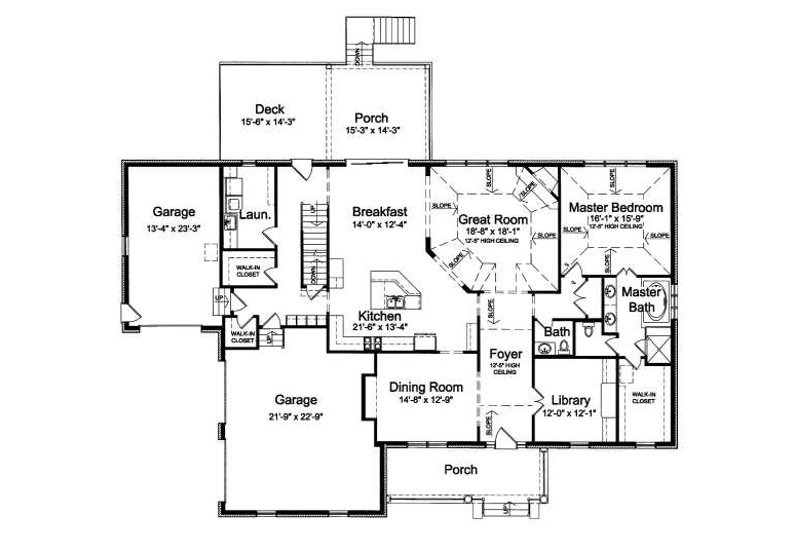

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #46-406

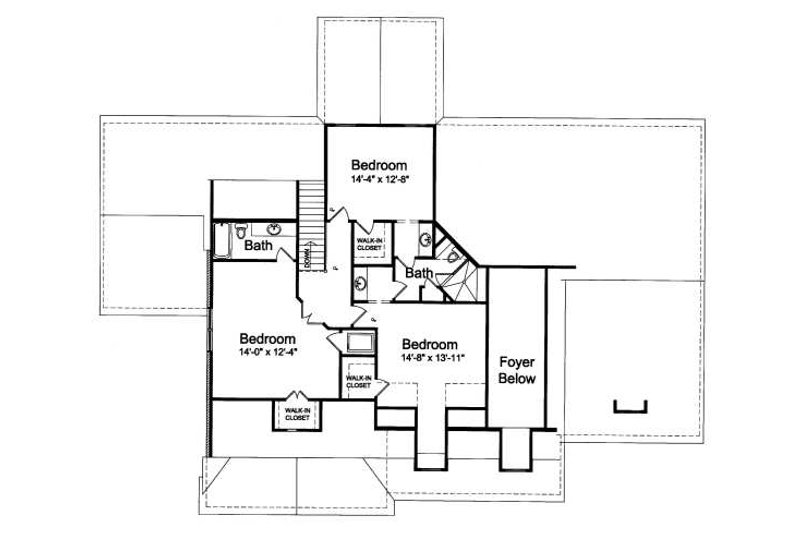

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #46-406

Full Specs & Features


Dimension
Depth : 51' 8"
Height : 32' 6"
Width : 80' 8"
Area
First Floor: 2430 sq/ft
Garage: 837 sq/ft
Second Floor: 1165 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Truss
Primary Pitch : 9:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
More
Jack & Jill Bath
Rooms

Bathroom 2:

56 sq/ft width 11' 3" x depth 5'

Bathroom 3:

128 sq/ft width 12' 3" x depth 10' 6"

Bedroom 2:

313 sq/ft width 17' 1" x depth 18' 4"

Bedroom 2 Closet:

22 sq/ft width 6' 1" x depth 3' 9"

Bedroom 3:

181 sq/ft width 14' 4" x depth 12' 8"

Bedroom 3 Closet:

28 sq/ft width 5' 1" x depth 5' 8"

Bedroom 4:

202 sq/ft width 14' 8" x depth 13' 10"

Bedroom 4 Closet:

25 sq/ft width 4' 6" x depth 5' 8"

Den:

144 sq/ft width 12' x depth 12' 1"

Dining Room:

187 sq/ft width 14' 8" x depth 12' 9"

Garage:

483 sq/ft width 21' 6" x depth 22' 6"

Garage Two:

309 sq/ft width 13' 4" x depth 23' 3"

Kitchen:

313 sq/ft width 21' 6" x depth 14' 7"

Laundry Room:

96 sq/ft width 7' 6" x depth 12' 10"

Library:

144 sq/ft width 12' x depth 12' 1"

Linen Closet:

4 sq/ft width 2' 10" x depth 1' 9"

Master Bathroom:

121 sq/ft width 9' 9" x depth 12' 6"

Master Bedroom:

253 sq/ft width 16' 1" x depth 15' 9"

Master Closet:

84 sq/ft width 7' 8" x depth 11' 1"

Pantry:

38 sq/ft width 7' 8" x depth 5' 1"

Porch - Front:

187 sq/ft width 23' 5" x depth 8'

Porch - Rear:

195 sq/ft width 15' x depth 13'

Toilet Closet:

30 sq/ft width 6' x depth 5'

Walk-In Closet:

19 sq/ft width 4' 7" x depth 4' 4"

What's Included In This Plan Set


Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

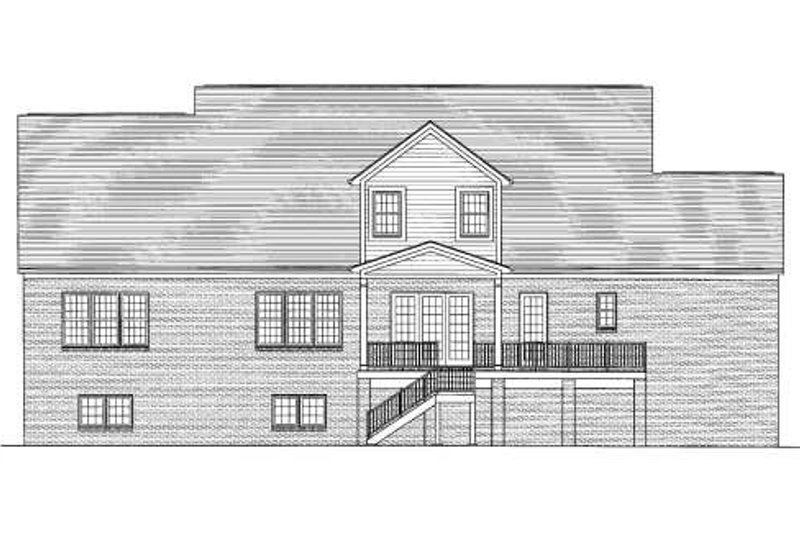

  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
» See important information before purchasing.
Plan Set
PDF Set :
$990.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$990.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set :
$1035.00
5 printed plan sets mailed to you.
8 Copy Set :
$1080.00
8 printed plan sets mailed to you.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Material List :
67.50
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
22.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
103.50
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
