PLAN 927-718
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (2)
Get Personalized Help
Key Specs
3460
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 927-718
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

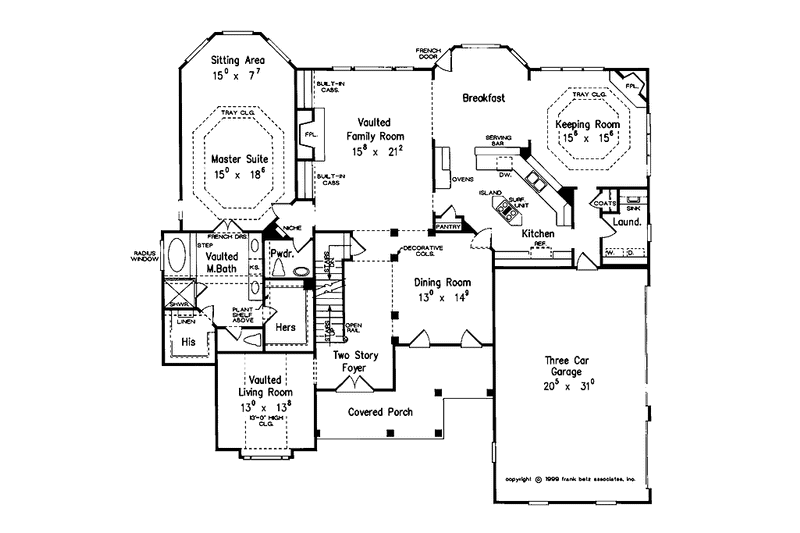

Floor Plan - Main Floor

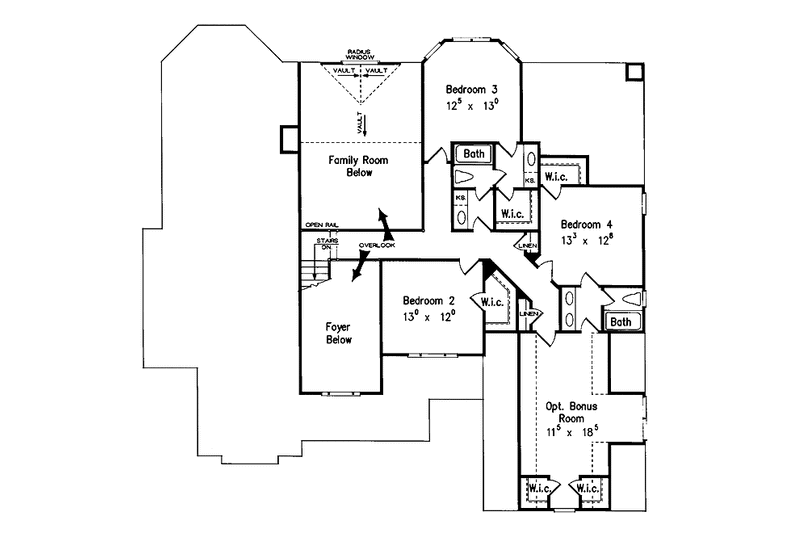

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 62' 9"
Height : 30'
Width : 65'
Area
Bonus: 307 sq/ft
First Floor: 2497 sq/ft height 9'
Second Floor: 963 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
156 sq/ft width 13' x depth 12'
Bedroom 3:
161 sq/ft width 12' 5" x depth 13'
Bedroom 4:
167 sq/ft width 13' 3" x depth 12' 8"
Bonus Room - Finished:
210 sq/ft width 11' 5" x depth 18' 5"
Breakfast Room:
165 sq/ft width 12' 6" x depth 13' 3"
Dining Room:
196 sq/ft width 13' 3" x depth 14' 10"
Family Room:
331 sq/ft width 15' 8" x depth 21' 2"
Foyer:
174 sq/ft width 10' 3" x depth 17'
Garage:
663 sq/ft width 21' 5" x depth 31'
Keeping Room:
240 sq/ft width 15' 6" x depth 15' 6"
Kitchen:
287 sq/ft width 18' 2" x depth 15' 10"
Laundry Room:
60 sq/ft width 6' x depth 10'
Living Room:
177 sq/ft width 13' x depth 13' 8"
Master Bathroom:
164 sq/ft width 13' 2" x depth 12' 6"
Master Bedroom:
277 sq/ft width 15' x depth 18' 6"
Master Closet:
61 sq/ft width 6' 6" x depth 9' 6"
Master Closet Two:
47 sq/ft width 6' 8" x depth 7' 2"
Master Sitting Room:
113 sq/ft width 15' x depth 7' 7"
