PLAN 417-743
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (4)
Get Personalized Help
Key Specs
3454
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2025 (limit 1)
with Code CTB2025 (limit 1)
This report will provide you cost estimates based on location and building materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 417-743
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
An abundance of muntin windows and a shingle facade are the defining
characteristics of this design. Inside, the dining room is graced with French
doors to the covered front porch. A home office flanks the foyer on the right.
The master bedroom boasts a full bath, His and Hers walk-in closets and
French-door access to the rear covered porch. The grand room flows into the
nook and kitchen. The second level holds two family bedrooms that share a
lavish walk-through bath. A large future bonus room and a loft complete this
level. The third floor houses a spacious attic/storage room.
Floor Plans

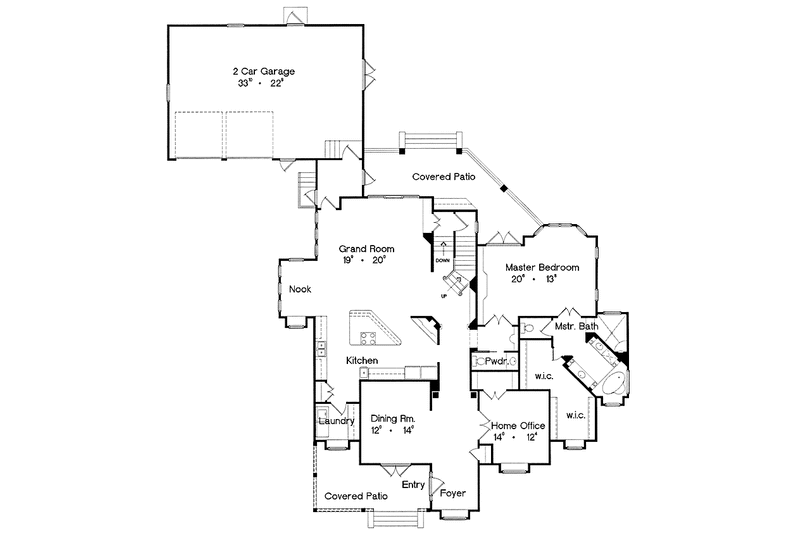

Floor Plan - Main Floor

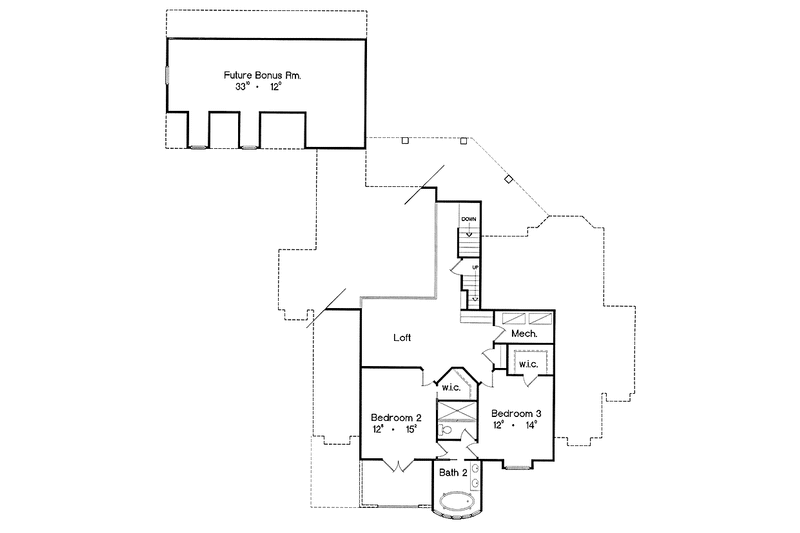

Floor Plan - Upper Floor
Floor Plan - Other Floor

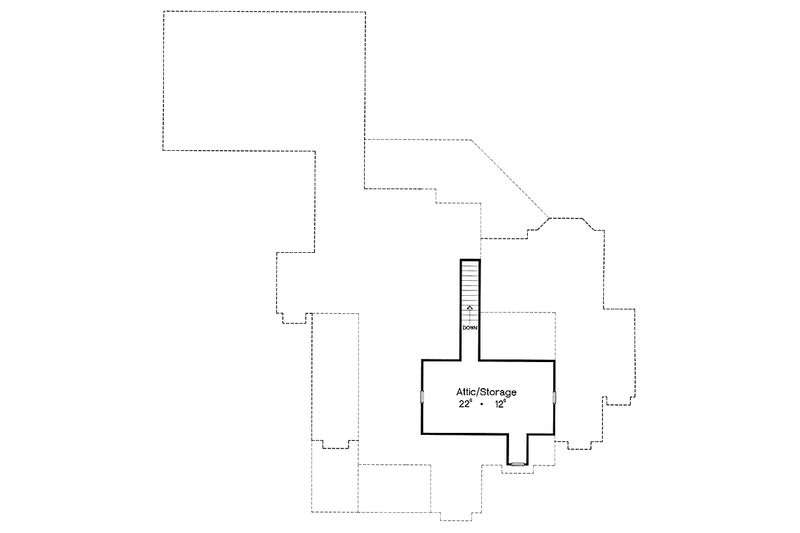

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 85' 6"
Height : 30'
Width : 80' 6"
Area
Bonus: 549 sq/ft
First Floor: 2376 sq/ft height 10'
Second Floor: 1078 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Workshop
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$1160.00
$1160.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1320.00
$1320.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1440.00
$1440.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$2320.00
$2320.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$640.00
$640.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Additional Construction Sets:
$40.00
$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$80.00
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$160.00
$160.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$24.00
$24.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
