Plan Description

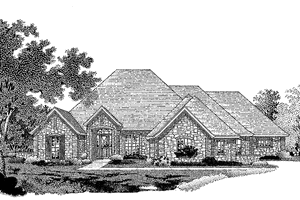

Keystone arches over multi-pane and sunburst windows add modern elegance to
this stone chateau-style home. In the living areas, hardwood floors are a
beautiful way to bring natural warmth to these spaces. The skylit bowed kitchen
easily serves the bright bayed breakfast nook and the formal dining room. The
family room impresses with a cathedral ceiling and a stone fireplace that
echoes the facade. The study features a fireplace and built-in shelves. Two
bedrooms are placed to the far right of the plan. On the far left, the master
bedroom will delight with a skylit bath, whirlpool tub and His and Hers walk-in
closets. An additional bedroom near the master suite could serve as a nursery
or home office.
Full Specs & Features
Dimension
Depth: 82' 9"
Height: 32'
Width: 84'
Area
First Floor: 3403 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch: 12:12
Roof Framing: Conventional
Roof Type: Shingle
Exterior Wall Framing
Exterior Wall Finish: Stone
Framing: Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Open Floor Plan
Rooms
Bedroom 2:
156 sq/ft width 12' 3" x depth 12' 9"
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 4:
171 sq/ft width 12' x depth 14' 3"
Breakfast Room:
146 sq/ft width 13' x depth 11' 3"
Dining Room:
169 sq/ft width 13' x depth 13'
Family Room:
394 sq/ft width 19' x depth 20' 9"
Kitchen:
178 sq/ft width 13' x depth 13' 9"
Living Room:
238 sq/ft width 14' x depth 17'
Master Bedroom:
325 sq/ft width 16' 3" x depth 20'
Study:
182 sq/ft width 14' x depth 13'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Showing architectural rendering of residence
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
