PLAN 27-507

Home > Style > Mediterranean Home Plans

Key Specs

3154
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 3154 sq ft and has 2 bedrooms and 2 bathrooms.

Floor Plans

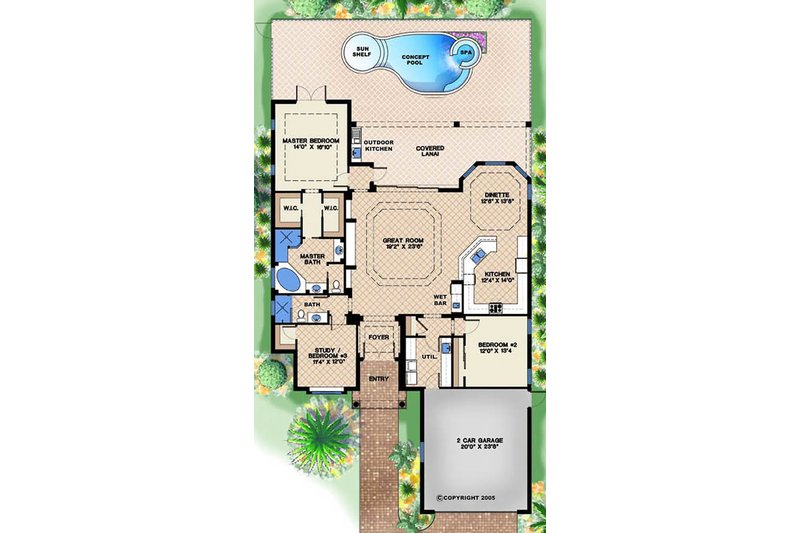

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth: 79' 6"

Height: 22' 9"

Width: 50'

Area

Garage: 512 sq/ft

Main Floor: 2203 sq/ft

Patios: 363 sq/ft

Porch: 76 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details: flat, double coffer, coffered

Main Ceiling: 10'

Roof

Primary Pitch: 6:12

Roof Framing: Manufactured Trusses

Roof Type: Cement Tile

Exterior Wall Framing

Framing: CMU

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Butler's Pantry

Eating Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Storage Area

Sunroom

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Rear Porch

Outdoor Kitchen Grill

Screened Porch

Wheelchair Adaptable

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.

Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
