PLAN 27-473

Home > Style > Mediterranean Home Plans

Key Specs

10662
sq ft

4
Beds

7
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Imagine this Mediterranean jewel, graced by five acres of a richly vegetated estate while overlooking an expansive lake view. It's sure to be the talk of the town with its rich finishes of stone banding and columns, natural wood doors and course timbers for the trellis. The dramatic appeal and inspiring design of this house plan create anticipation for its contents and what surprises it holds.

Floor Plans

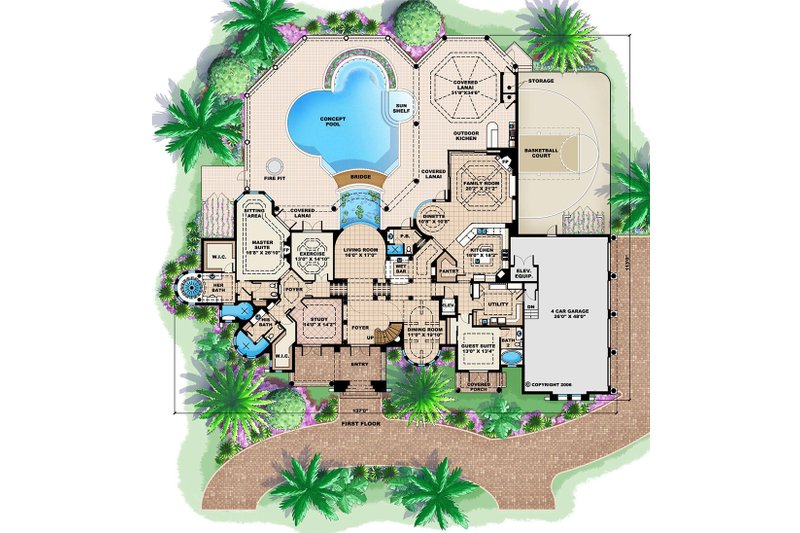

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

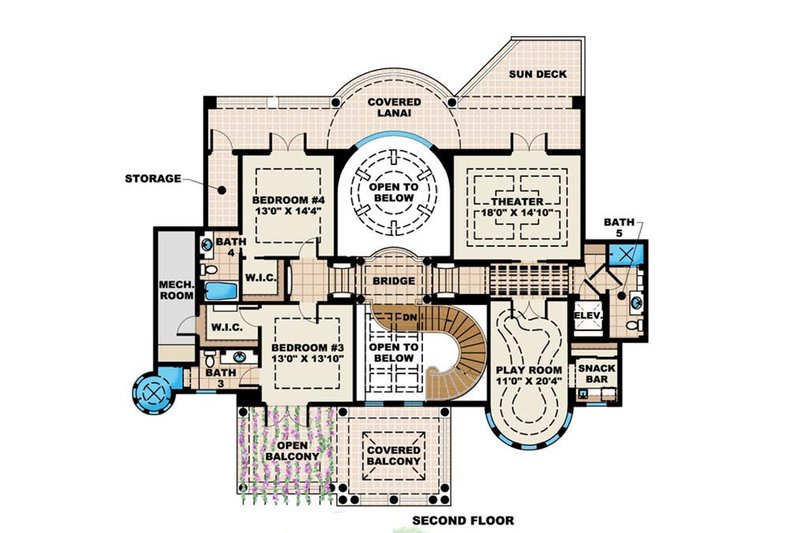

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth: 113'

Height: 38'

Width: 137'

Area

Garage: 1505 sq/ft

Main Floor: 4611 sq/ft

Patios: 2008 sq/ft

Porch: 224 sq/ft

Upper Floor: 1684 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details: Dome, vaulte, coffer, double coffer

Main Ceiling: 11'

Upper Ceiling Ft: 32' 8"

Roof

Primary Pitch: 6:12

Roof Framing: Manufactured Trusses

Roof Type: Cement Tile

Exterior Wall Framing

Exterior Wall Finish: Stucco, precast stone

Framing: CMU, 2x6 wood

Bedroom Features

Guest Suite

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Master Sitting Area

Play Flex Room

Storage Area

Wet Bar

Workshop

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Jack & Jill Bath

Suited For Vacation Home

Wheelchair Adaptable

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.

Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$6500.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$7000.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
