PLAN 17-2564
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (2)
Get Personalized Help
Key Specs
2902
sq ft
6
Beds
4
Baths
2
Floors
0
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTB2026
Use Code CTB2026
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-2564
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This multi-family home features a large covered front porch and a breezeway. The den welcomes you with a stone fireplace. The kitchen and dining room are open to the den and kitchen features an eat-at bar. The master bedroom has a full bath and a convenient nearby stackable washer/dryer. Upstairs are spacious bedrooms 2 and 3 that share a bedroom.
Floor Plans

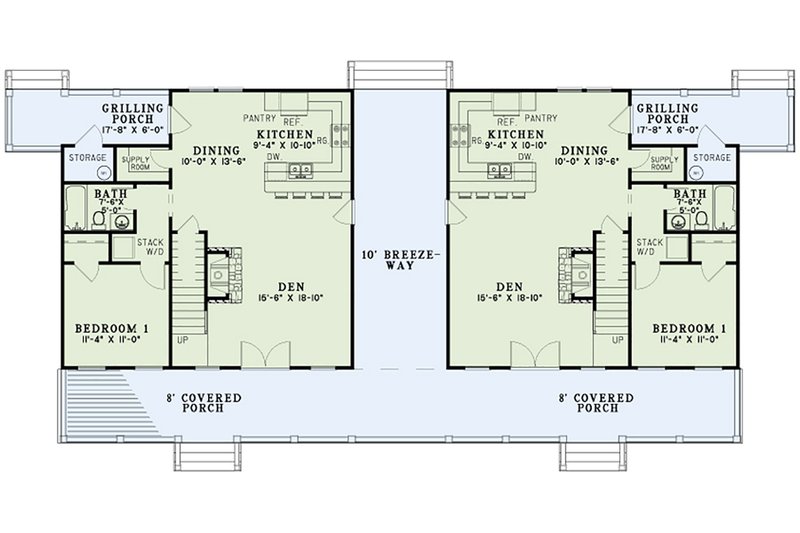

Floor Plan - Main Floor

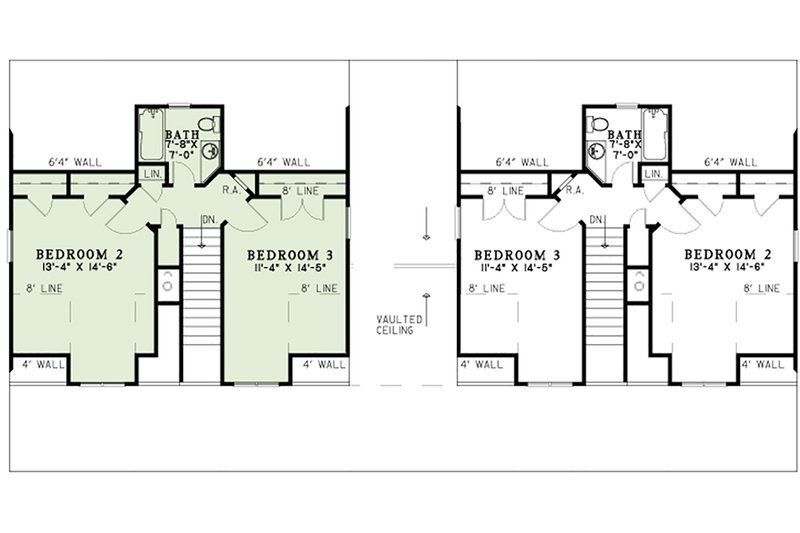

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 38' 4"
Height: 21'
Width: 85' 4"
Area
First Floor: 868 sq/ft height 8'
Second Floor: 583 sq/ft height 8'
Second Floor: 583 sq/ft height 8'
SubBasement Living: 868 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling: 8'
Upper Ceiling Ft: 8'
Roof
Primary Pitch: 9:12
Roof Framing: Stick
Roof Type: metal
Exterior Wall Framing
Exterior Wall Finish: Siding
Framing: 2"x4"
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Wet Bar
Outdoor Spaces
Breezeway
Covered Front Porch
Rooms
Covered Rear Porch B:
112 sq/ft
Covered Rear Porch A:
112 sq/ft
